Installation

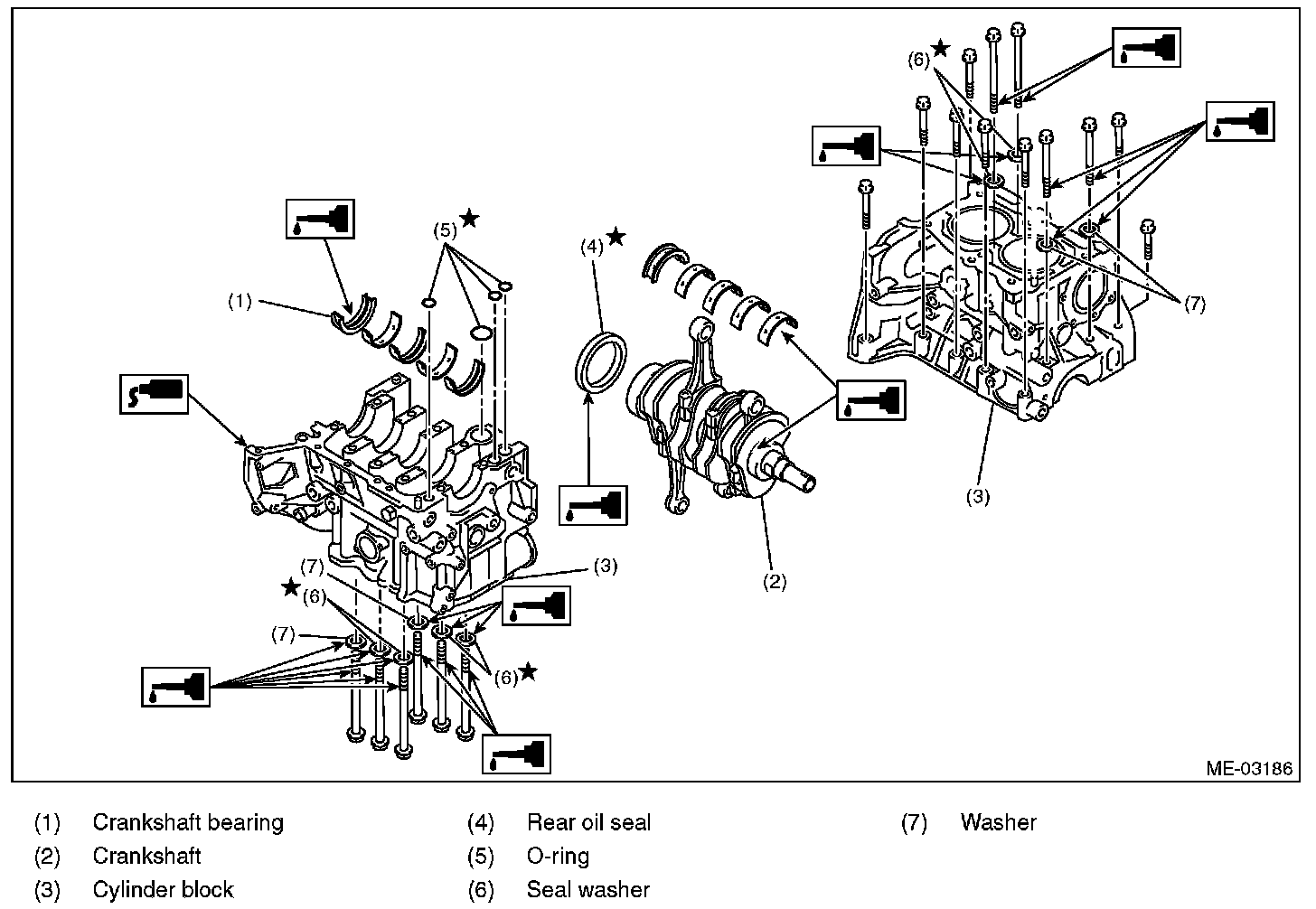

Cylinder BlockCylinder Block Components (Part 1):

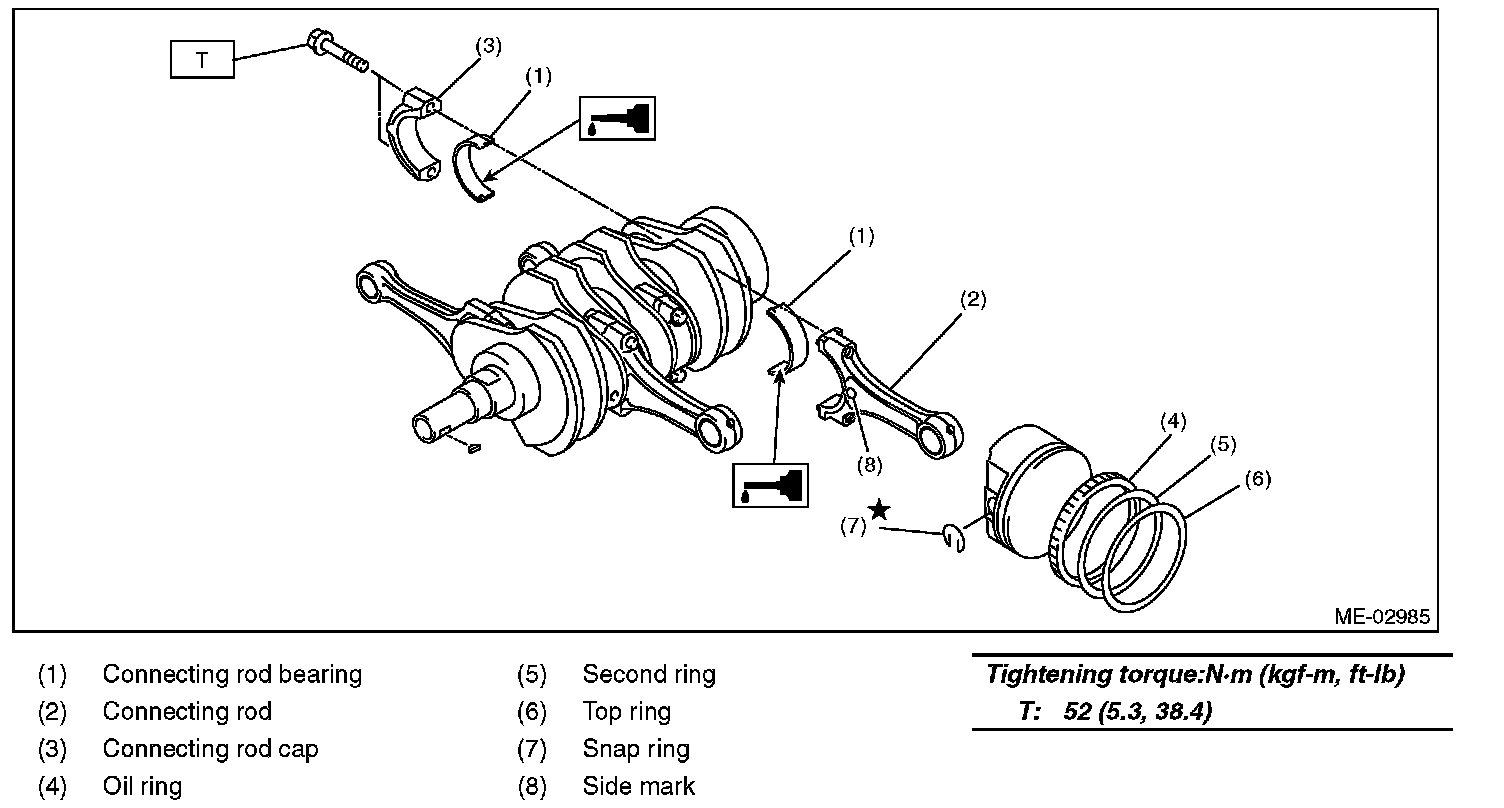

Cylinder Block Components (Part 2):
INSTALLATION
1) Remove oil on the mating surface of cylinder block before installation. Apply a coat of engine oil to the bearing and crankshaft journal.
2) Position the crankshaft and O-ring on cylinder block RH.
NOTE:
Use new O-rings.

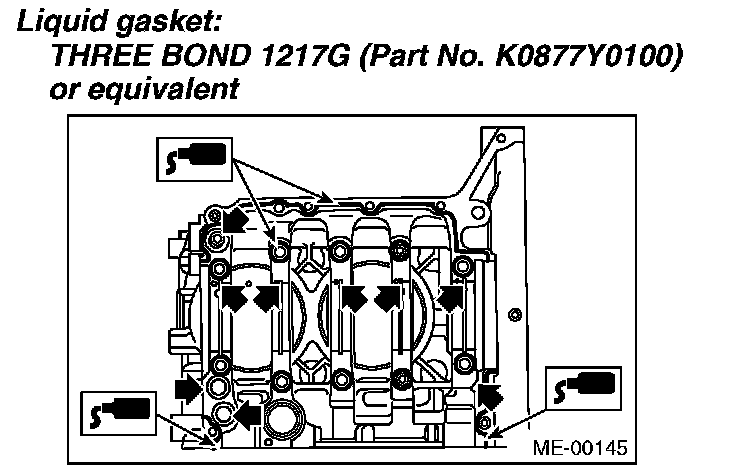

3) Apply liquid gasket to the mating surfaces of cylinder block RH and position cylinder block LH.
NOTE:
^ Install within 5 min. after applying liquid gasket.
^ Do not allow liquid gasket to jut into O-ring grooves, oil passages, bearing grooves, etc.
Liquid gasket:
THREE BOND 1217G (Part No. K0877Y0100) or equivalent
4) Apply a coat of engine oil to the washer and bolt thread.
NOTE:
Use a new seal washer.

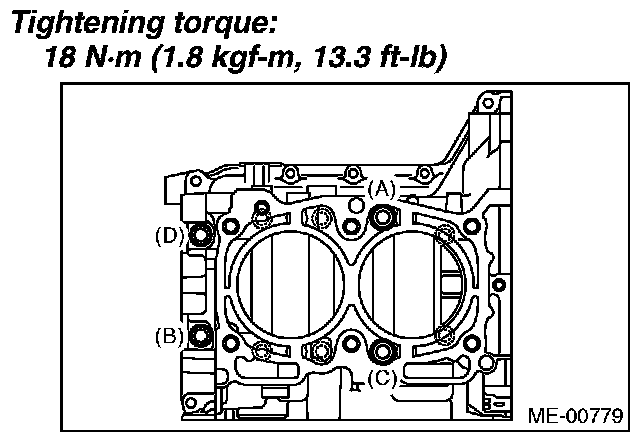

5) Tighten the 10 mm cylinder block connecting bolts on the LH side (A - D) in alphabetical order.

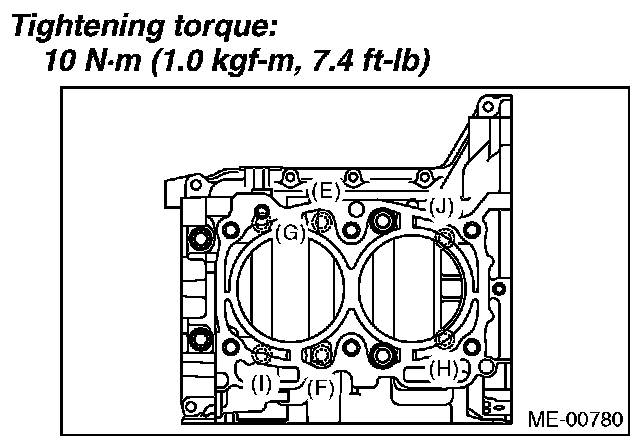

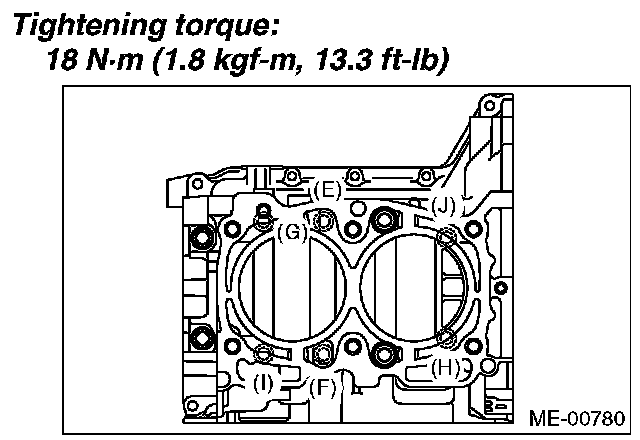

6) Tighten the 10 mm cylinder block connecting bolts on RH side (E - J) in alphabetical sequence.
7) Tighten the LH side cylinder block connecting bolts (A - D) further in alphabetical order.

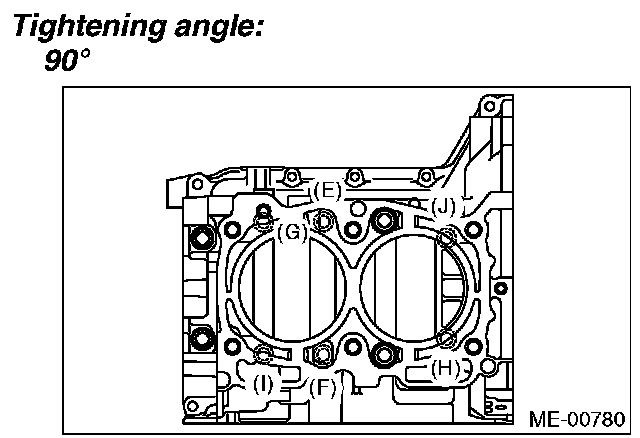

8) Tighten the RH side cylinder block connecting bolts (E - J) further in alphabetical order.

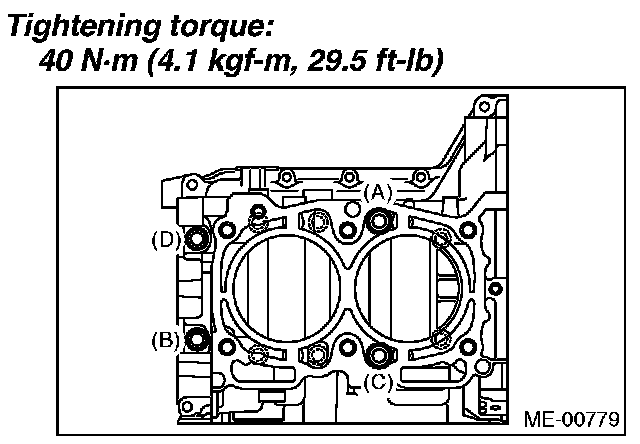

9) Tighten the LH side cylinder block connecting bolts (A - D) further in alphabetical order.
^ (A), (C): Angle tightening
Tightening angle:
90 degrees
^ (B), (D): Torque tightening
10) Tighten the RH side cylinder block connecting bolts (E - J) further in alphabetical order.
11) Tighten the 8 mm and 6 mm cylinder block connecting bolts on the LH side (A - H) in alphabetical order.

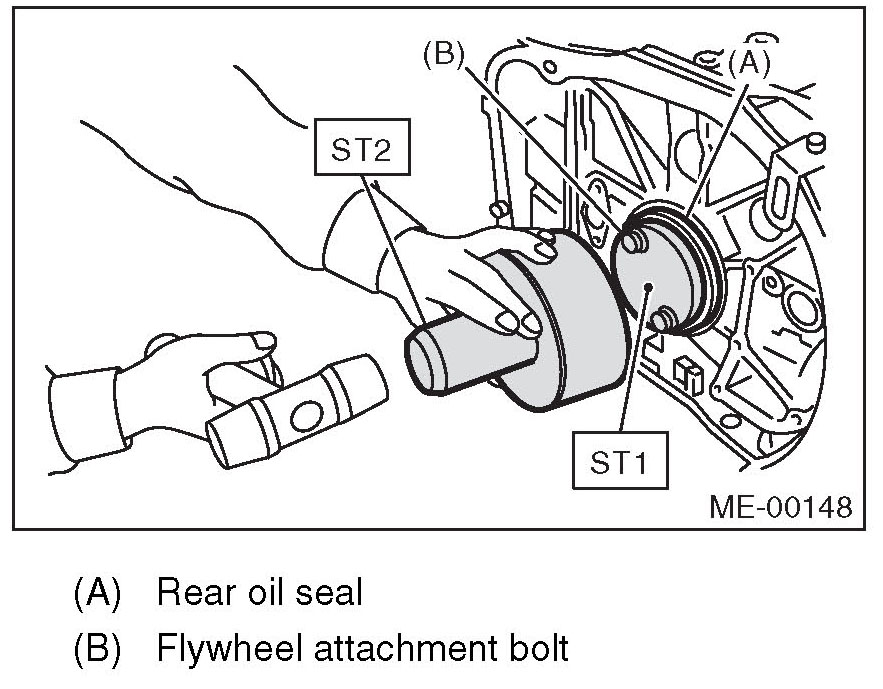

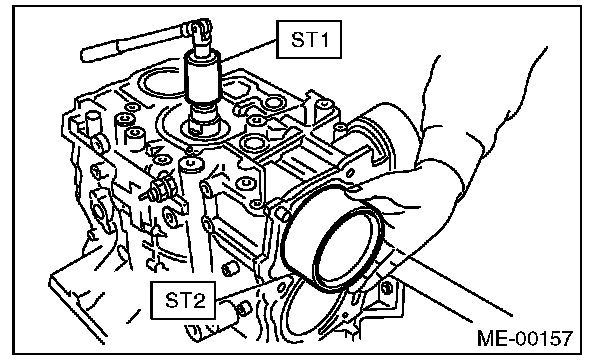

12) Apply a coat of engine oil to the oil seal periphery and install the rear oil seal using ST1 and ST2.
NOTE:
Use a new rear oil seal.
ST1 499597100 CRANKSHAFT OIL SEAL GUIDE
ST2 499587200 CRANKSHAFT OIL SEAL INSTALLER

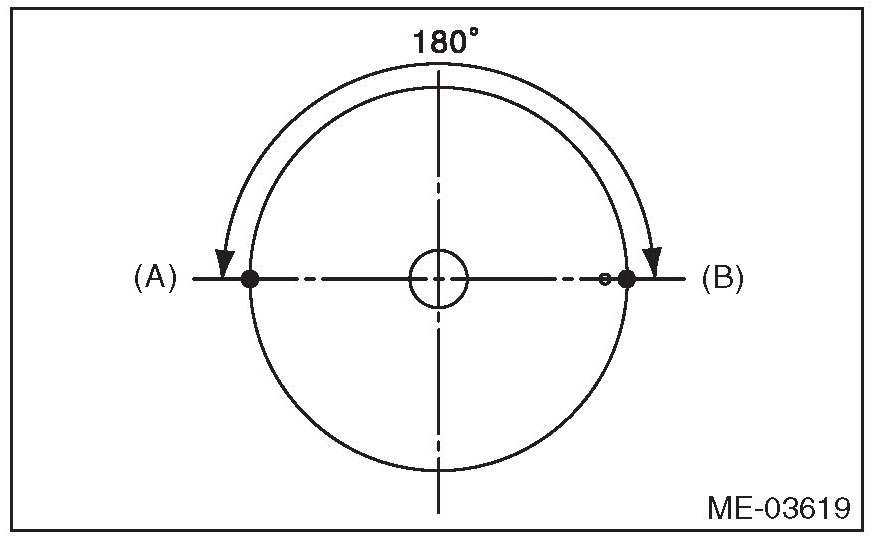

13) Position the top ring gap at (A) or (B) in the figure.
14) Position the second ring gap at 180 degrees on the reverse side the top ring gap.

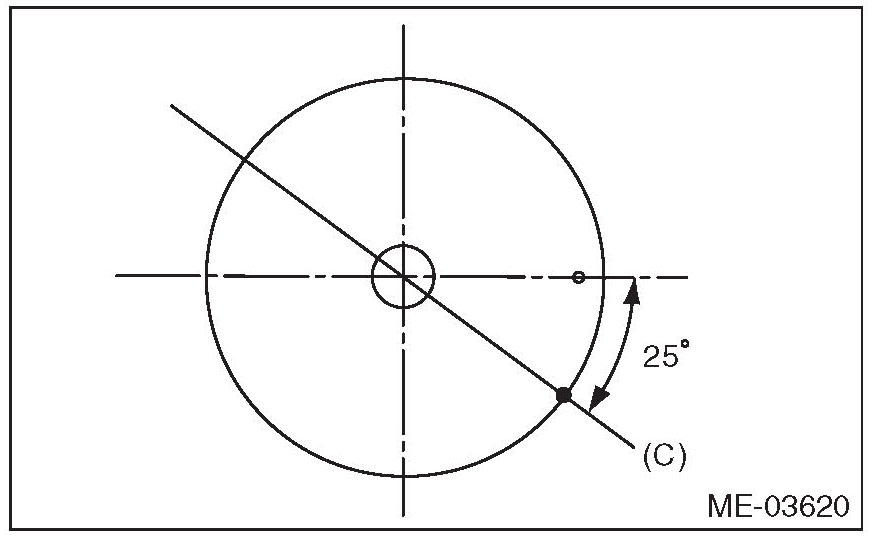

15) Position the upper rail gap at (C) in the figure.

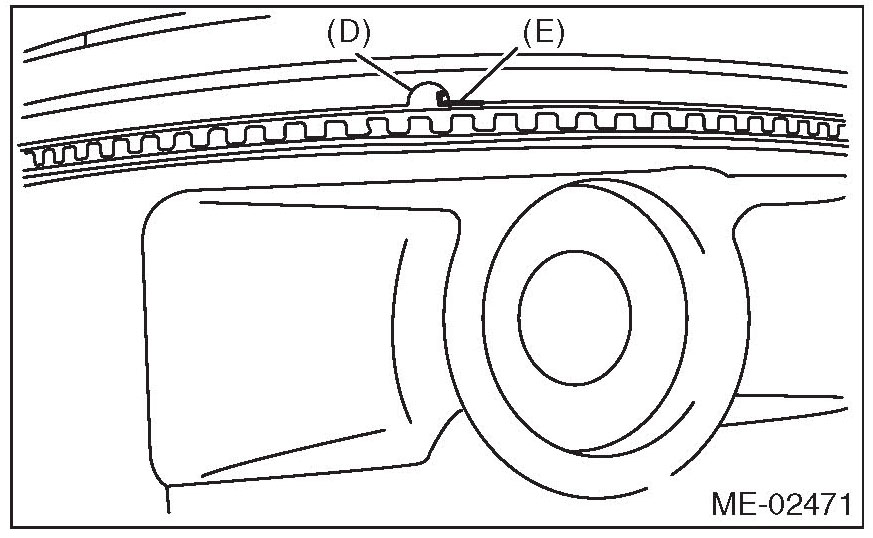

16) Align the upper rail spin stopper (E) to the side hole (D) on the piston.

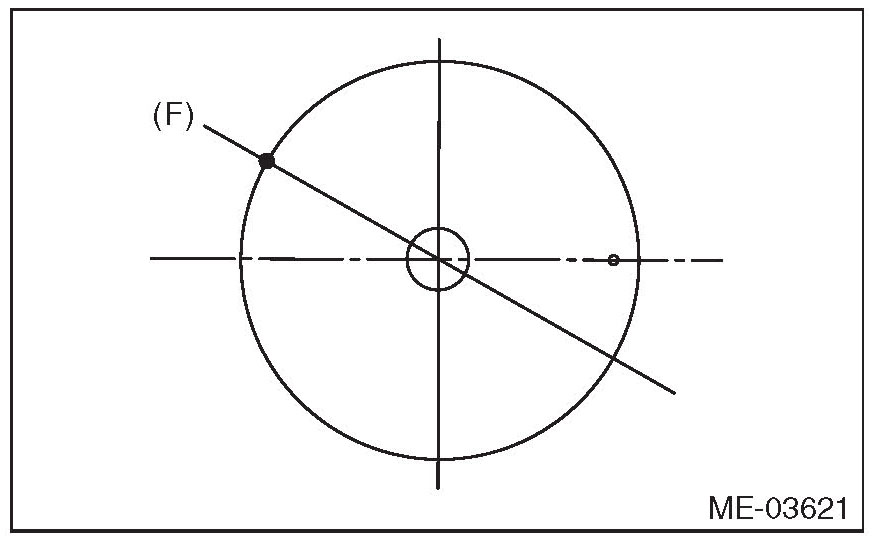

17) Position the expander gap at (F) in the figure on the 180 degrees opposite direction of (C).

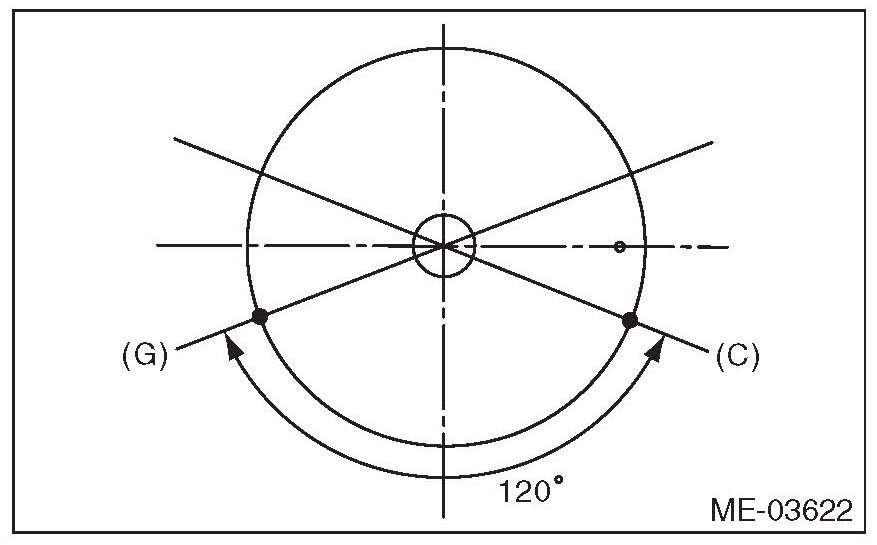

18) Set the lower rail gap at position (G), located 120 degrees clockwise from (C).
NOTE:
^ Make sure ring gaps do not face the same direction.
^ Make sure ring gaps are not within the piston skirt area.

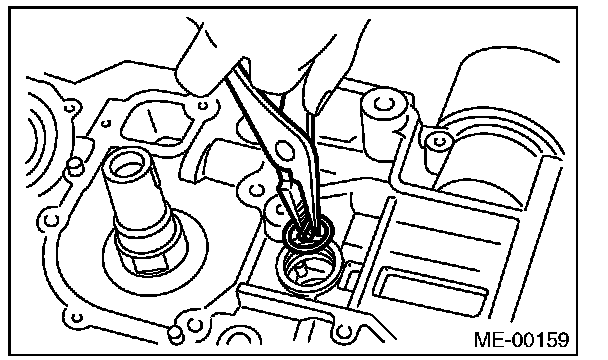

19) Install the snap ring. Before positioning the piston on the cylinder block, attach the snap ring in the service hole of the cylinder block and the piston hole on the opposite side.
NOTE:
Use new snap rings.

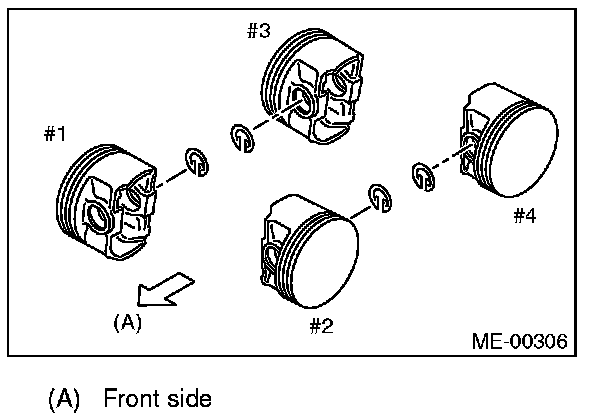

20) Install the piston.
1) Set the parts so that the #1 and #2 cylinders are on the upper side.
2) Using the ST1, turn the crankshaft so that #1 and #2 connecting rods are set at bottom dead center.
ST1 499987500 CRANKSHAFT SOCKET
3) Apply a coat of engine oil to the pistons and cylinders and insert pistons in their cylinders using ST2.
ST2 498747300 PISTON GUIDE
NOTE:

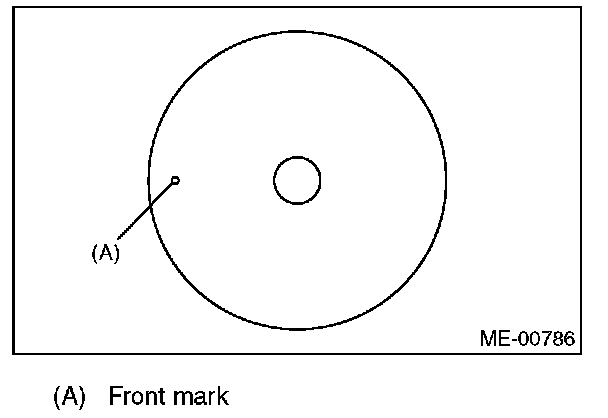

Face the piston front mark towards the front of the engine.

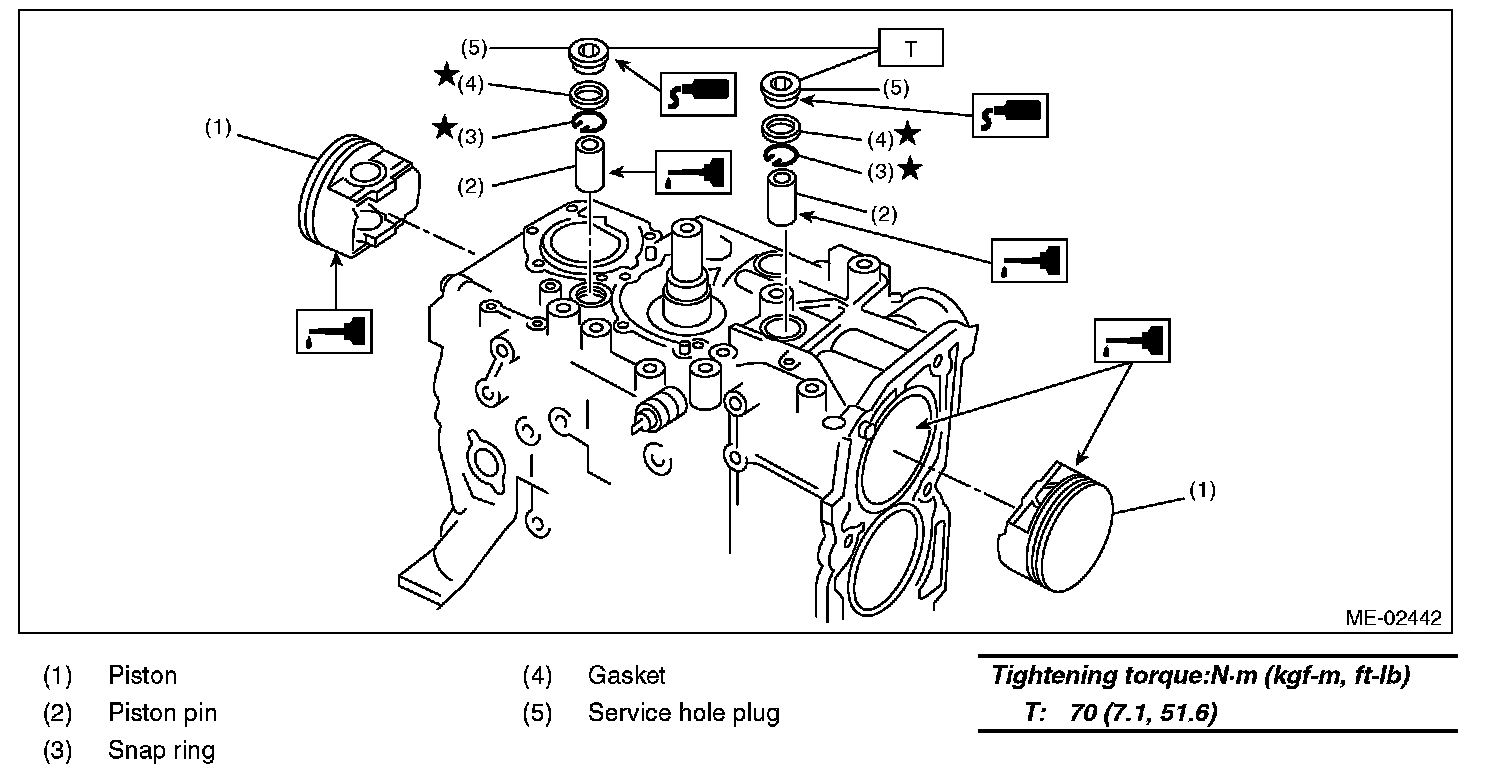

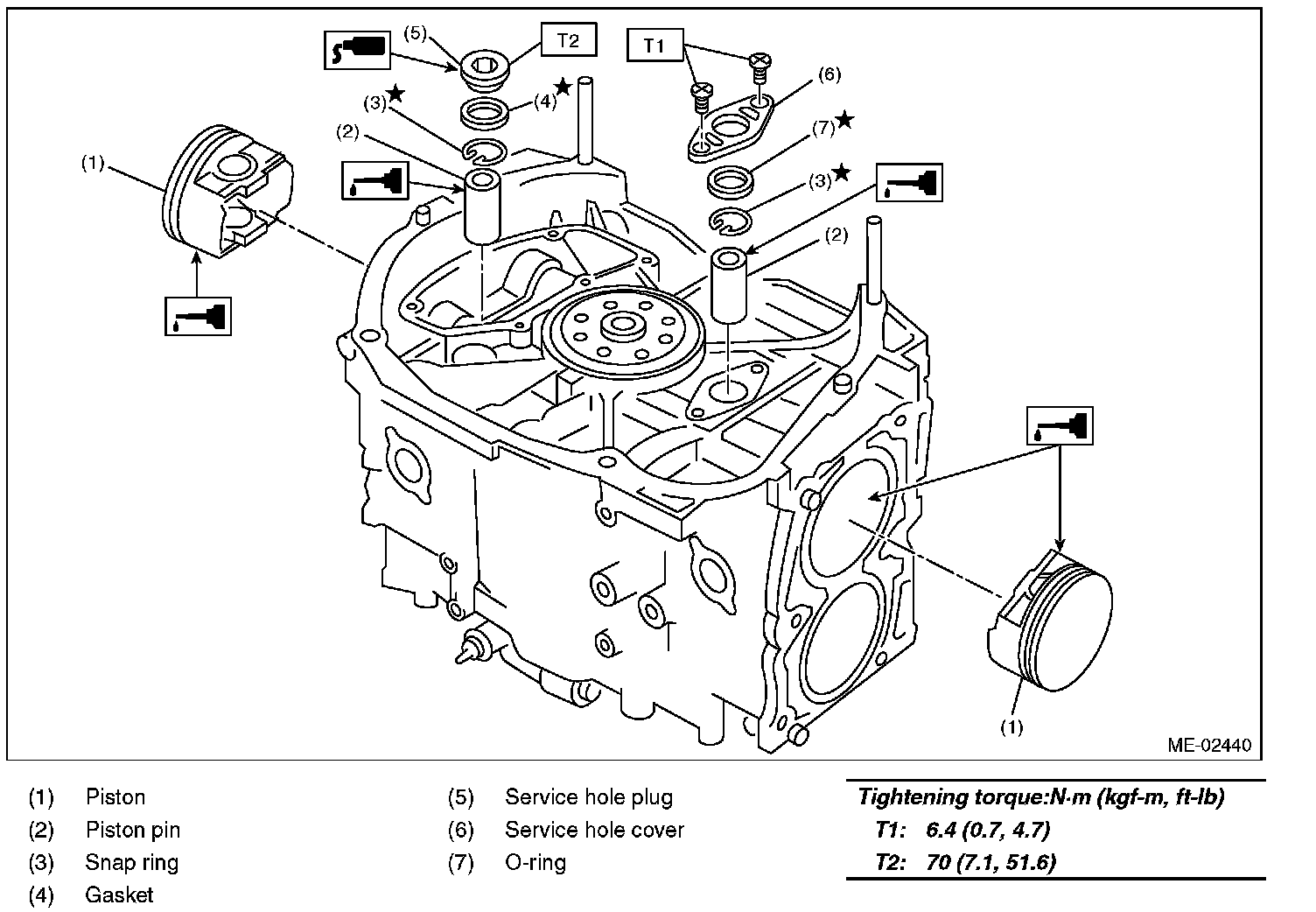

21) Install the piston pin.
1) Apply a thin coat of engine oil to ST3.

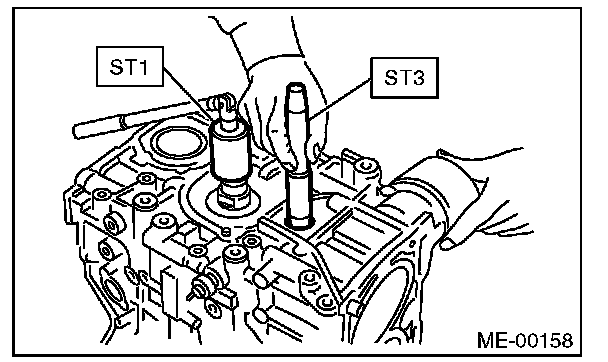

2) Insert ST3 into the service hole to align the piston pin hole and the connecting rod small end.
ST3 499017100 PISTON PIN GUIDE
3) Apply a thin coat of engine oil to piston pin, and insert the piston pin into piston and connecting rod through service hole.
4) Install the snap ring.
NOTE:
Use new snap rings.

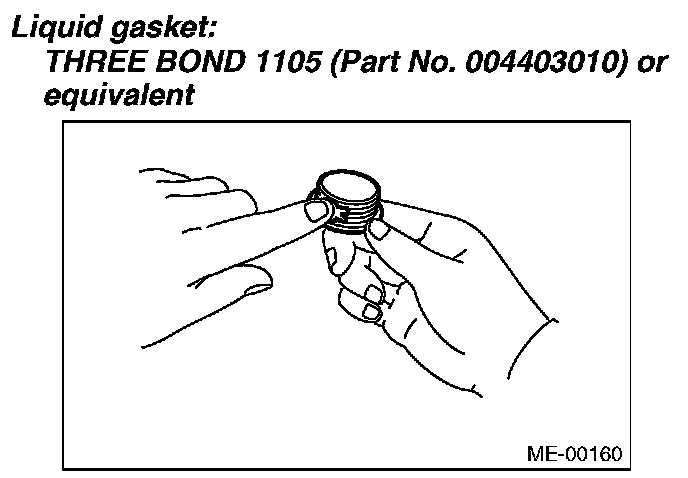

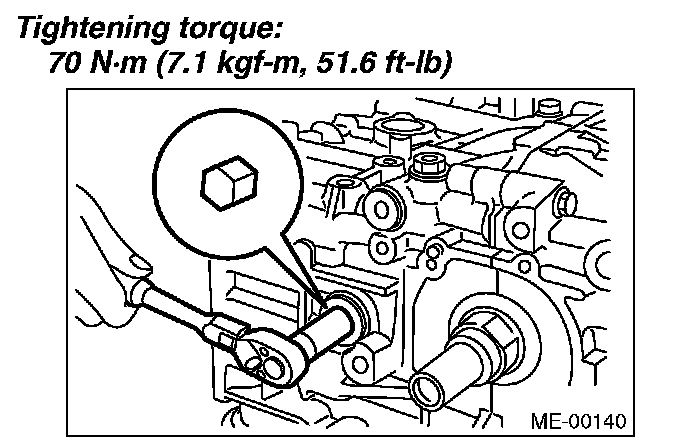

5) Apply liquid gasket to the threaded portion of the service hole plug.
Liquid gasket:
THREE BOND 1105 (Part No. 004403010) or equivalent
6) Install the service hole plug and gasket.
NOTE:
Use a new gasket.
7) Set the parts so that the #3 and #4 cylinders are on the upper side. Following the same procedures as used for #1 and #2 cylinders, install the pistons and piston pins.

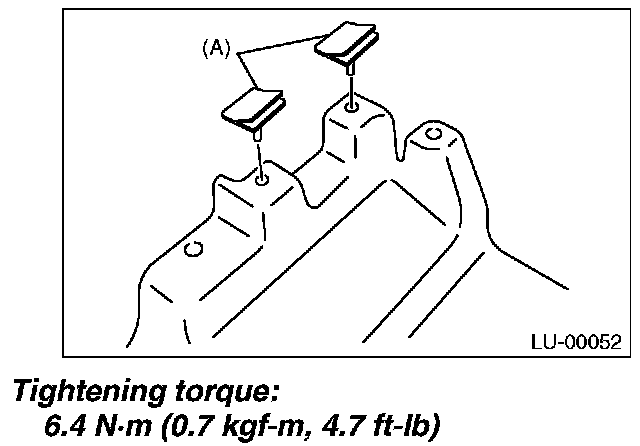

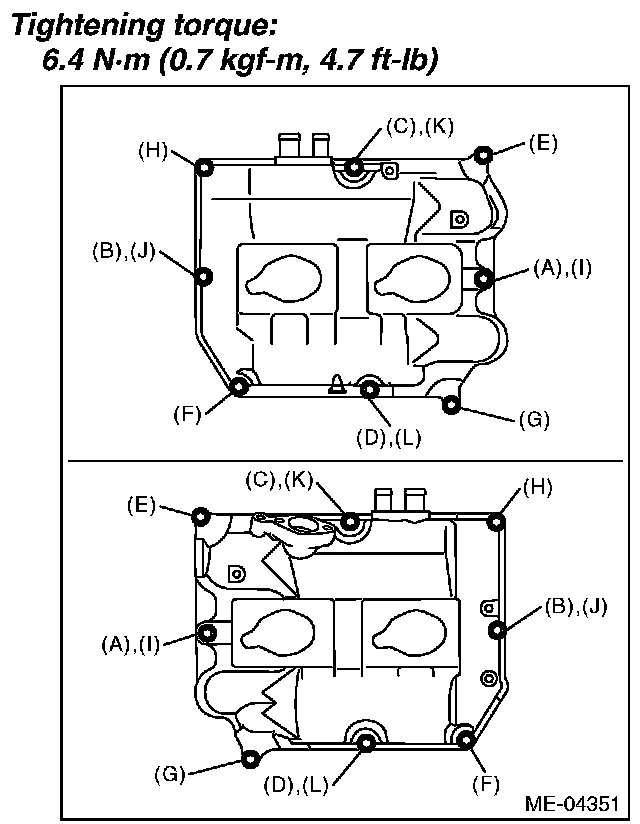

8) Install the service hole cover.
NOTE:
Use new O-rings.
Tightening torque:
6.4 Nm (0.7 kgf-m, 4.7 ft-lb)

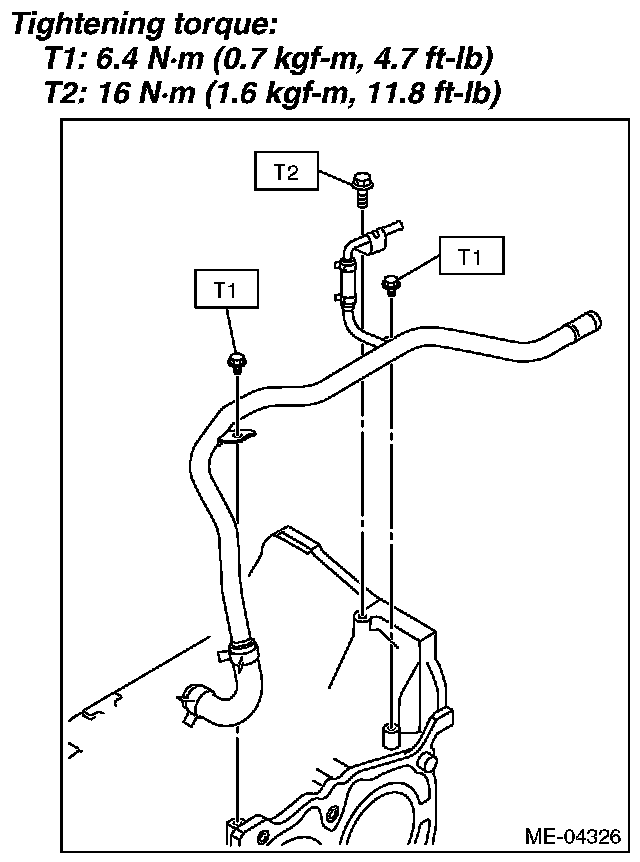

22) Install the water by-pass pipe.

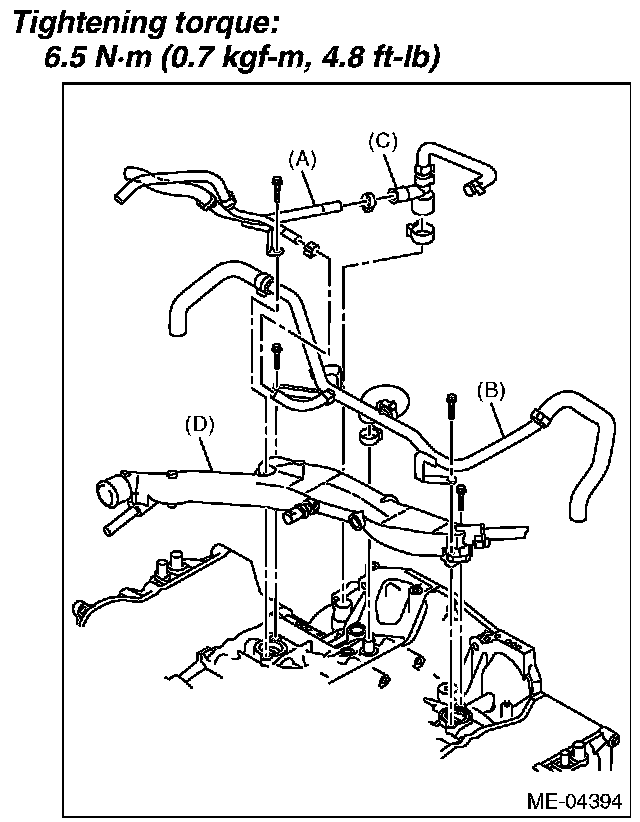

23) Install blow-by pipe assembly (A), blow-by pipe (B), PCV hose assembly (C) and water pipe assembly (D).
NOTE:
For the blow-by pipe assembly (A), blow-by pipe (B) and PCV hose assembly (C), use a new clamp, fit the cut out in the ST with the protrusion on the clamp as shown in the figure, and lock the clamp.

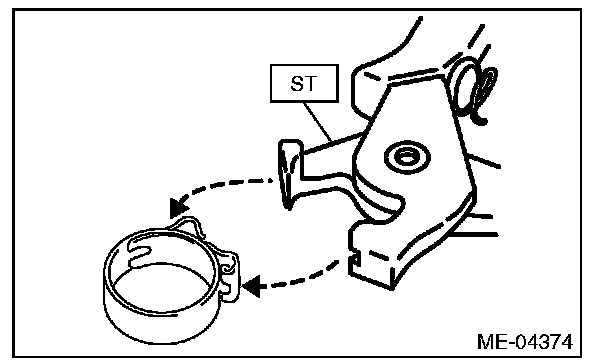

ST 18353AA000 CLAMP PLIERS
24) Install the baffle plate.
NOTE:
^ Use a new seal.
^ Make sure that the seals (A) are installed securely on the baffle plate in a direction as shown in the figure below.

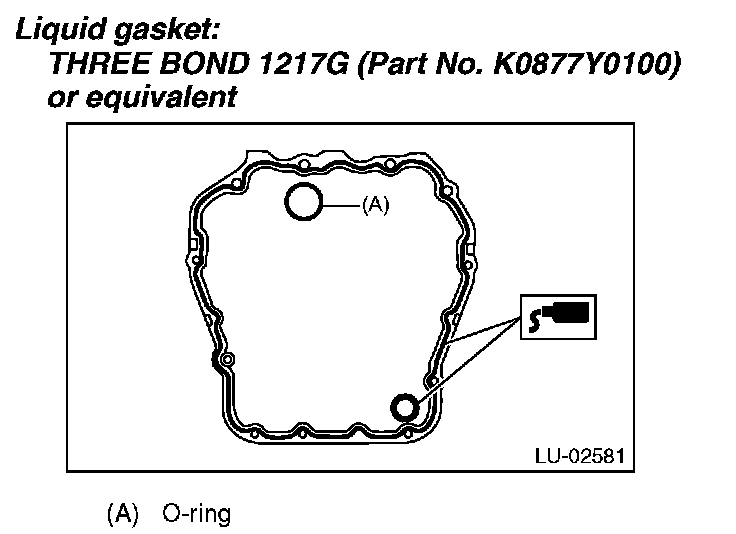

25) Apply liquid gasket to the mating surfaces of cylinder block lower, and install the cylinder block lower.
CAUTION:
Be careful not to apply any liquid gasket to the O-ring attachment section.
NOTE:
^ Use new O-rings.
^ Before installing the cylinder block lower, clean the mating surface of cylinder block lower and cylinder block.
^ Install within 5 min. after applying liquid gasket.
Liquid gasket:
THREE BOND 1217G (Part No. K0877Y0100) or equivalent

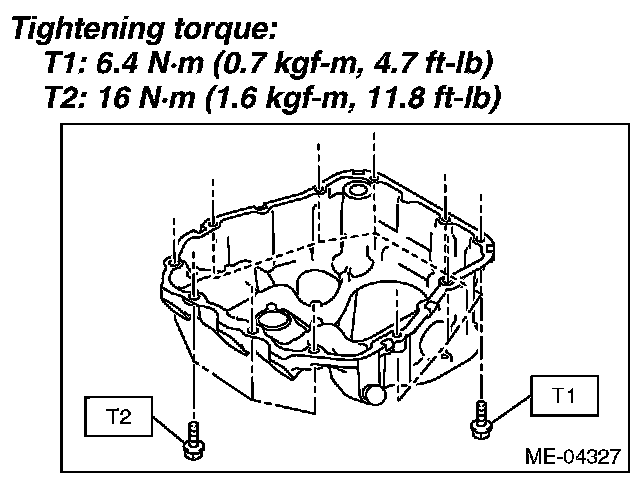

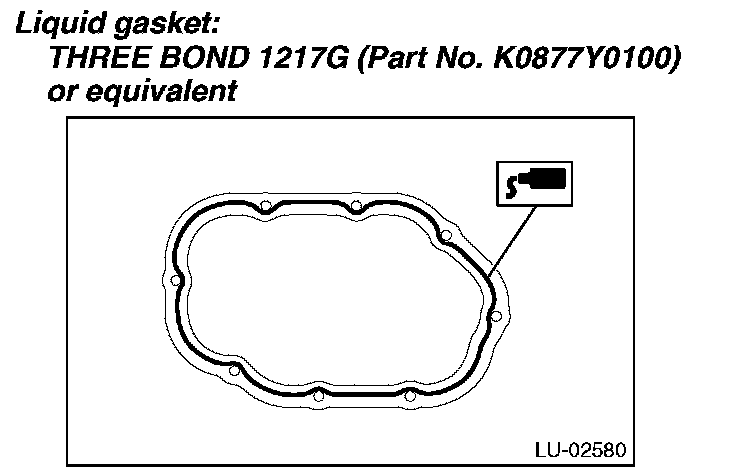

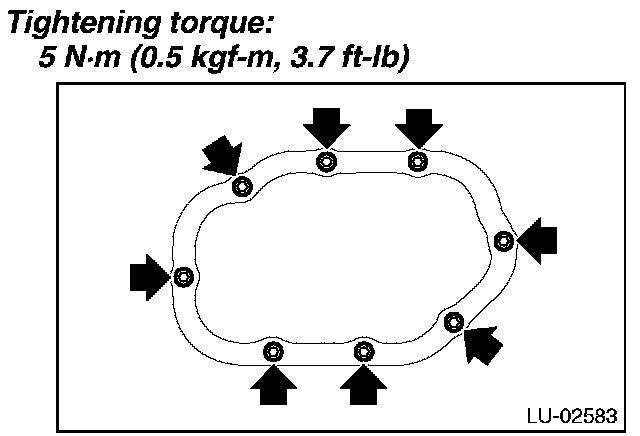

26) Apply liquid gasket to the mating surfaces of oil pan, and install the oil pan.
NOTE:
^ Before installing the oil pan, clean the mating surface of oil pan and cylinder block.
^ Install within 5 min. after applying liquid gasket.
Liquid gasket:
THREE BOND 1217G (Part No. K0877Y0100) or equivalent
27) Secure the oil level switch harness to the cylinder block with clip.

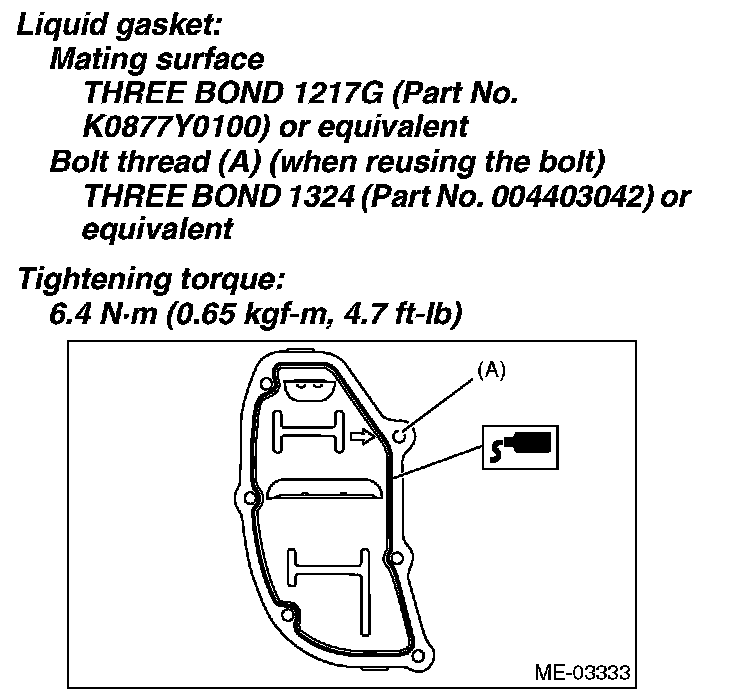

28) Apply liquid gasket to the mating surface of oil separator cover and the threaded portion of bolt (A) shown in the figure (when reusing the bolt), and then install the oil separator cover.
NOTE:
^ Install within 5 min. after applying liquid gasket.
^ Use new oil separator cover.
Liquid gasket:
Mating surface
THREE BOND 1217G (Part No. K0877Y0100) or equivalent
Bolt thread (A) (when reusing the bolt)
THREE BOND 1324 (Part No. 004403042) or equivalent
29) Install the flywheel.
30) Install the clutch disc and cover.
31) Install the oil pump.

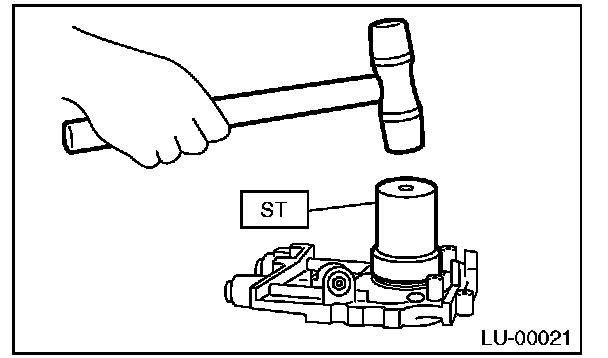

1) Using the ST, install the front oil seal.
ST 499587100 OIL SEAL INSTALLER
NOTE:
Use a new front oil seal.

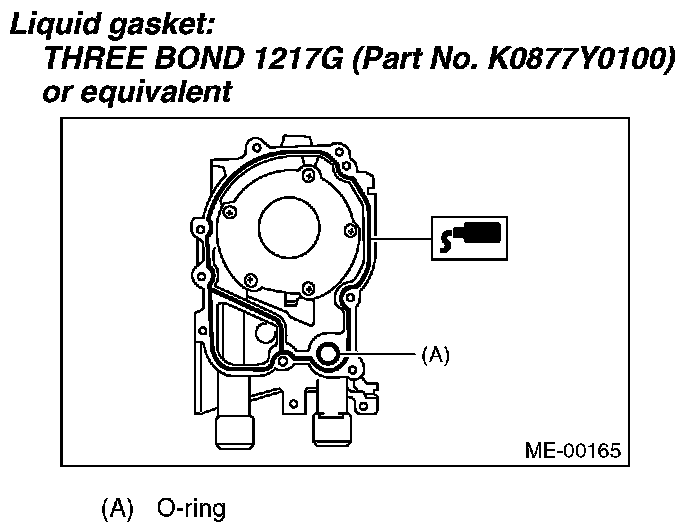

2) Apply liquid gasket to the mating surfaces of oil pump.
NOTE:
Install within 5 min. after applying liquid gasket.
Liquid gasket:
THREE BOND 1217G (Part No. K0877Y0100) or equivalent

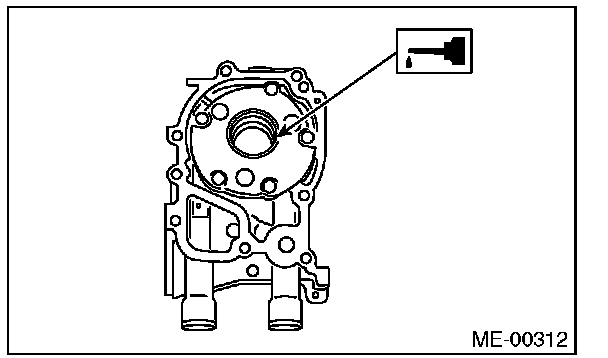

3) Apply a thin coat of engine oil to the inside of front oil seal.

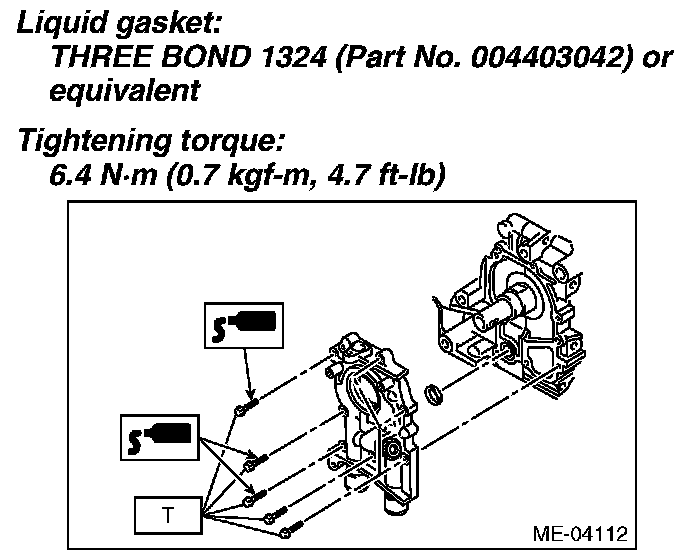

4) Install the oil pump to cylinder block.
CAUTION:
^ Be careful not to damage the front oil seal during installation.
^ Make sure the front oil seal lip is not folded.
NOTE:
^ Align the flat surface of oil pump's inner rotor with flat surface of crankshaft before installation.
^ Use new O-rings.
^ Do not forget to assemble O-rings.
5) Apply liquid gasket to the three bolts thread shown in figure. (when reusing bolts)
Liquid gasket:
THREE BOND 1324 (Part No. 004403042) or equivalent

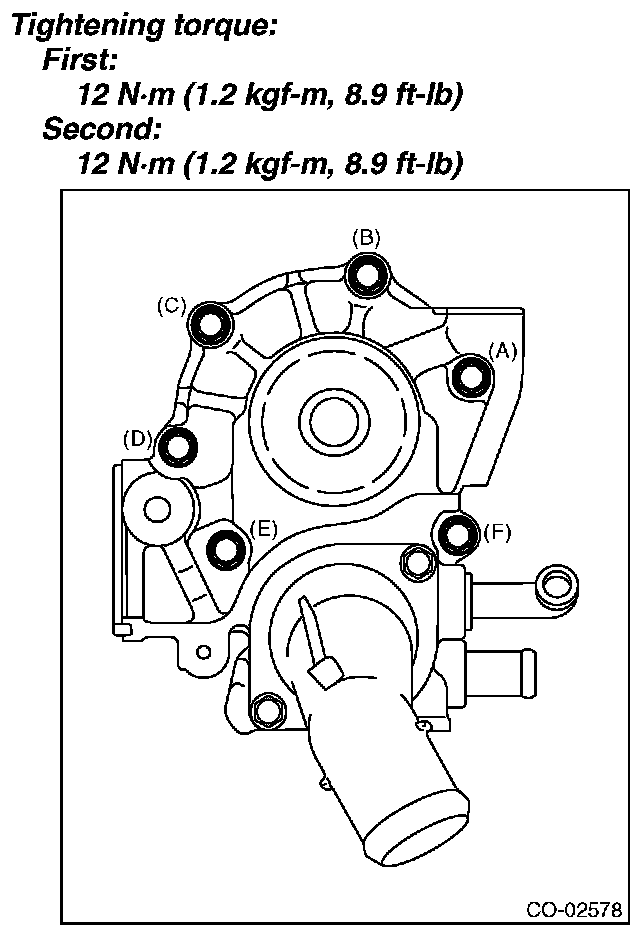

32) Install the water pump and gasket.
NOTE:
^ When installing the water pump, tighten bolts in two stages in alphabetical order as shown in the figure.
^ Use a new gasket.
^ Use new water pump sealing.
33) Install the hose to water pump.
34) Install the oil cooler. (MT model)
35) Install the oil filter.
36) Install the cylinder head.
37) Install the camshaft.
38) Install the A/C compressor together with the bracket.
Tightening torque:
36 Nm (3.7 kgf-m, 26.6 ft-lb)
39) Install the crank sprocket.
40) Install the cam sprocket.
41) Install the timing belt.
42) Adjust the valve clearance.
43) Install the rocker cover.
1) Install the rocker cover gasket to the rocker cover. (Outer periphery and ignition coil section)
NOTE:
Use a new rocker cover gasket.

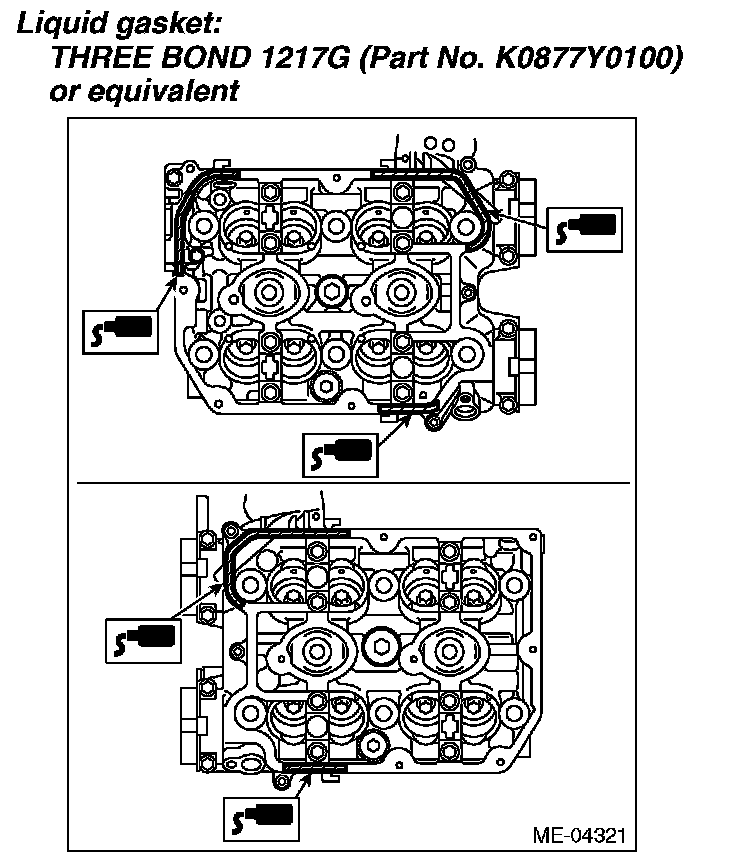

2) Apply liquid gasket to the specified point of the cylinder head.
NOTE:
Install within 5 min. after applying liquid gasket.
Liquid gasket:
THREE BOND 1217G (Part No. K0877Y0100) or equivalent
3) Install the rocker cover to cylinder head. Ensure the gasket is properly positioned during installation.
4) Temporarily tighten the rocker cover bolts in alphabetical order shown in the figure, and then tighten to specified torque in alphabetical order.
44) Connect the PCV hose to the rocker cover.
45) Install the timing belt cover.
46) Install the crank pulley.
47) Install the intake manifold.
DISASSEMBLY

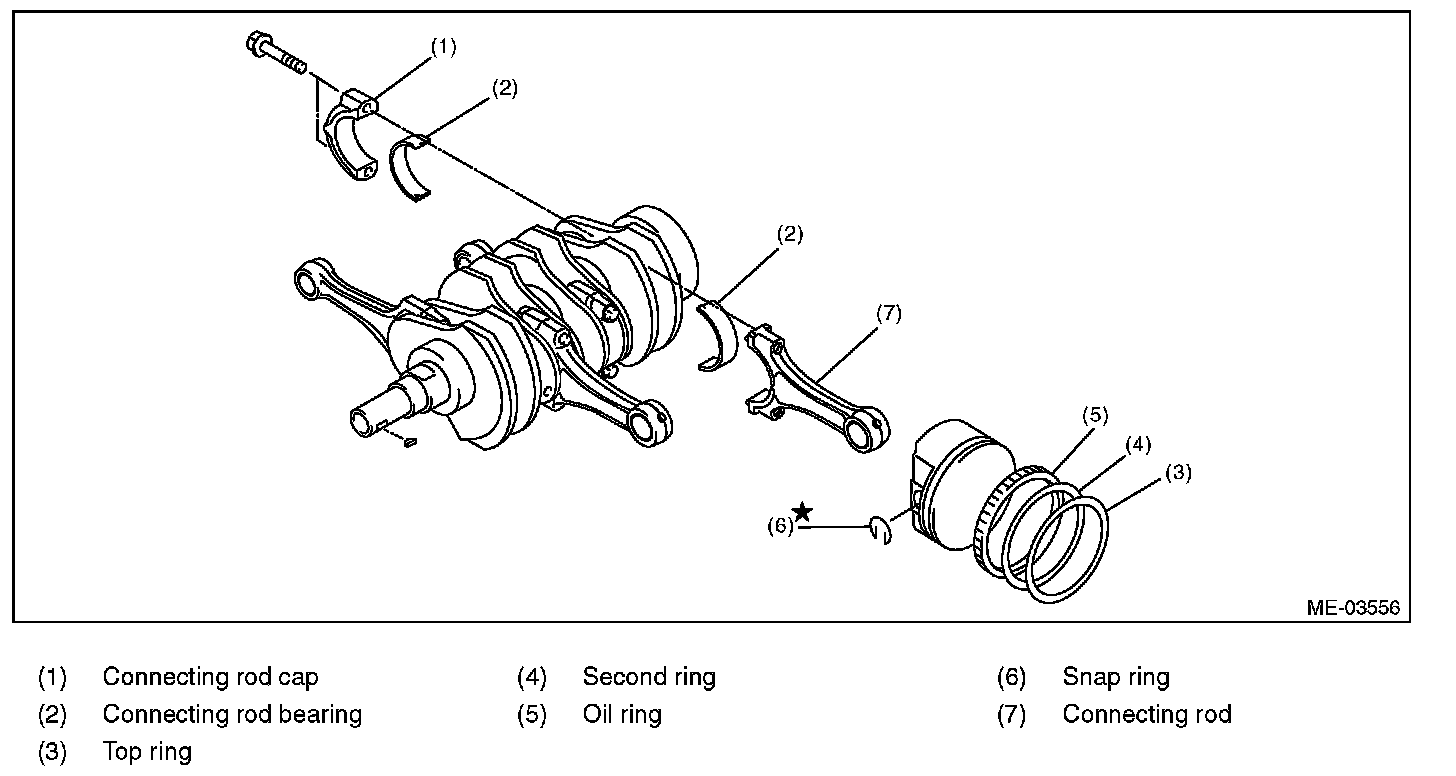

1) Remove the connecting rod cap.
2) Remove the connecting rod bearing.
NOTE:
Keep the removed connecting rods, connecting rod caps and bearings in order so that they are kept in their original combinations/groups, and not mixed together.
3) Remove the piston rings using piston ring expander.
4) Remove the oil ring by hand.
NOTE:
Arrange the removed piston rings in proper order, to prevent confusion.
5) Remove the snap ring.
ASSEMBLY
1) Apply engine oil to the surface of the connecting rod bearings, and install the connecting rod bearings onto connecting rods and connecting rod caps.
2) Position each connecting rod with the side with a side mark facing forward, and install it.
3) Attach the connecting rod cap, and tighten with the connecting rod bolt. Make sure the arrow on connecting rod cap faces the front during installation.
NOTE:
^ Each connecting rod has its own mating cap. Make sure that they are assembled correctly by checking their matching number.
^ When tightening the connecting rod bolts, apply oil on the threads.
Tightening torque:
52 Nm (5.3 kgf-m, 38.4 ft-1b)
4) Install the oil ring upper rail, expander and lower rail by hand.
5) Install the second ring and top ring using piston ring expander.
NOTE:
Assemble so that the piston ring mark "R" faces the top side of the piston.
INSPECTION
CYLINDER BLOCK
1) Check for cracks or damage. Use liquid penetrant tester on the important sections to check for fissures. Check that there are no marks of gas leaking or water leaking on gasket installing surface.
2) Check the oil passages for clogging.
3) Inspect the cylinder block surface that mates with cylinder head for warping by using a straight edge, and correct by grinding if necessary.
Warping limit:
0.025 mm (0.00098 in)
Grinding limit:
0.1 mm (0.004 in)
Standard height of cylinder block:
201.0 mm (7.91 in)
CYLINDER AND PISTON
1) The cylinder bore size is stamped on the front upper face of the cylinder block.
NOTE:
^ Measurement should be performed at a temperature of 20 degrees C (68 degrees F).
^ Standard sized pistons are classified into two grades, "A" and "B". These grades should be used as guide lines in selecting a standard piston.
2) Measure inner diameter of each cylinder.
Measure the inner diameter of each cylinder in both the thrust and piston pin directions at the heights as shown in the figure, using a cylinder bore gauge.
NOTE:
Measurement should be performed at a temperature of 20 degrees C (68 degrees F).
Taper:
Standard
0.015 mm (0.0006 in)
3) When the piston is to be replaced due to general or cylinder wear, select a suitable sized piston by measuring the piston clearance.

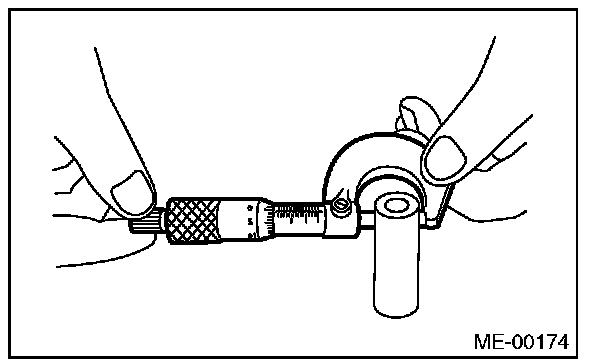

4) Measure outer diameter of each piston. Measure the outer diameter of each piston at the height as shown in the figure. (Thrust direction)
NOTE:
Measurement should be performed at a temperature of 20 degrees C (68 degrees F).
Piston grade point H:
38.2 mm (1.50 in)
Piston outer diameter:
5) Calculate the clearance between cylinder and piston.
NOTE:
Measurement should be performed at a temperature of 20 degrees C (68 degrees F).
Cylinder to piston clearance at 20 degrees C (68 degrees F):
Standard
-0.010 - 0.010 mm (-0.00039 - 0.00039 in)
6) Boring and honing
1) If any of the measured value of taper, out-of-roundness or cylinder-to-piston clearance is out of standard or if there is any damage on the cylinder wall, rebore it to replace with an oversize piston.
CAUTION:
When any of the cylinders needs reboring, all other cylinders must be bored at the same time, and replaced with oversize pistons.
2) If the cylinder inner diameter exceeds the limit after boring and honing, replace the cylinder block.
NOTE:
Immediately after reboring, the cylinder diameter may differ from its real diameter due to temperature rise. Thus, when measuring the cylinder diameter, wait until it has cooled to room temperature.
Cylinder inner diameter boring limit (diameter):
To 100.005 mm (3.9372 in)
PISTON AND PISTON PIN
1) Check the piston and piston pin for damage, cracks or wear. Replace if faulty.
2) Check the piston ring groove for wear or damage. Replace if faulty.

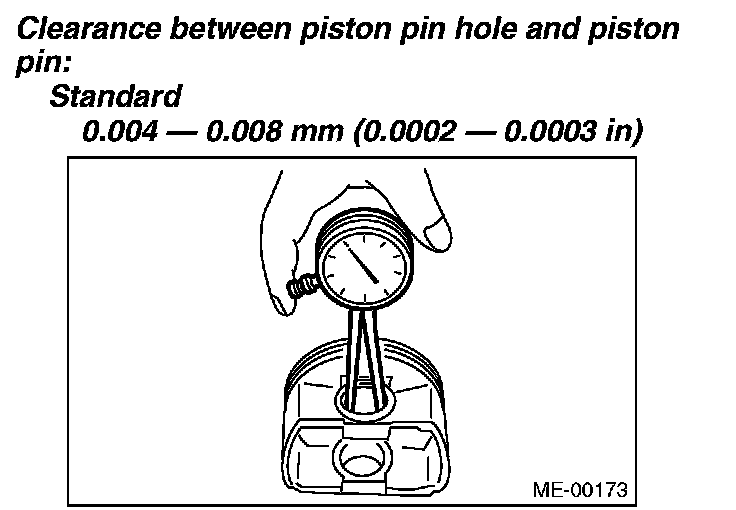

3) Make sure the piston pin can be inserted into the piston pin hole by a thumb at 20 degrees C (68 degrees F). Replace if faulty.

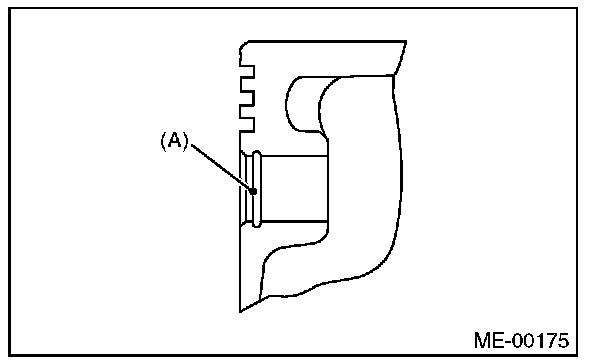

4) Check the snap ring installation groove (A) on the piston for burr. If necessary, remove burr from the groove so that the piston pin can lightly move.
5) Check the piston pin snap ring for distortion, cracks and wear.
PISTON RING
1) If the piston ring is broken, damaged or worn, or if its tension is insufficient, or when the piston is replaced, replace the piston ring with a new part of the same size as piston.
NOTE:
^ The top ring and second ring have the mark to determine the direction for installing. When attaching the ring to the piston, face these marks towards the top side.

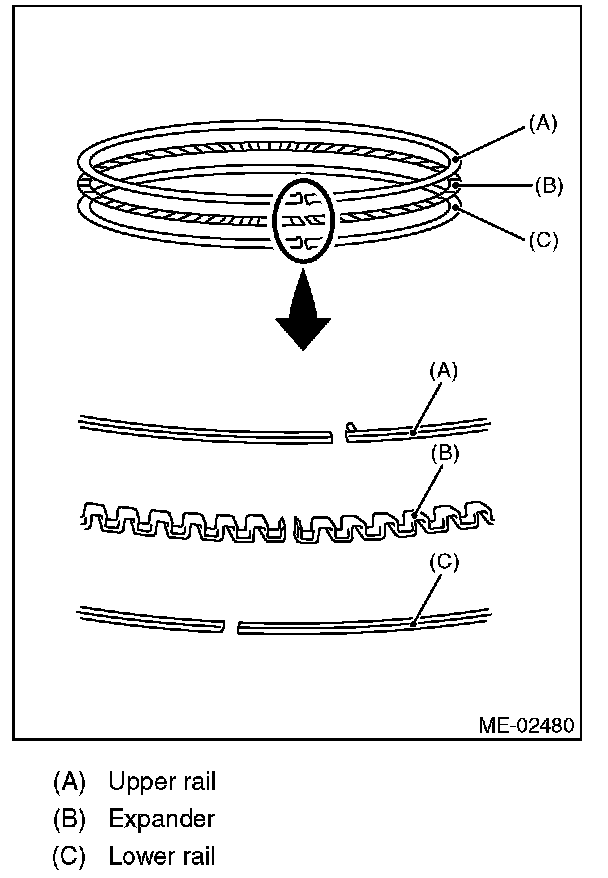

^ Oil ring consists of the upper rail, expander and lower rail. When attaching the oil ring to the piston, pay attention to the direction of each rail.
2) Using the piston, insert the piston ring and oil ring into the cylinder so that they are perpendicular to the cylinder wall, and measure the piston ring gap with a thickness gauge.
3) Fit the piston ring straight into the piston ring groove, then measure the clearance between piston ring and piston ring groove with a thickness gauge.
NOTE:
Before measuring the clearance, clean the piston ring groove and piston ring.
CONNECTING ROD
1) Replace the connecting rod, if the large or small end thrust surface is damaged.
2) Check for bend or twist using a connecting rod aligner. Replace the connecting rod if the bend or twist exceeds the limit.
3) Install the connecting rod with bearings attached to the crankshaft, and using a thickness gauge, measure the thrust clearance. If the thrust clearance exceeds the standard or uneven wear is found, replace the connecting rod.
4) Inspect the connecting rod bearing for scar, peeling, seizure, melting, wear, etc.
5) Measure the oil clearance on each connecting rod bearing using Plastigage(R). If any oil clearance is not within the standard, replace the defective bearing with a new part of standard size or undersize as necessary.
6) Inspect the bushing at connecting rod small end, and replace with a new part if worn or damaged.
7) Measure the piston pin clearance at connecting rod small end. Replace it with a new part if the value is not within the standard.
8) The replacement procedure for the connecting rod small end bushing is as follows.

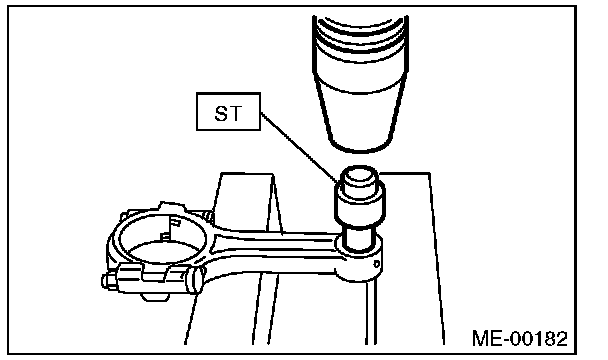

1) Remove the bushing from connecting rod with ST and press.
2) Apply oil on the periphery of the new bushing, and press the bushing in with the ST.
ST 499037100 CONNECTING ROD BUSHING REMOVER AND INSTALLER
3) Make two 3 mm (0.12 in) holes in the pressed bushing to match the pre-manufactured holes on the connecting rod, then ream the inside of the bushing.
4) After completion of reaming, clean the bushing to remove chips.
CRANKSHAFT AND CRANKSHAFT BEARING
1) Clean the crankshaft completely, and check it for cracks using liquid penetrant tester. If defective, replace the crankshaft.
2) Measure warping of the crankshaft. If it exceeds the limit, correct or replace it.
NOTE:
If a suitable V-block is not available, using just the #1 and #5 crankshaft bearings on cylinder block, position the crankshaft on cylinder block. Then, measure the crankshaft bend using a dial gauge.
3) Inspect the crank journal and crank pin for wear. If they are not within the standard, replace the bearing with a suitable (undersize) one, and replace or grind to correct the crankshaft as necessary. When grinding the crank journal or crank pin, finish them to the specified dimensions according to the undersize bearing to be used.
4) Use a thickness gauge to measure the thrust clearance of crankshaft at #5 crank journal bearing. If clearance exceeds the standard, replace the bearing.
5) Inspect individual crankshaft bearings for signs of flaking, seizure, melting and wear.
6) Measure the oil clearance on each crankshaft bearing using Plastigage(R). If the measured value is out of standard, replace the defective bearing with an undersize one, and replace or grind to correct the crankshaft as necessary.
Crankshaft oil clearance:
Standard
0.010 - 0.030 mm (0.00039 - 0.0012 in)
