Radiator Main Fan

Radiator Main Fan and Fan Motor

REMOVAL
1) Remove the collector cover.
2) Disconnect the ground cable from battery.

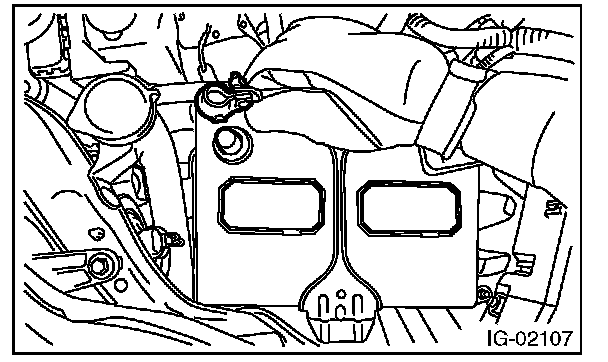

3) Remove the reservoir tank.
4) Disconnect the main fan motor connector (A).

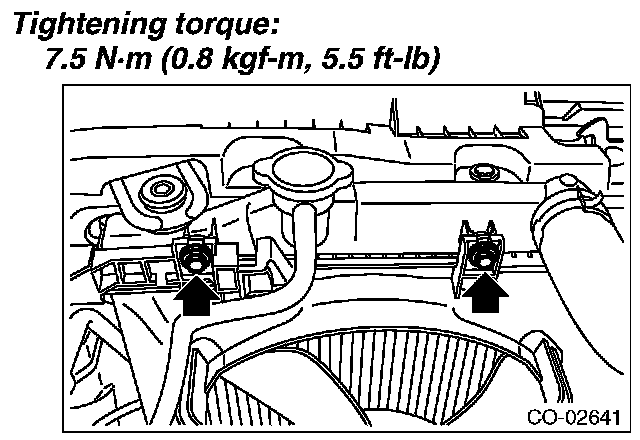

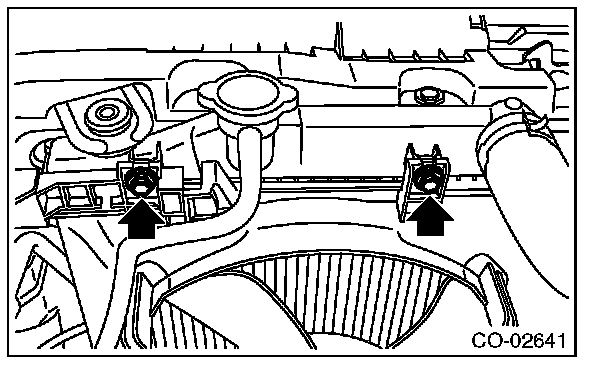

5) Remove the bolts that secure the radiator main fan motor assembly.





6) Remove the radiator main fan motor assembly from the upper side of the vehicle.

INSTALLATION
Install in the reverse order of removal.

CAUTION:
Confirm that the radiator hose is securely connected.






DISASSEMBLY
1) Remove the main fan motor connector and main fan motor harness from the radiator main fan shroud.

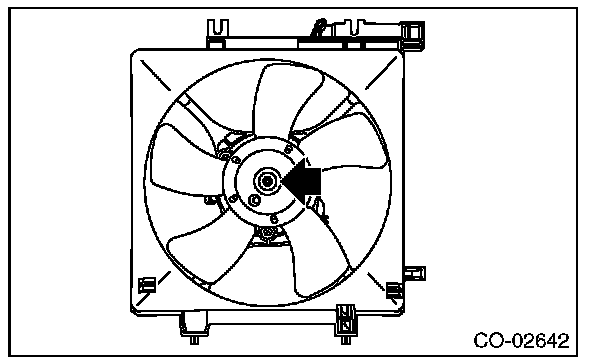

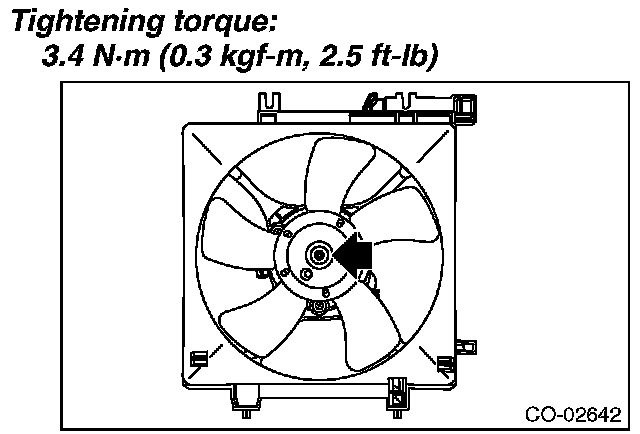

2) Remove the radiator main fan from the main fan motor.

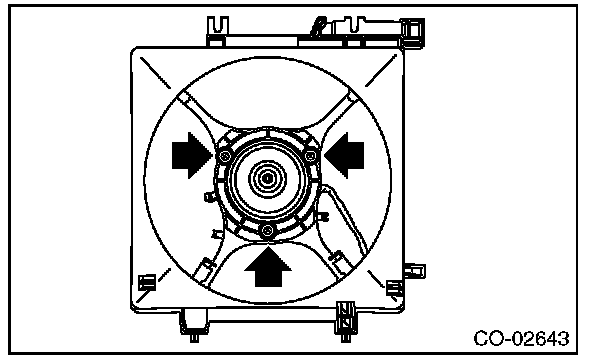

3) Remove the main fan motor from the radiator main fan shroud.





ASSEMBLY
Assemble in the reverse order of disassembly.








INSPECTION
Check that the radiator main fan, radiator main fan shroud and main fan motor do not have deformation, cracks or damage.
