Clutch Slave Cylinder

OPERATING CYLINDER

Clutch Operating Cylinder Components (Non-Turbo Model):

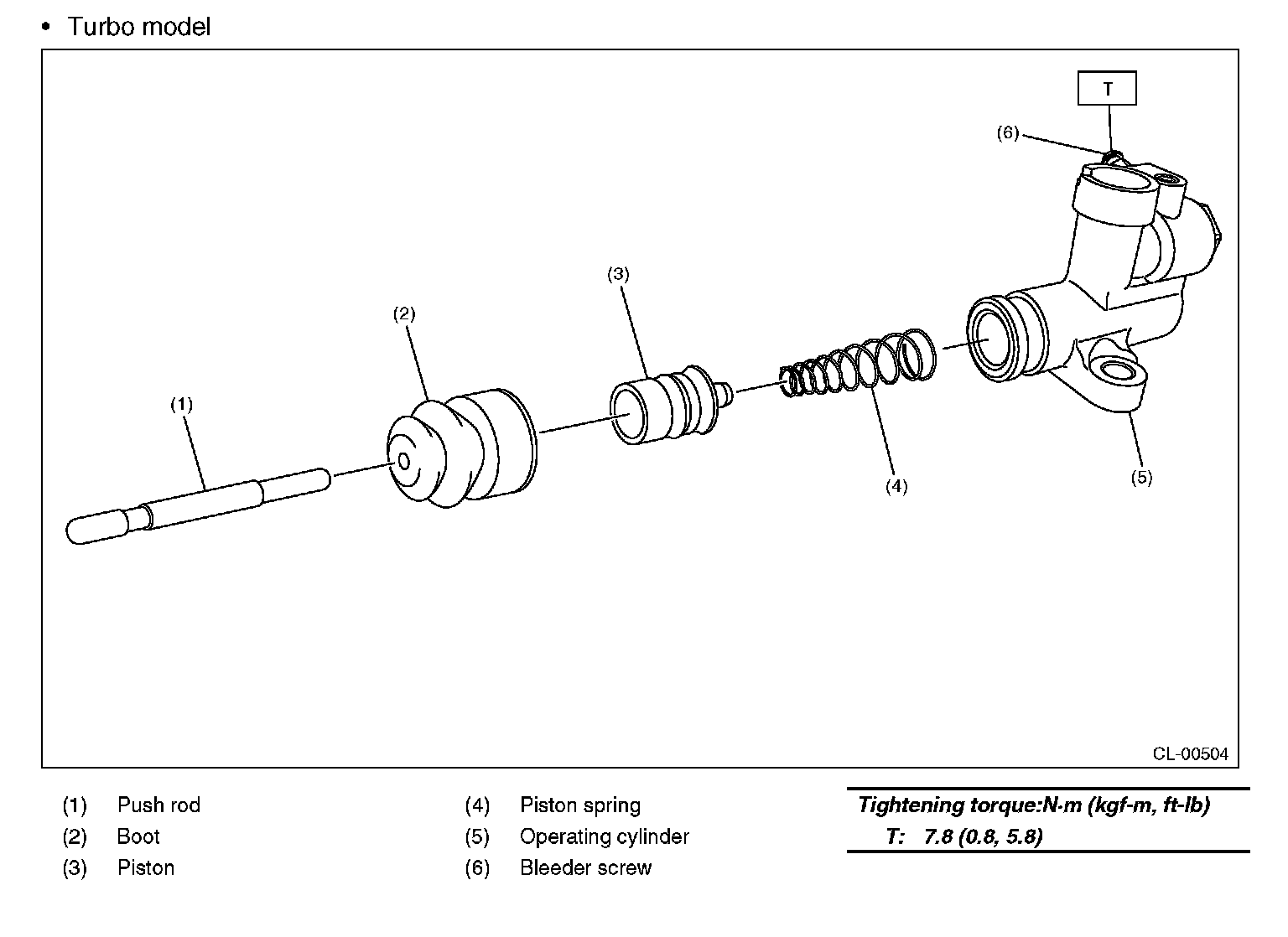

Clutch Operating Cylinder Components (Turbo Model):
