Control Module I/O Signal

Control Module I/O Signal

ELECTRICAL SPECIFICATION

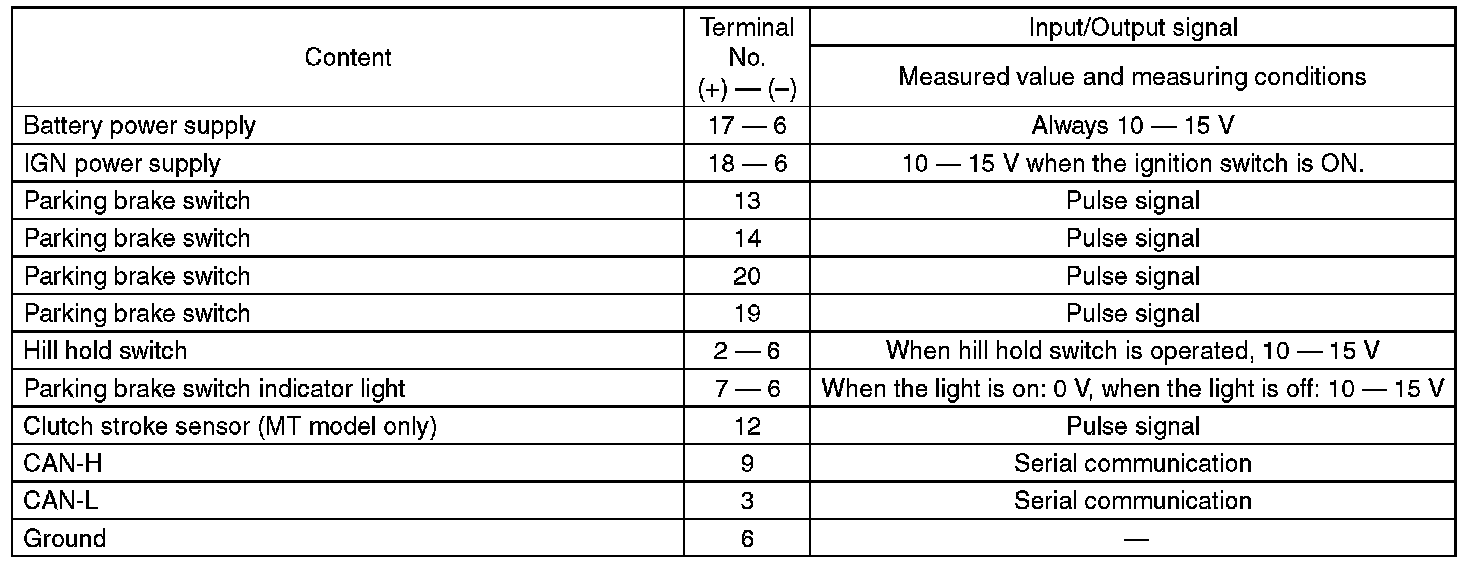

Control Module I/O Signal Electrical Specification (Part 1):





NOTE:

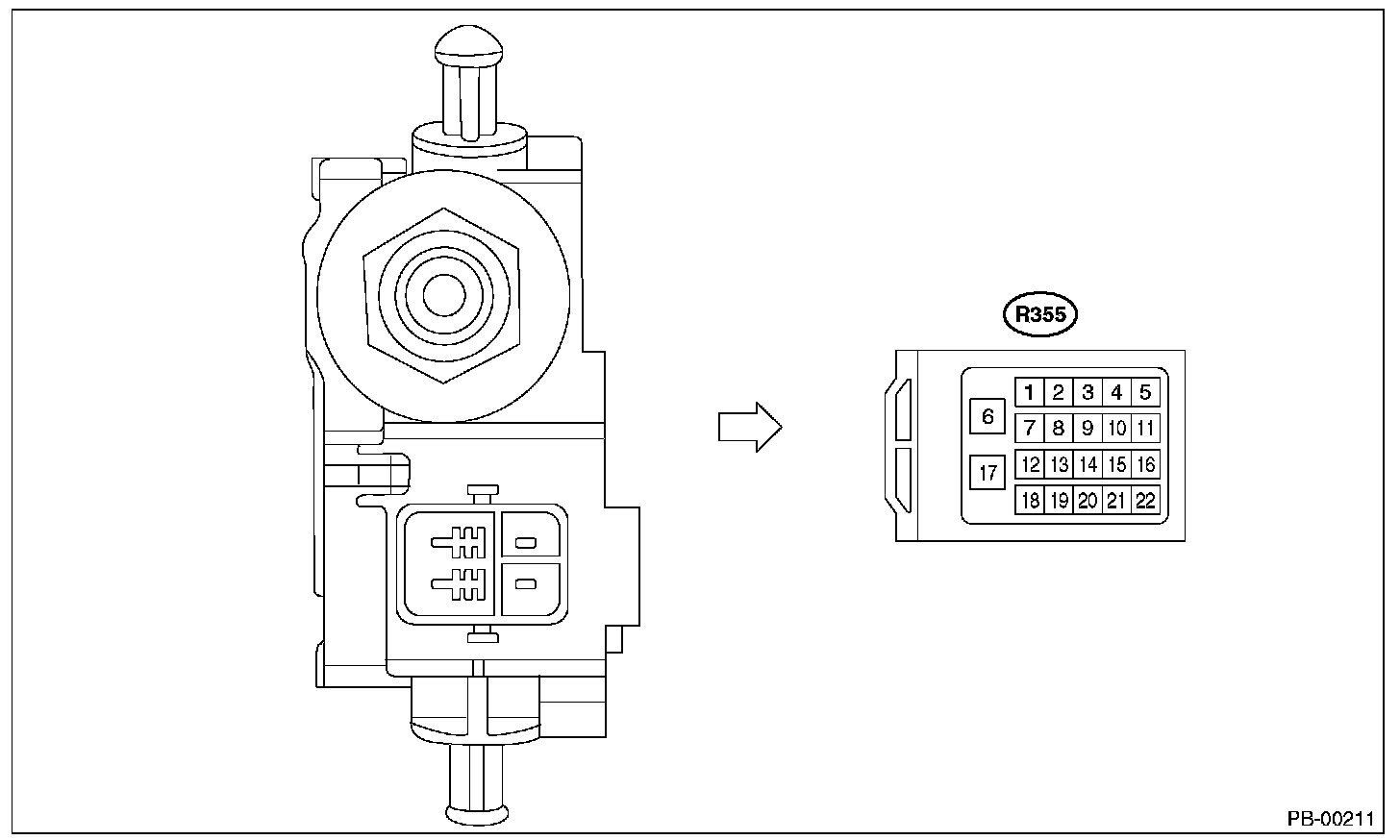

The terminal numbers of the parking brake control module connectors are as indicated in the figure.

Control Module I/O Signal Electrical Specification (Part 2):
