Check Rear Gate/Trunk Opener Button Switch Circuit
Check Rear Gate/Trunk Opener Button Switch Circuit

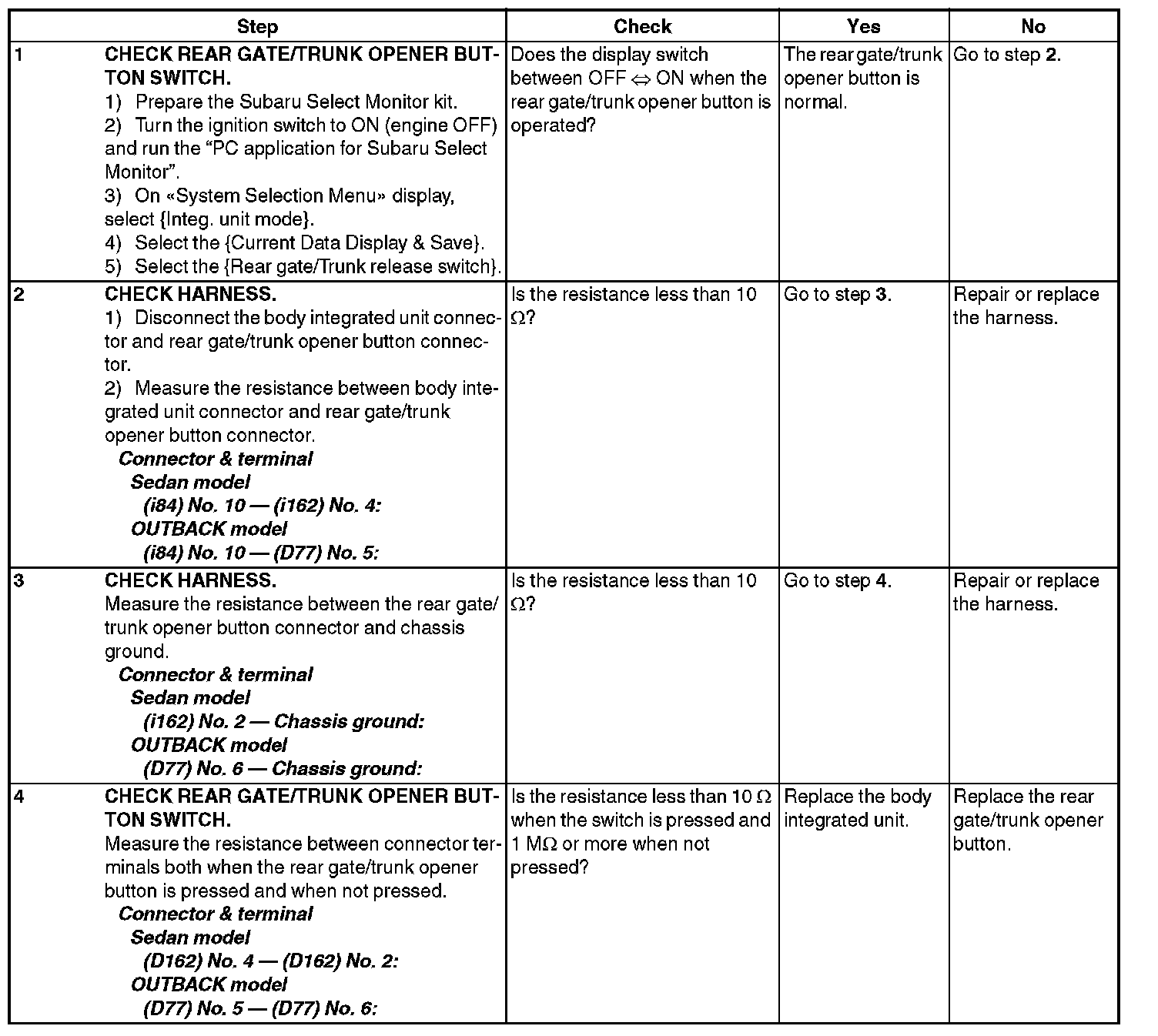

CHECK REAR GATE/TRUNK OPENER BUTTON SWITCH CIRCUIT
Step 1-4:
