Security and Locks

Security System

INSPECTION

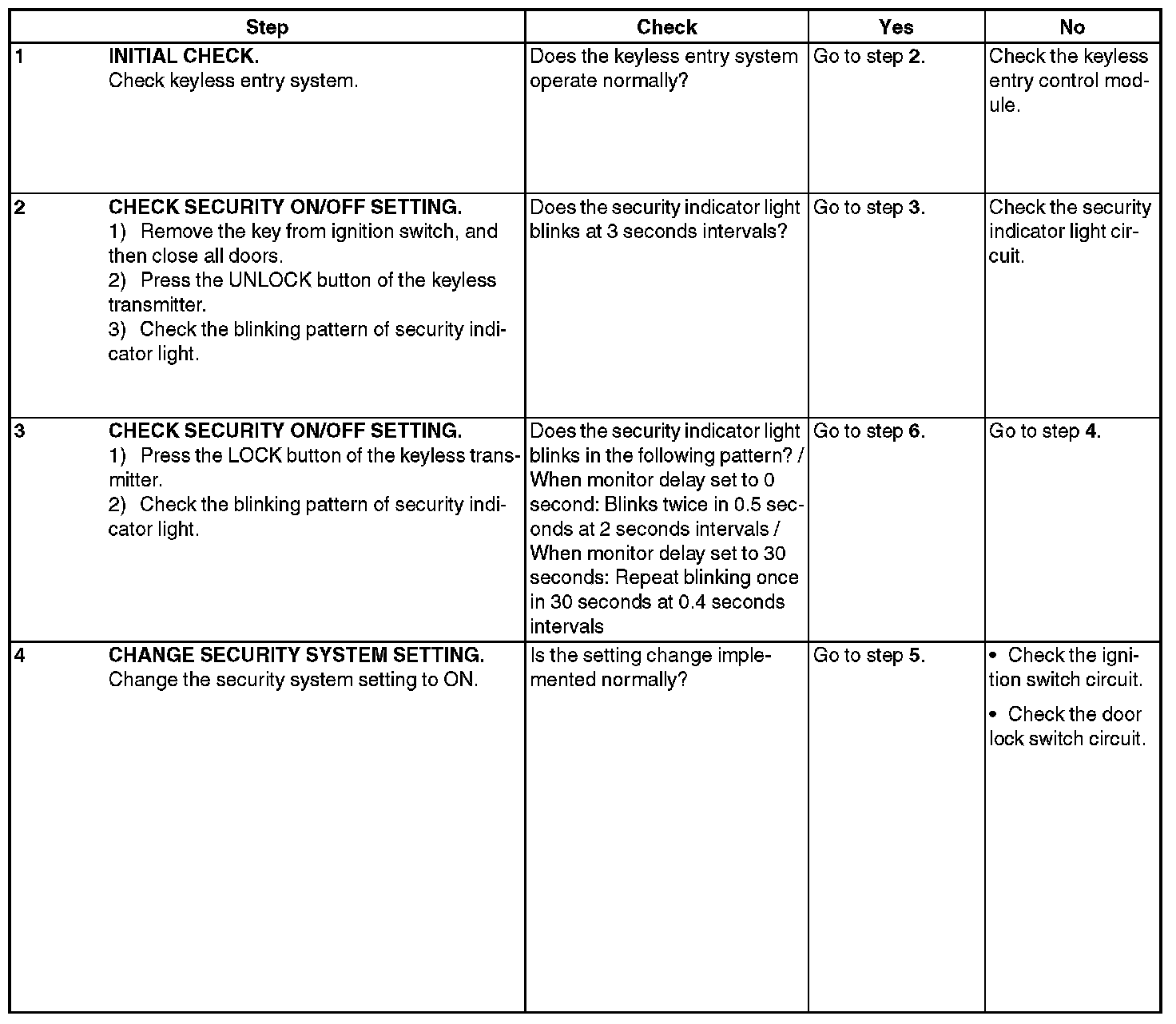

BASIC DIAGNOSTIC PROCEDURE

Step 1-4:

Step 5-11:

NOTE:
If any of the following symptoms emerges, check the function settings of body integrated unit.
- Horn does not sound though security alarm is activated. A possible cause for this is that the {{Security Alarm Setup}} has been set to ON by the customization function.
- Horn sounds when the security is set to ON (monitoring) by the keyless transmitter. A possible cause for this is that the impact sensor presence setting (ON: present, OFF: not present) has been set to ON by the customization function though no impact sensor is fitted.
