Home >> Subaru >> 2010 >> Legacy F4-2.5L DOHC Turbo >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Testing and Inspection >> Check Key Warning Switch

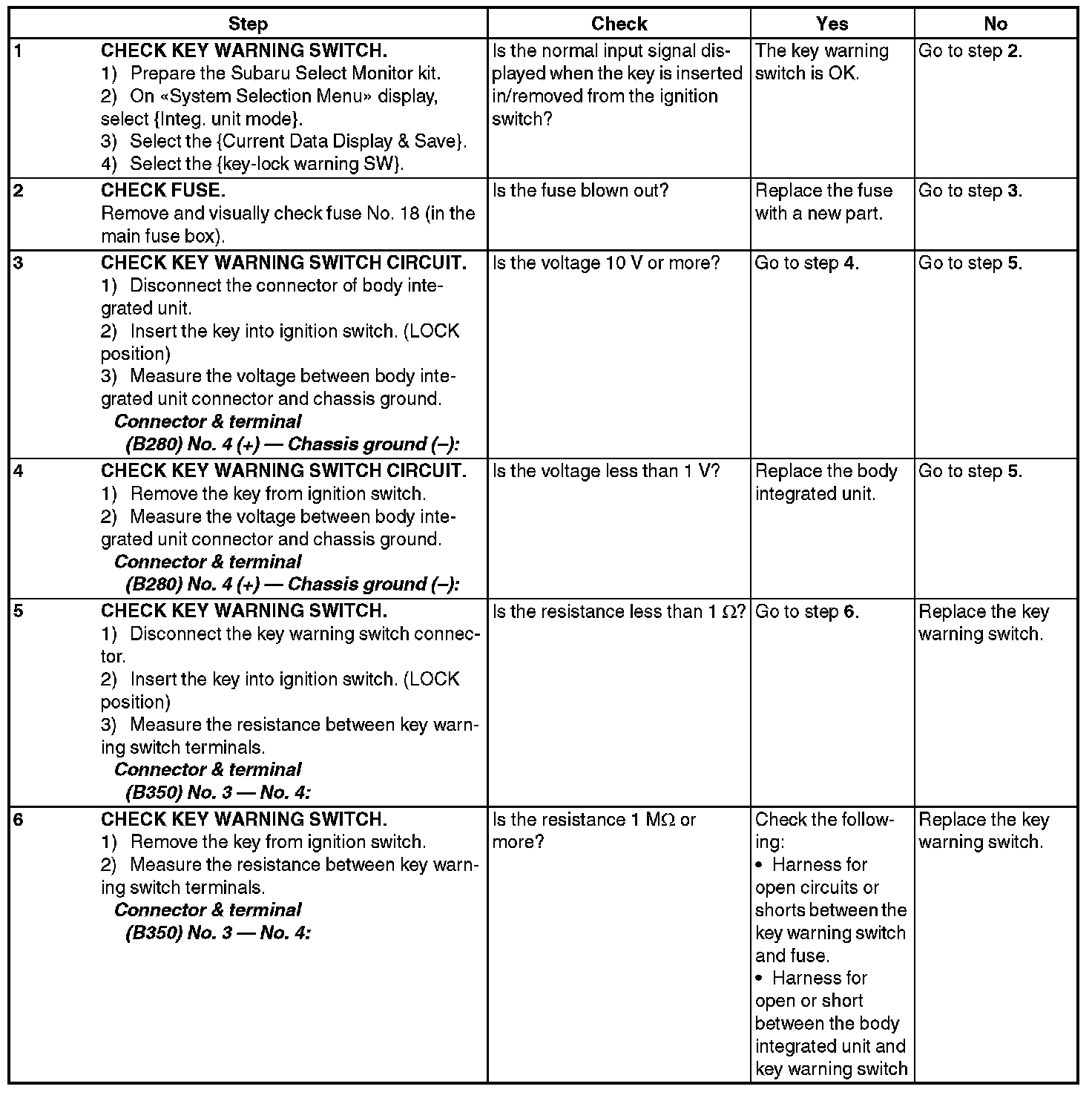

Check Key Warning Switch

CHECK KEY WARNING SWITCH.

Step 1-6:
