P2103

DTC P2103 THROTTLE ACTUATOR CONTROL MOTOR CIRCUIT HIGH

DTC DETECTING CONDITION:
- Immediately at fault recognition
- GENERAL DESCRIPTION P2103


CAUTION: After servicing or replacing faulty parts,perform Clear Memory Mode Clear Memory Mode, and Inspection Mode. Preparation For the Inspection Mode

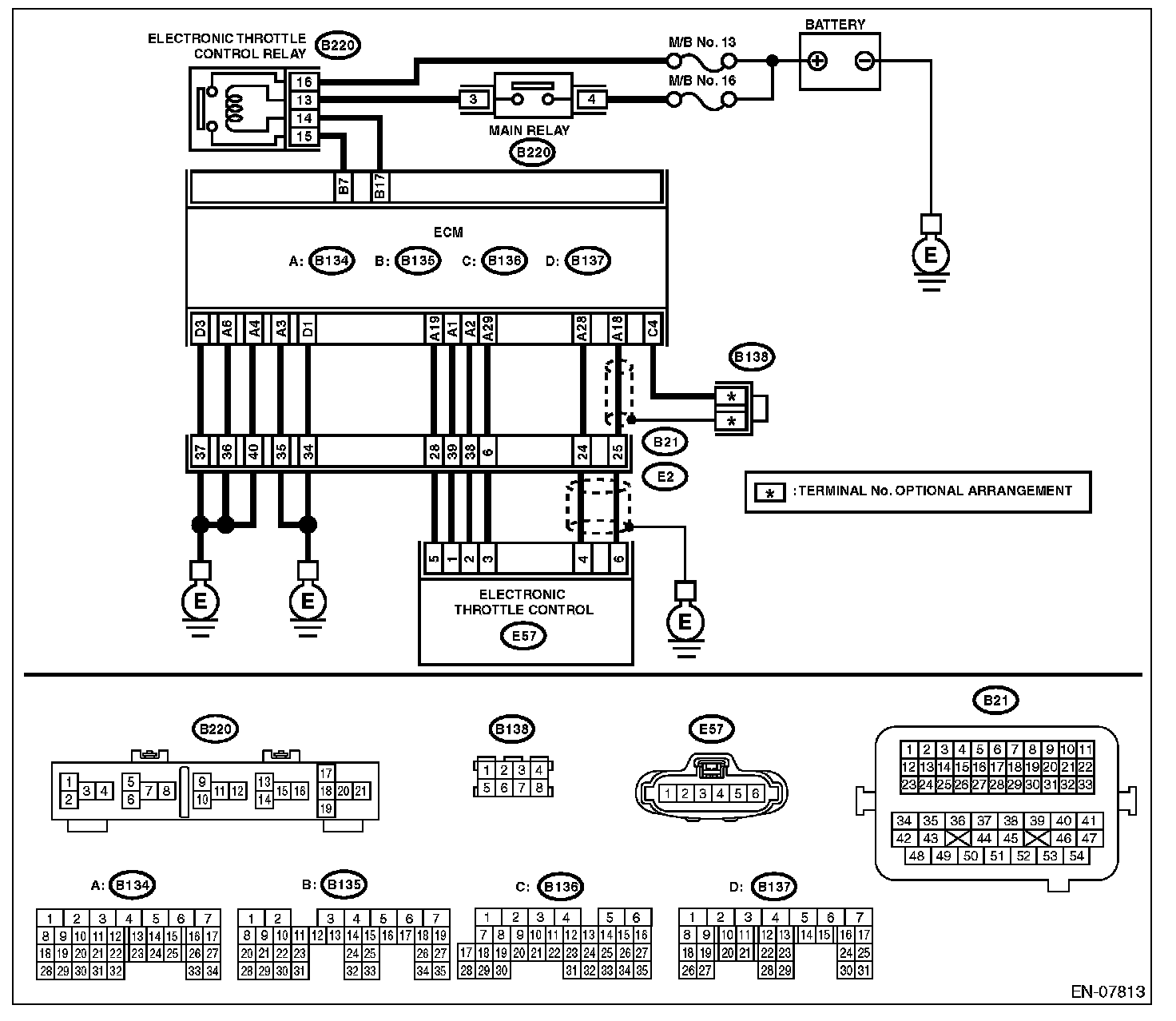

WIRING DIAGRAM:

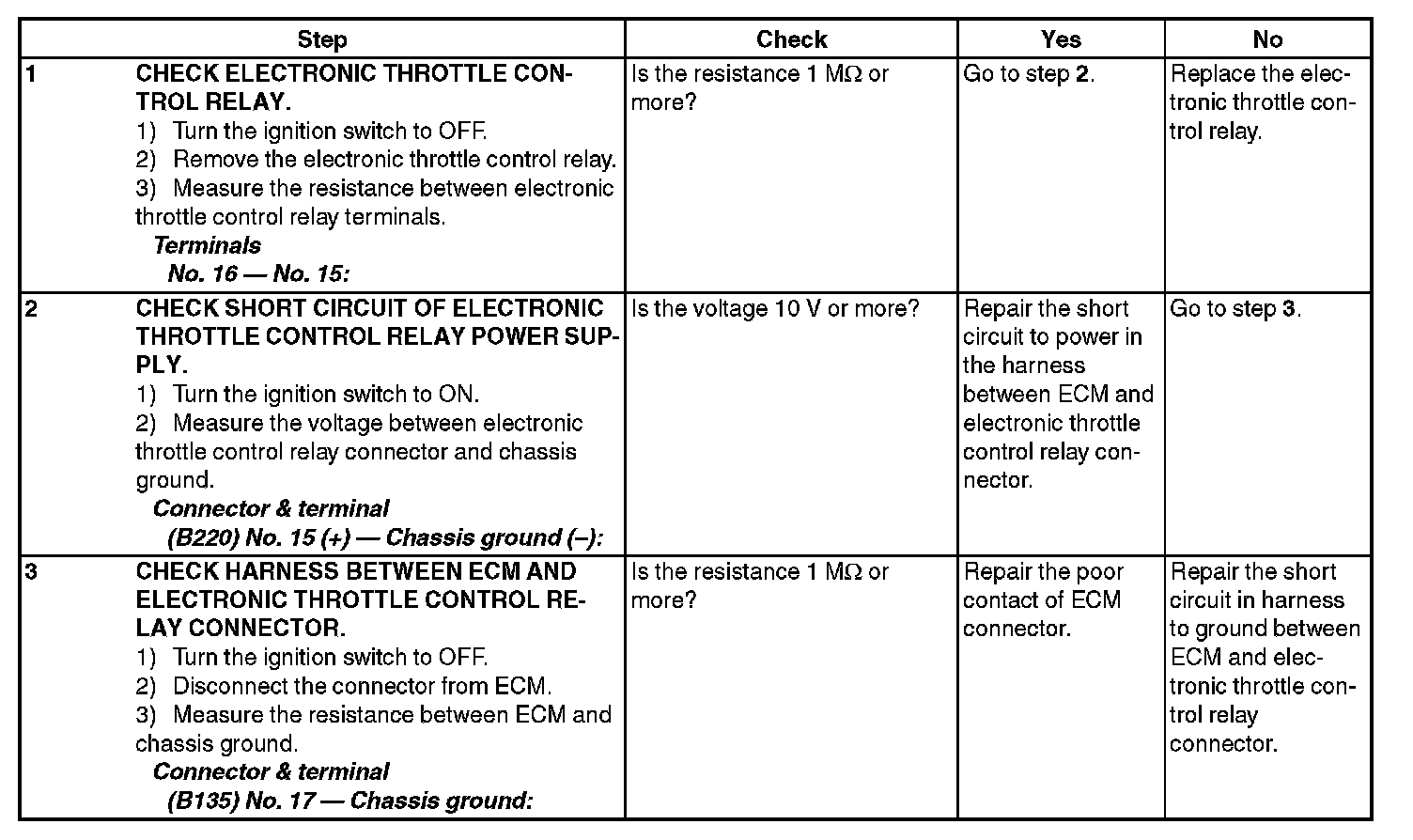

Step 1-3:
