P2097

DTC P2097 POST CATALYST FUEL TRIM SYSTEM TOO RICH (BANK 1)

DTC DETECTING CONDITION:
- Detected when two consecutive driving cycles with fault occur.
- GENERAL DESCRIPTION P2097

CAUTION: After servicing or replacing faulty parts,perform Clear Memory Mode Clear Memory Mode, and Inspection Mode. Preparation For the Inspection Mode

WIRING DIAGRAM:

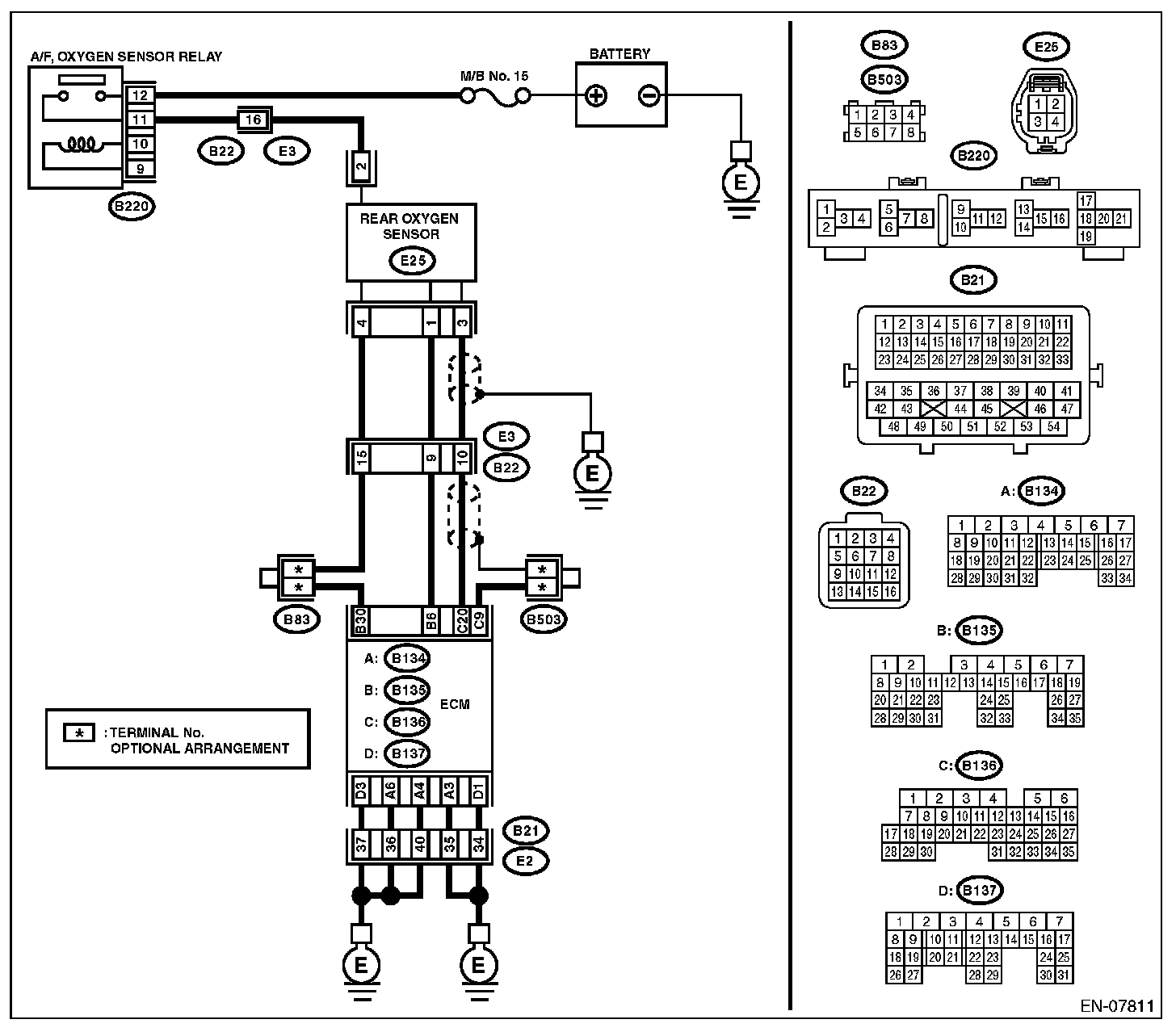

Wiring Diagram (Part 1):

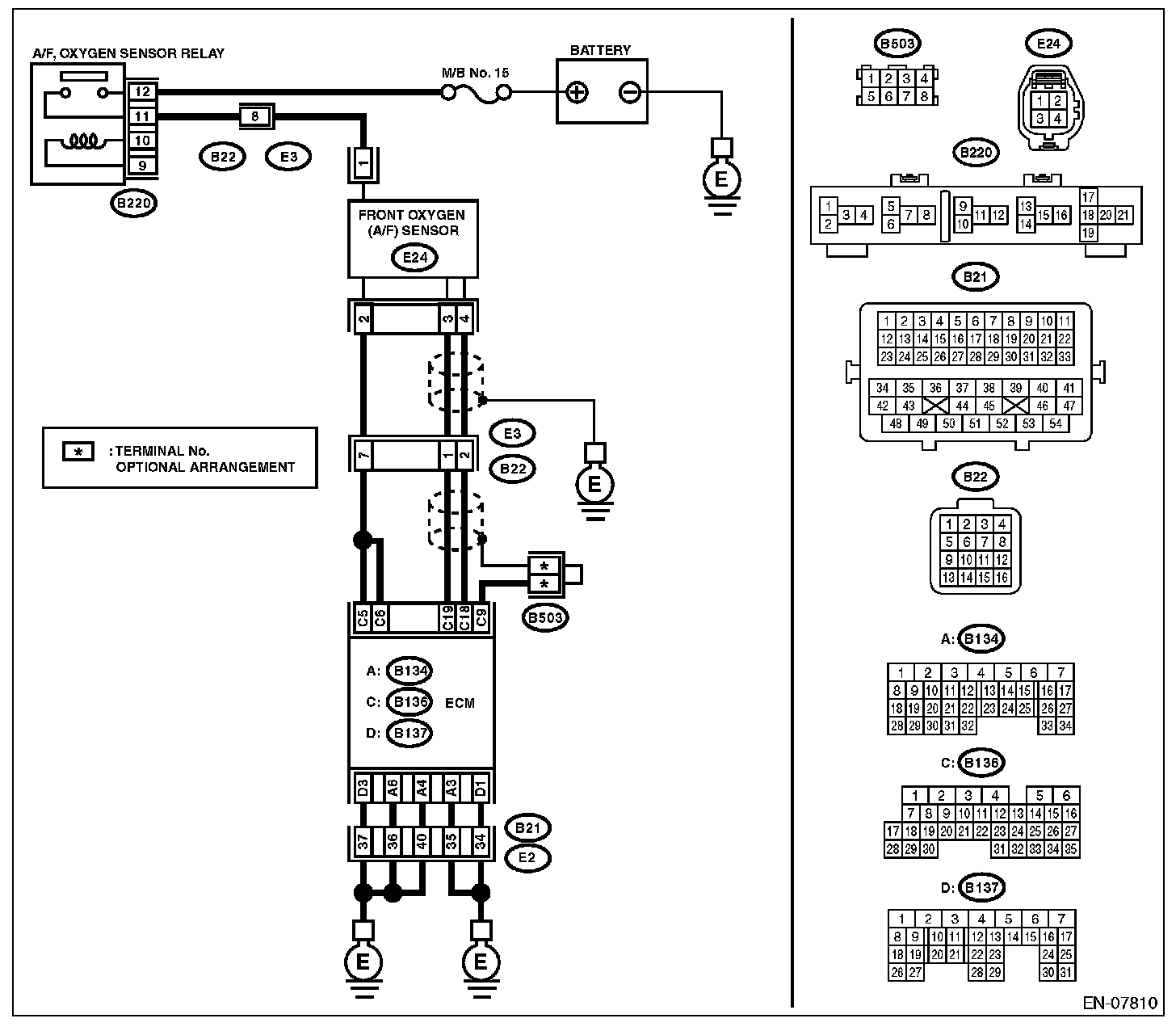

Wiring Diagram (Part 2):

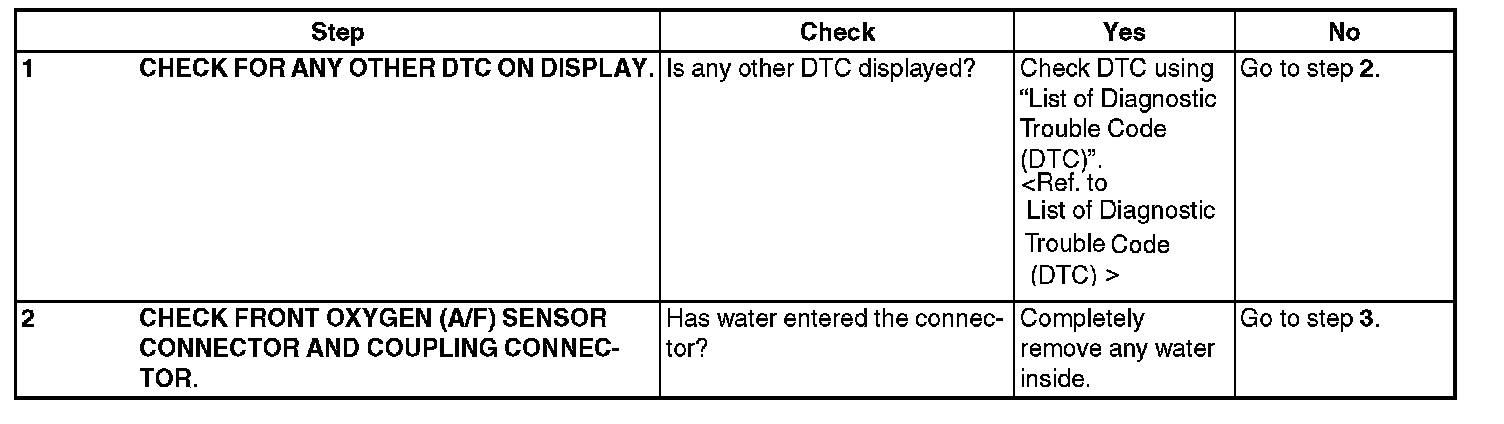

Step 1-2:

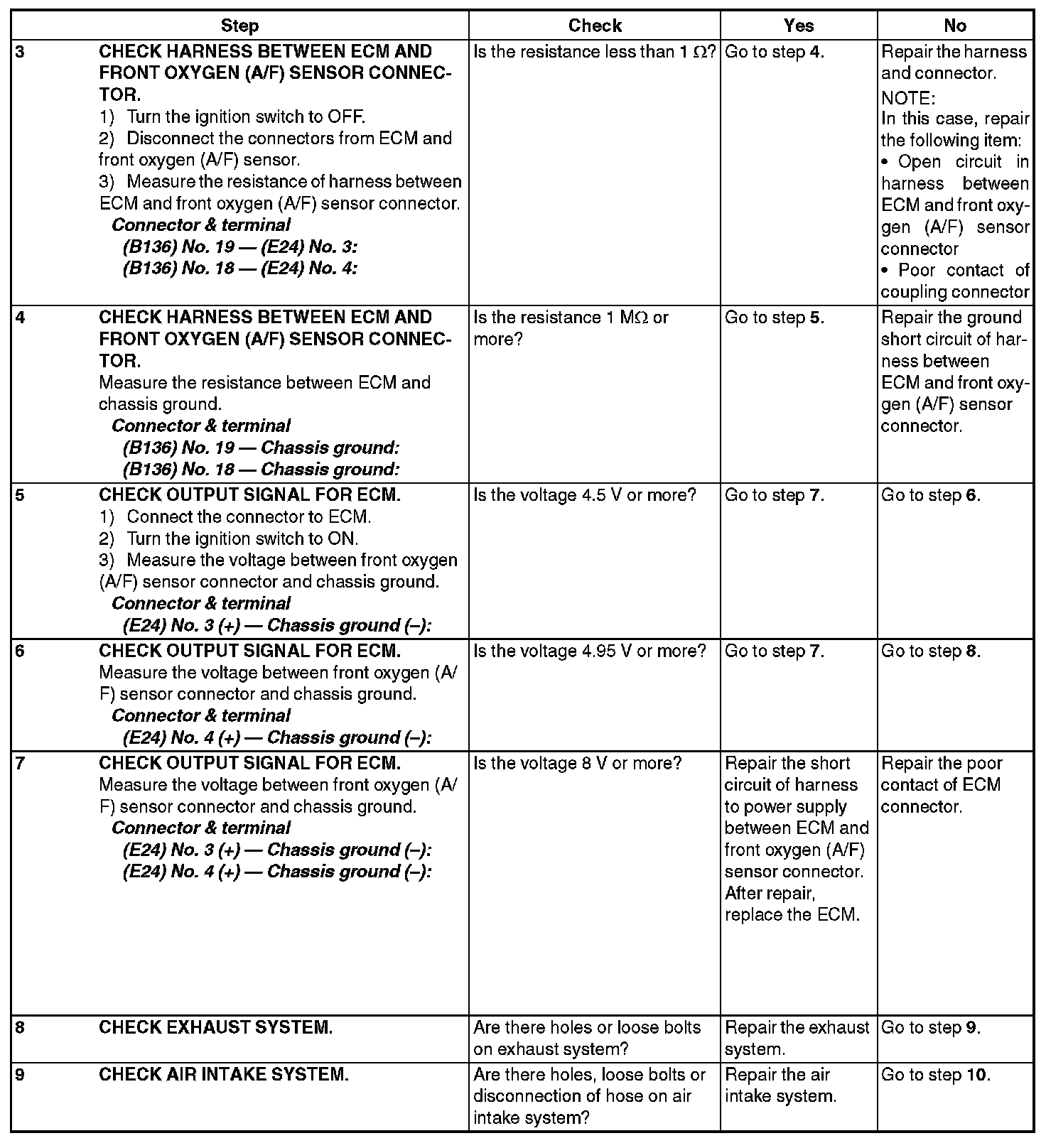

Step 3-9:

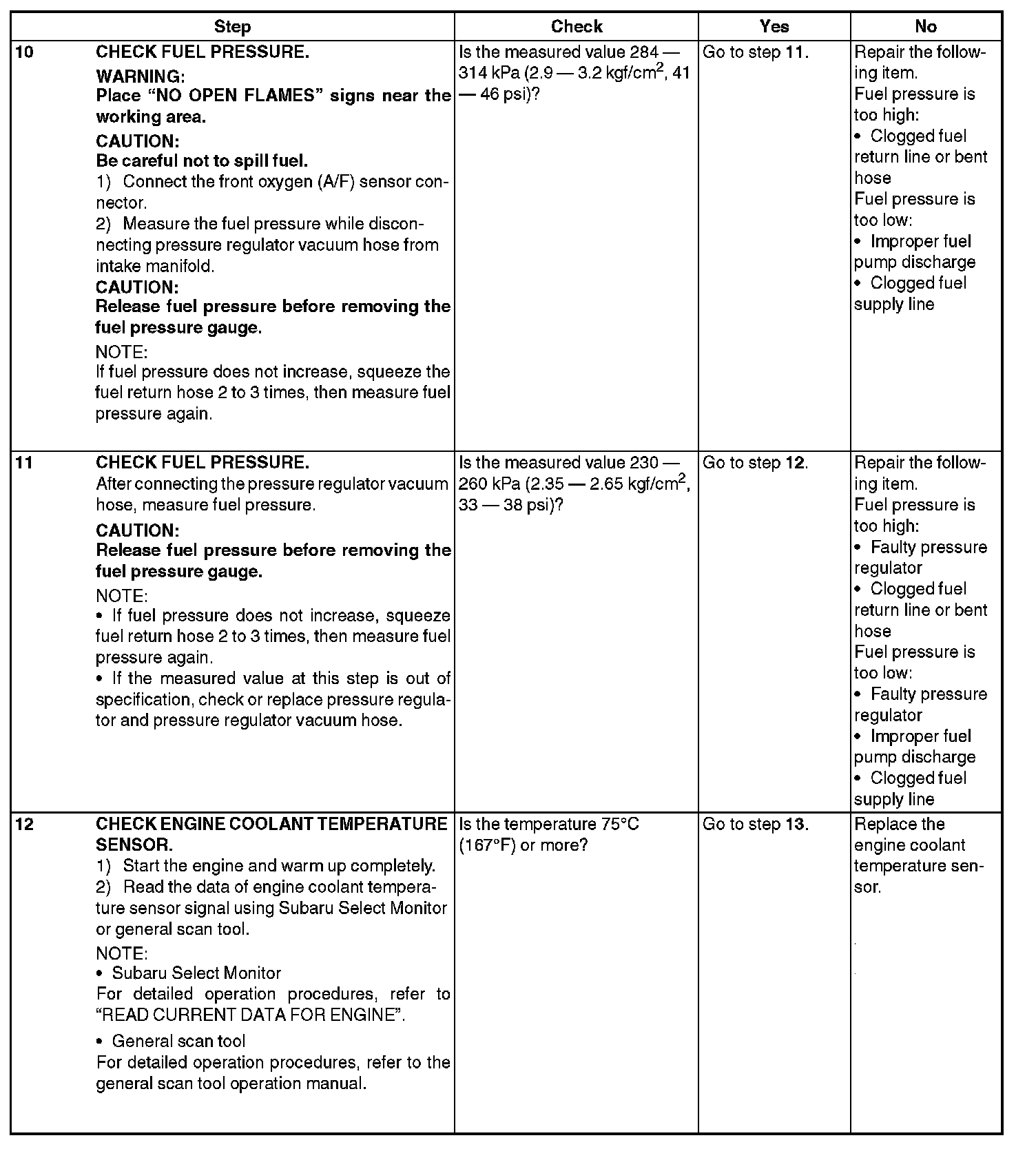

Step 10-12:

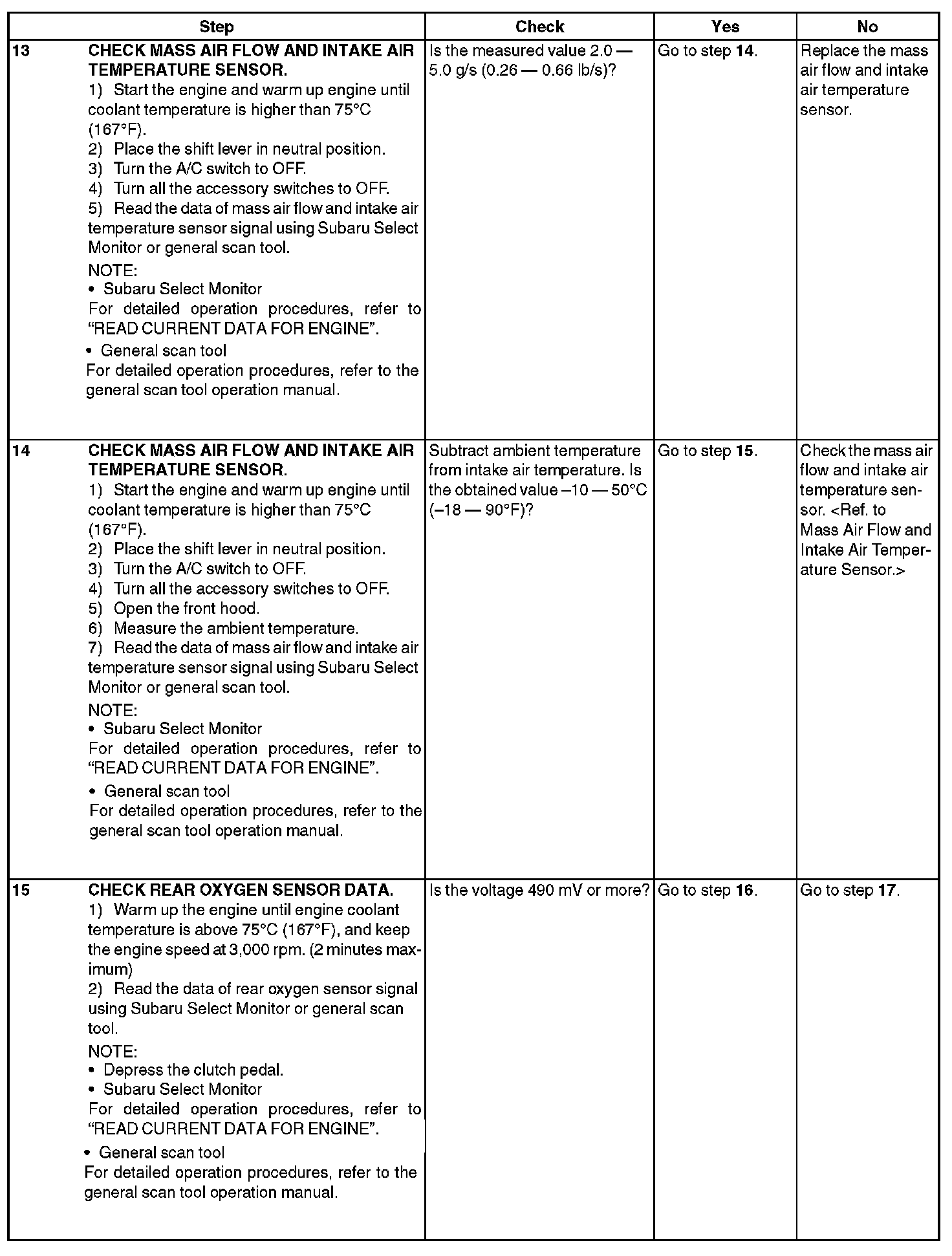

Step 13-15:

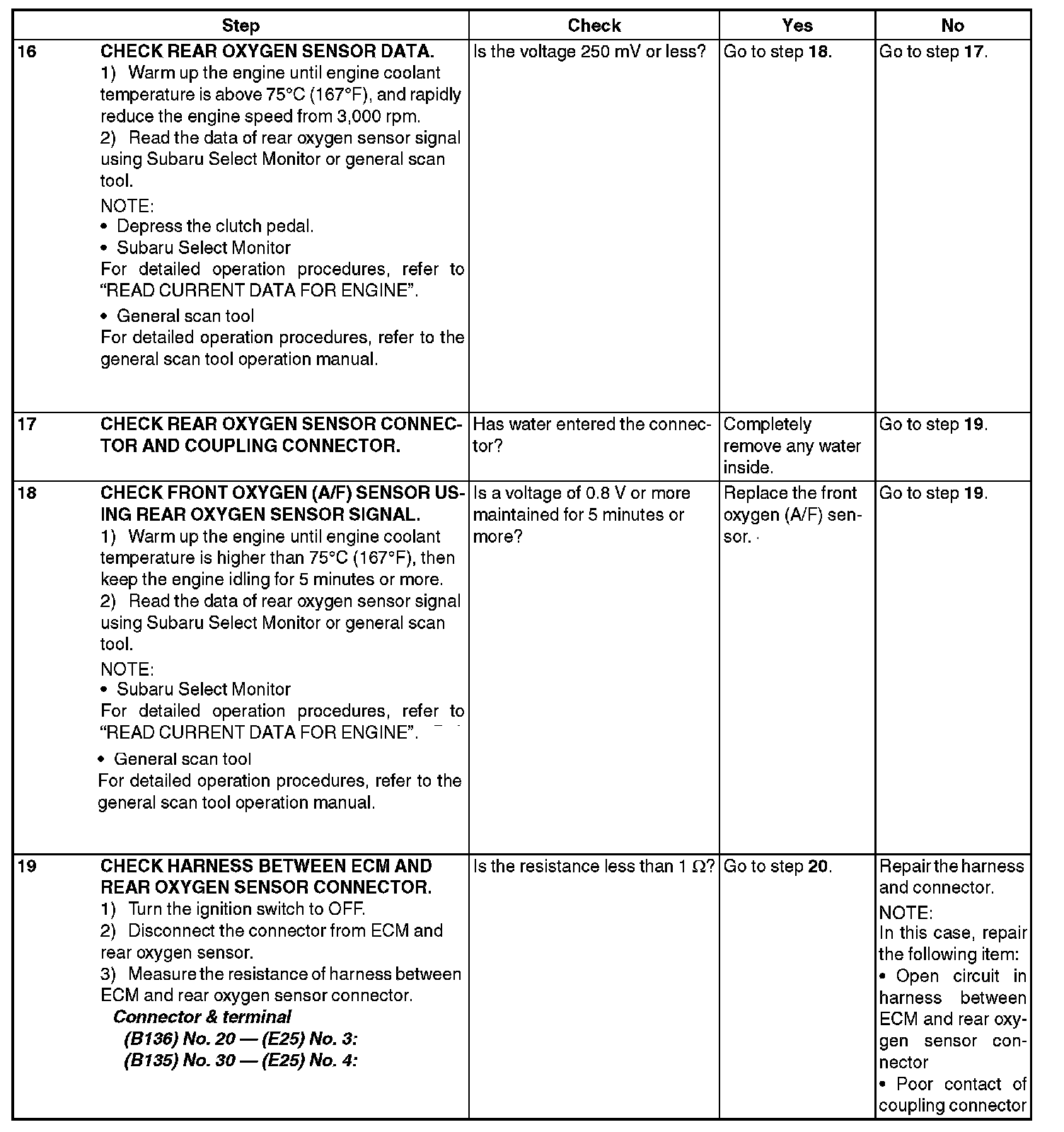

Step 16-19:

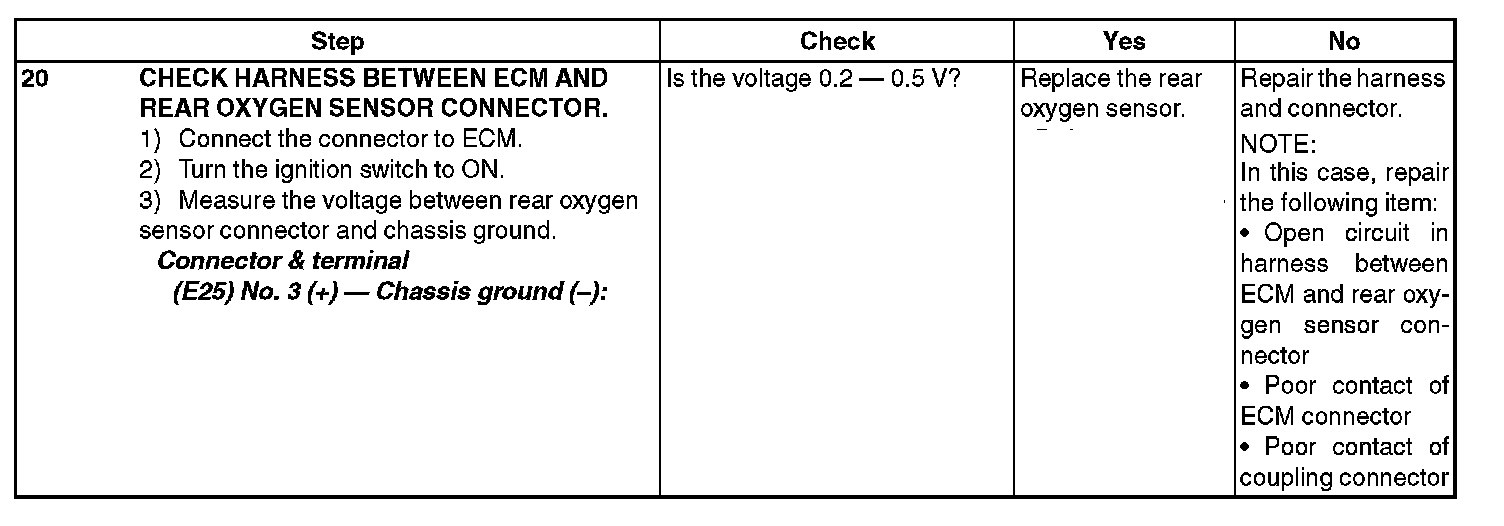

Step 20:
