P2094

DTC P2094 EXHAUST CAMSHAFT POSITION ACTUATOR CONTROL CIRCUIT LOW (BANK 2)

DTC DETECTING CONDITION:
- Immediately at fault recognition
- GENERAL DESCRIPTION P2094


TROUBLE SYMPTOM:
Improper idling

CAUTION: After servicing or replacing faulty parts,perform Clear Memory Mode Clear Memory Mode, and Inspection Mode. Preparation For the Inspection Mode

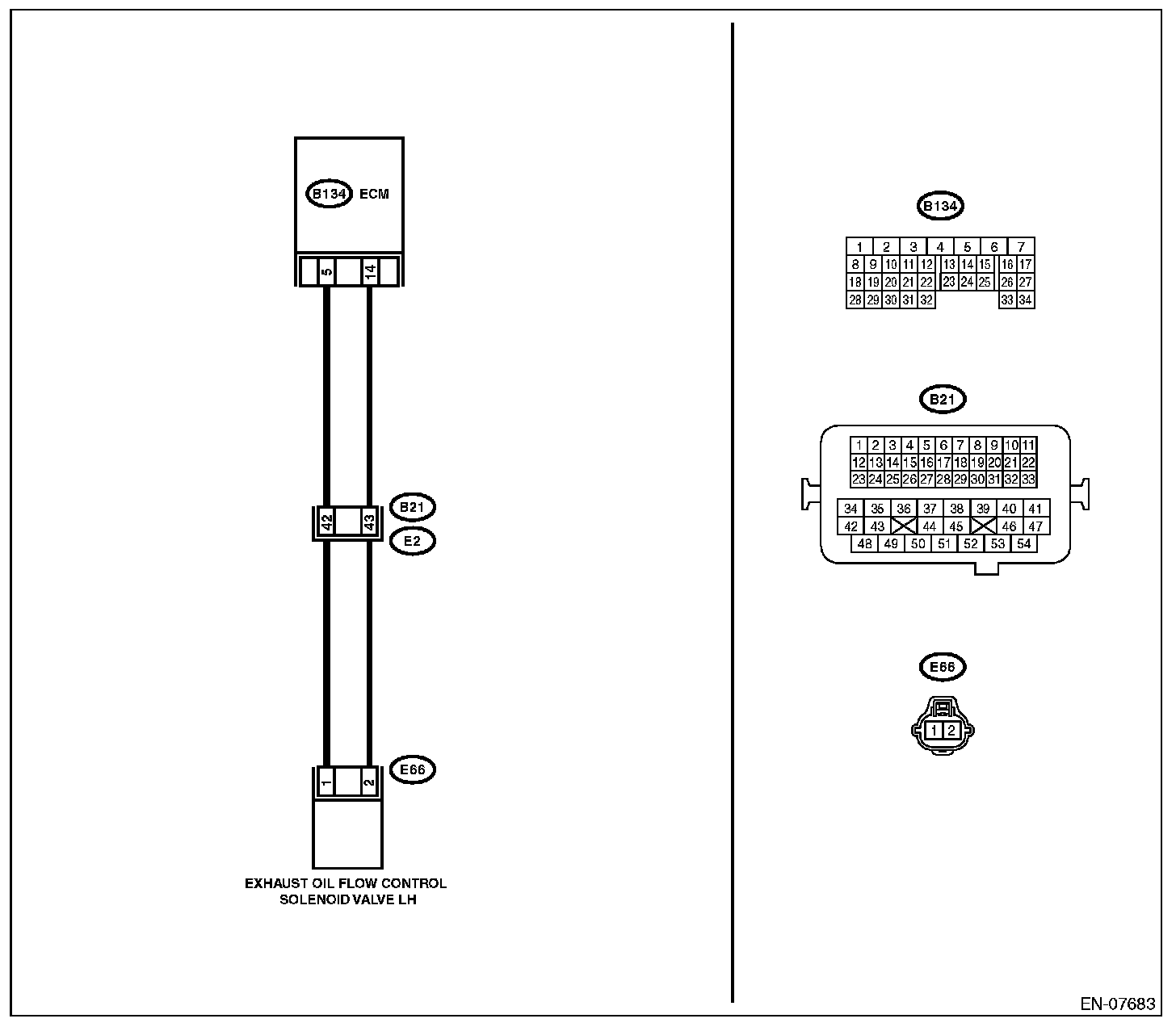

WIRING DIAGRAM:

Step 1-3:
