P2021

DTC P2021 INTAKE MANIFOLD RUNNER POSITION SENSOR/SWITCH CIRCUIT LOW (BANK 2)

DTC DETECTING CONDITION:
- Immediately at fault recognition
- GENERAL DESCRIPTION P2021


TROUBLE SYMPTOM:
- Improper idling
- Engine stalls.
- Poor driving performance

CAUTION: After servicing or replacing faulty parts,perform Clear Memory Mode Clear Memory Mode, and Inspection Mode. Preparation For the Inspection Mode

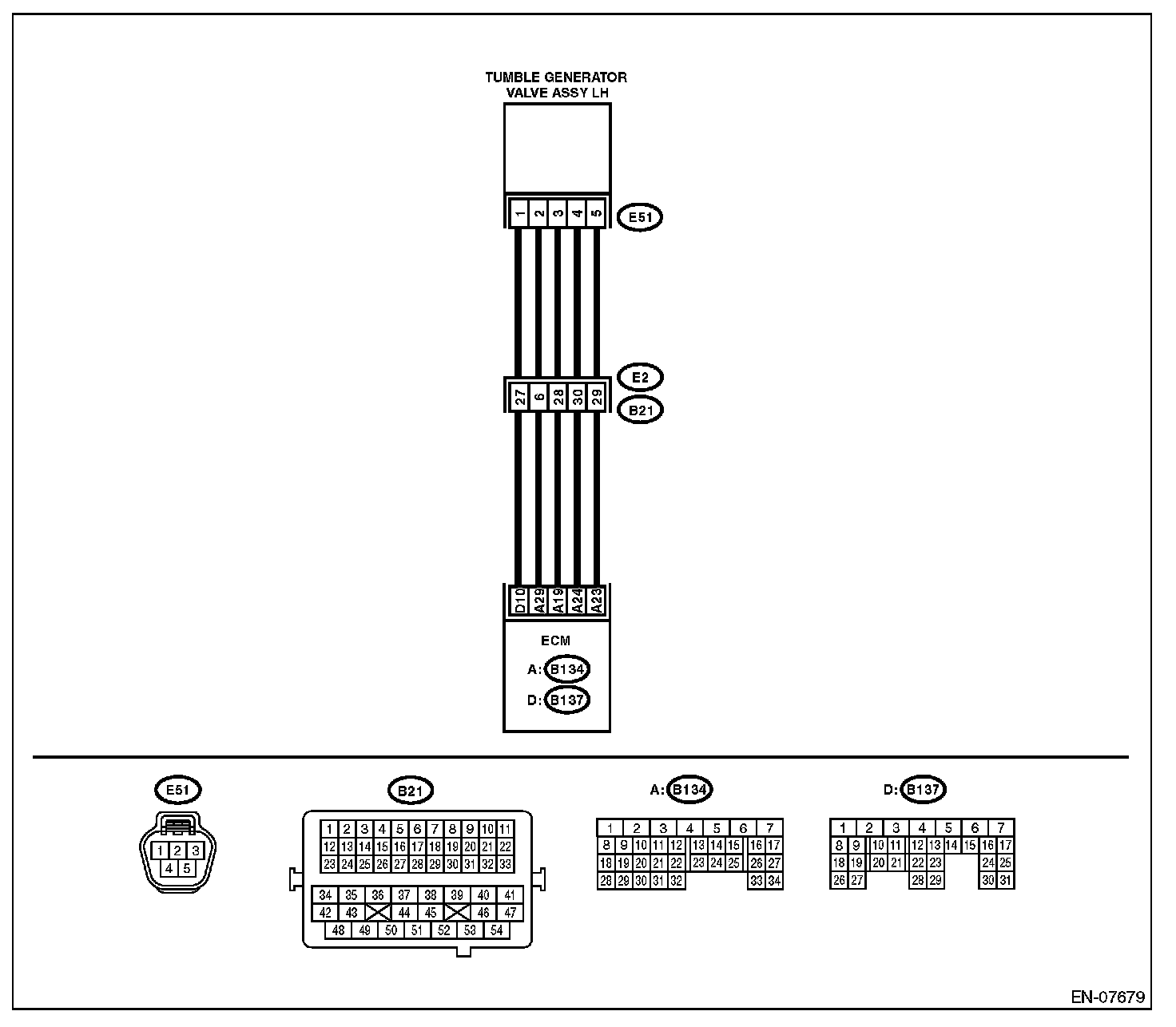

WIRING DIAGRAM:

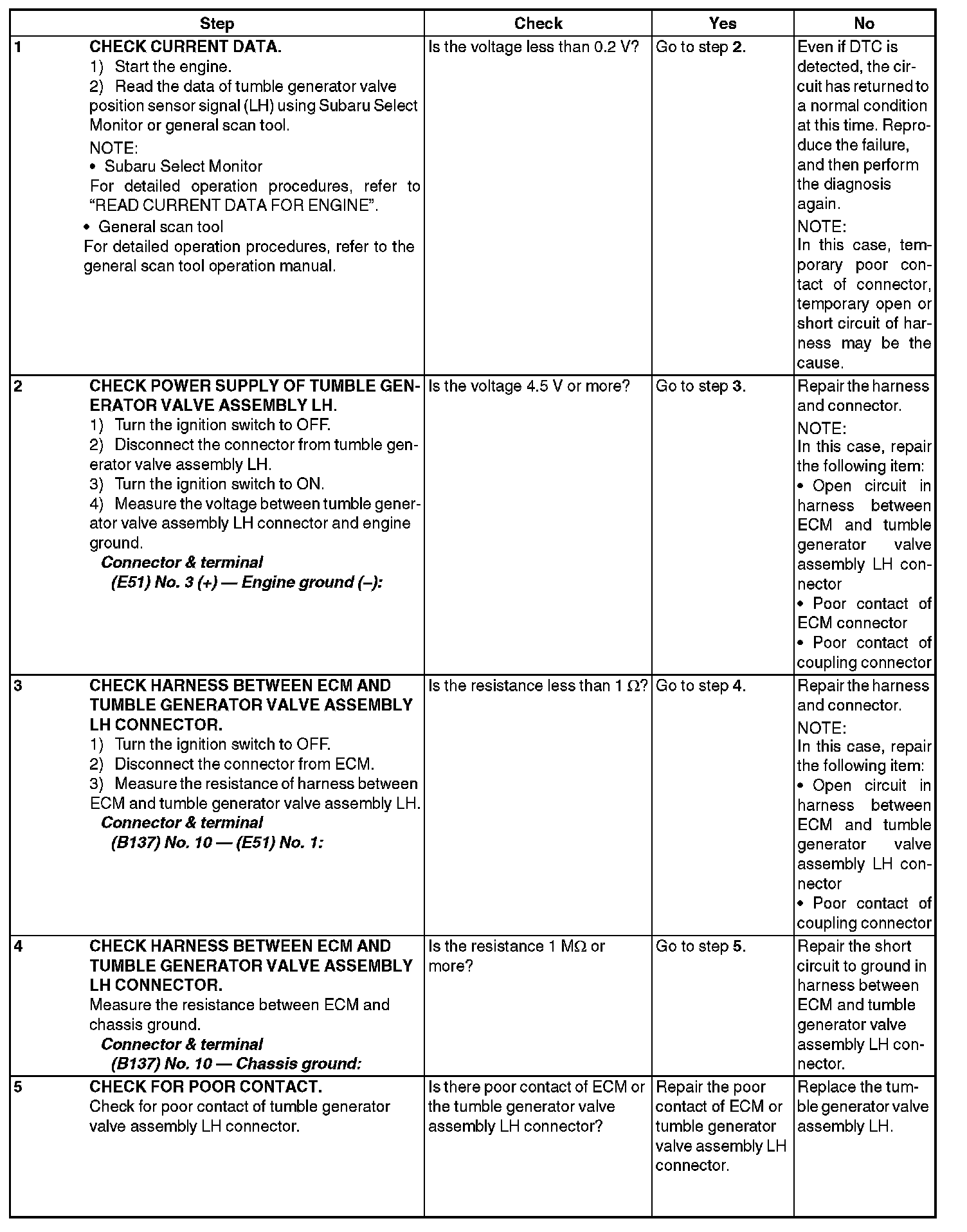

Step 1-5:
