P2009

DTC P2009 INTAKE MANIFOLD RUNNER CONTROL CIRCUIT LOW (BANK 1)

DTC DETECTING CONDITION:
- Immediately at fault recognition
- GENERAL DESCRIPTION P2009


CAUTION: After servicing or replacing faulty parts,perform Clear Memory Mode Clear Memory Mode, and Inspection Mode. Preparation For the Inspection Mode

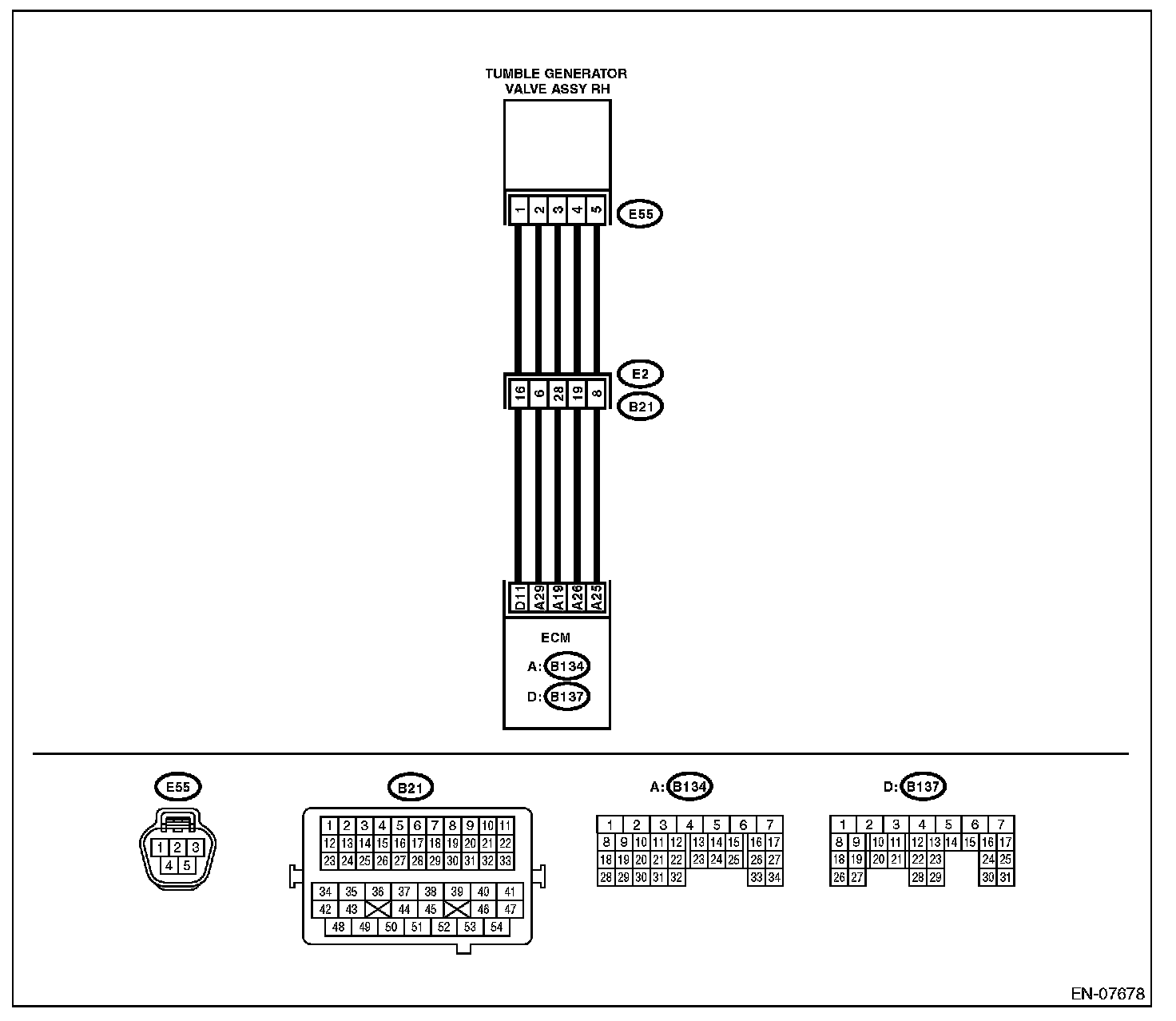

WIRING DIAGRAM:

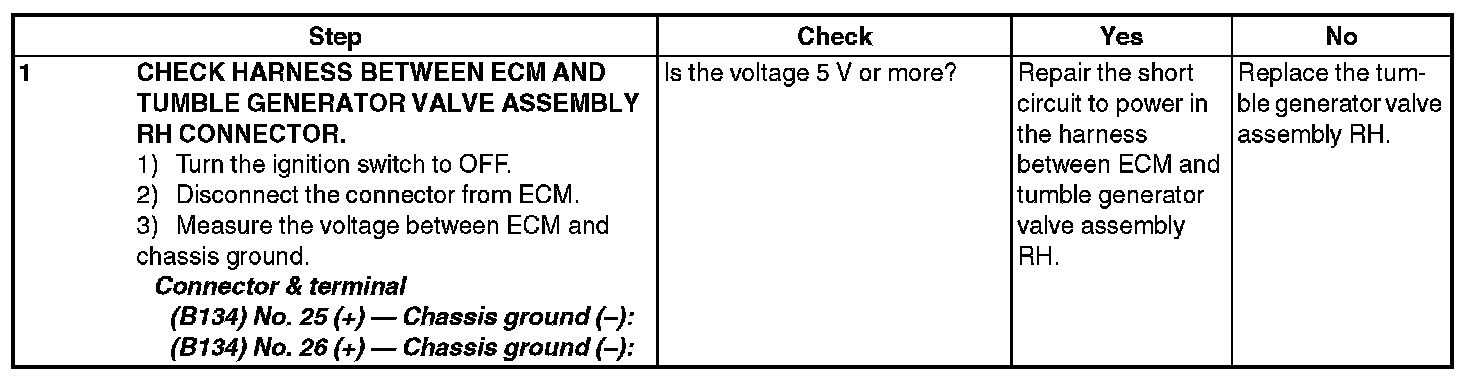

Step 1:
