P2008

DTC P2008 INTAKE MANIFOLD RUNNER CONTROL CIRCUIT/OPEN (BANK1)

DTC DETECTING CONDITION:
- Immediately at fault recognition
- GENERAL DESCRIPTION P2008


CAUTION: After servicing or replacing faulty parts,perform Clear Memory Mode Clear Memory Mode, and Inspection Mode. Preparation For the Inspection Mode

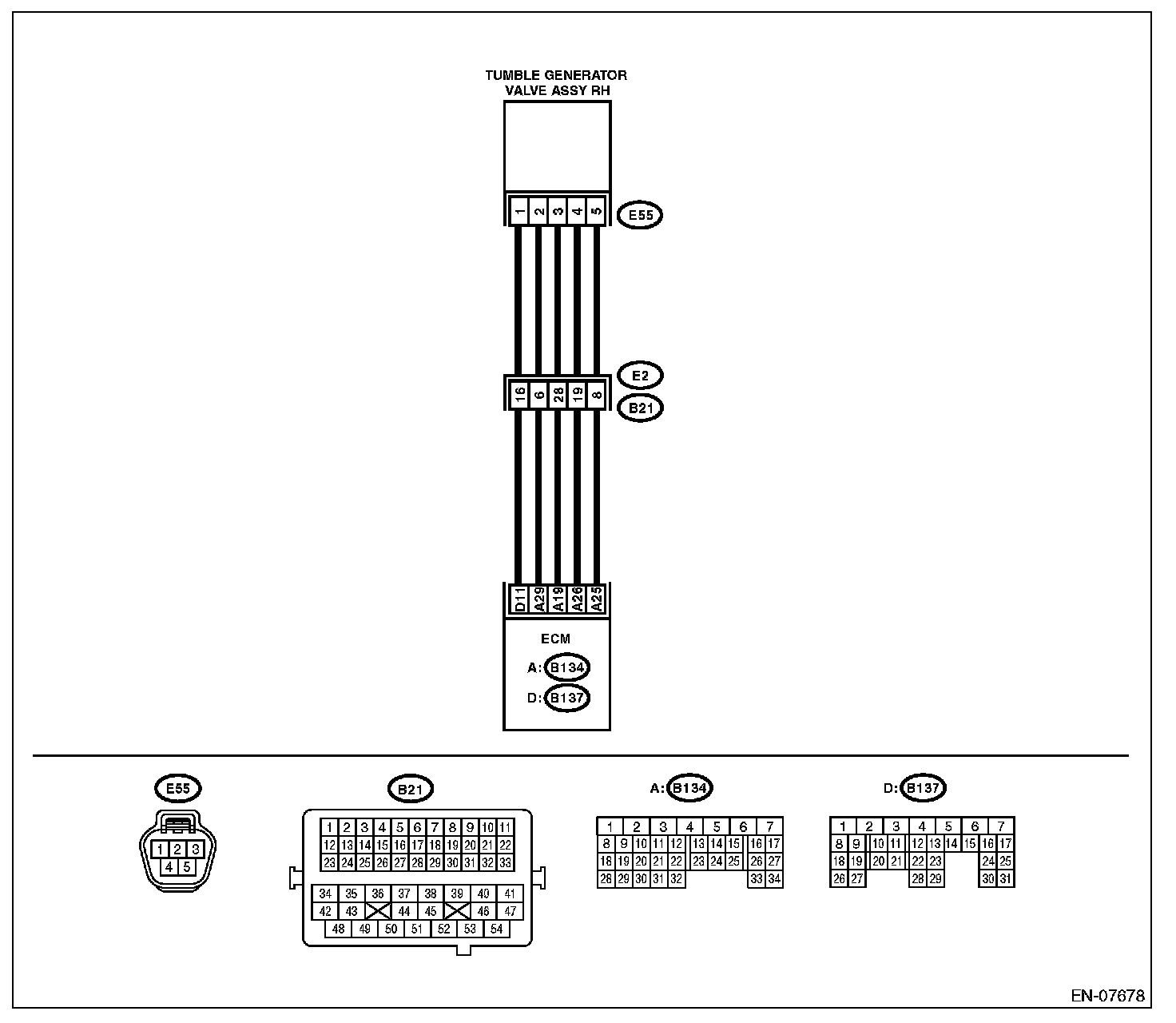

WIRING DIAGRAM:

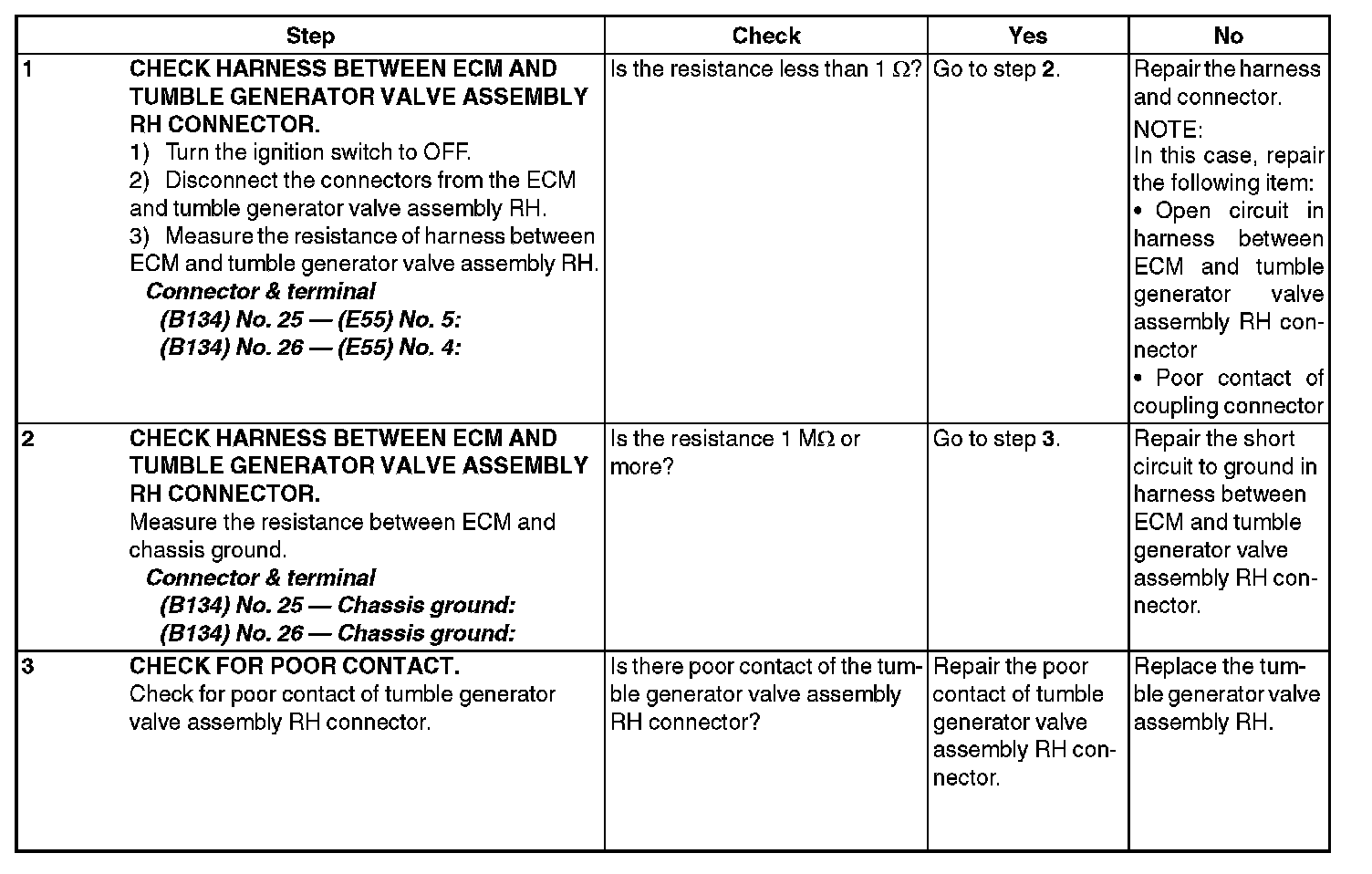

Step 1-3:
