P1153

DTC P1153 02 SENSOR CIRCUIT RANGE/PERFORMANCE (HIGH) (BANK1 SENS0R1)

DTC DETECTING CONDITION:
- Detected when two consecutive driving cycles with fault occur.
- GENERAL DESCRIPTION P1153


CAUTION: After servicing or replacing faulty parts,perform Clear Memory Mode Clear Memory Mode, and Inspection Mode. Preparation For the Inspection Mode

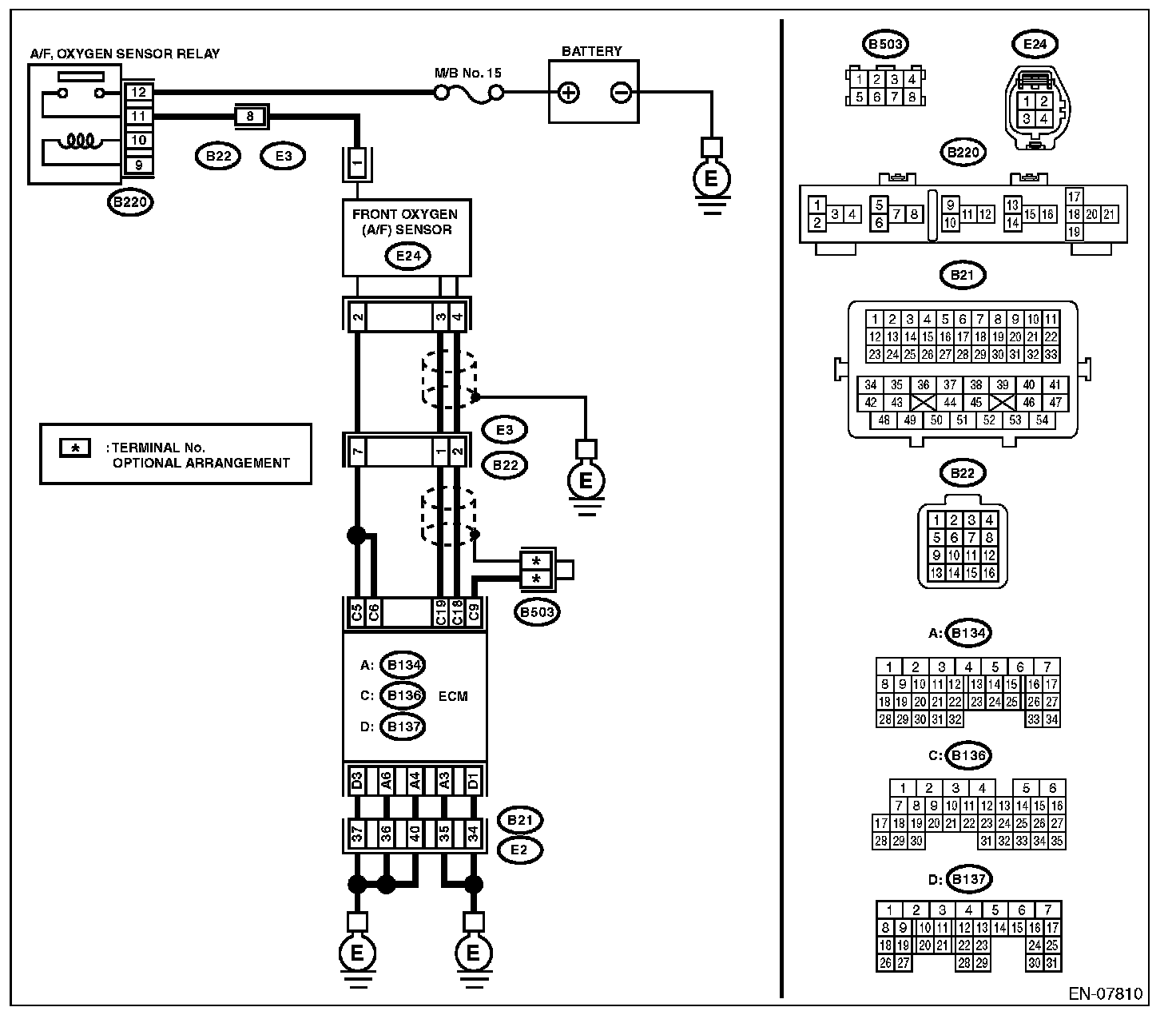

WIRING DIAGRAM:

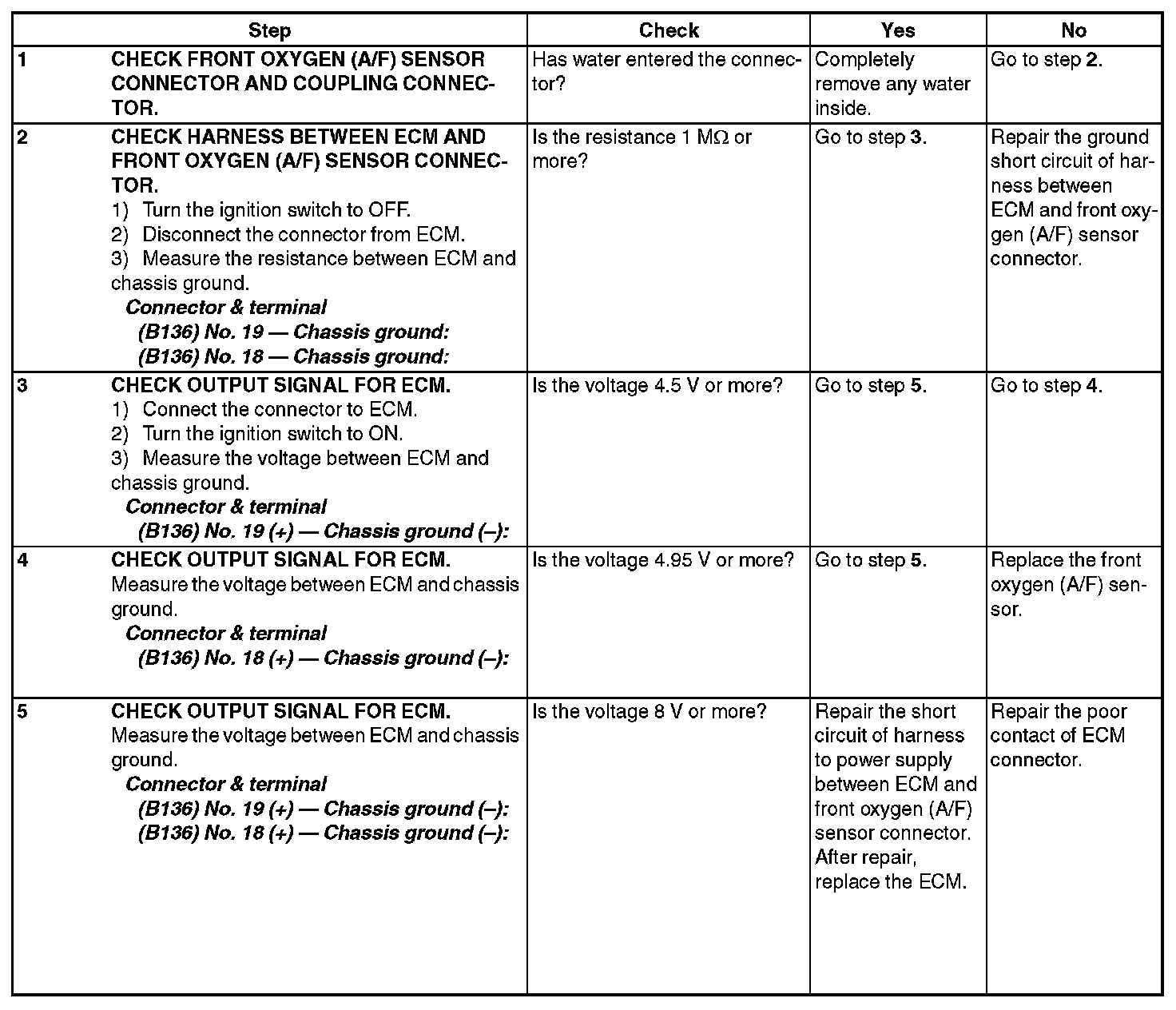

Step 1-5:
