P0365

DTC P0365 CAMSHAFT POSITION SENSOR "B" CIRCUIT (BANK 1)

DTC DETECTING CONDITION:
- Immediately at fault recognition
- GENERAL DESCRIPTION P0365


TROUBLE SYMPTOM:
- Engine stalls.
- Failure of engine to start

CAUTION: After servicing or replacing faulty parts,perform Clear Memory Mode Clear Memory Mode, and Inspection Mode. Preparation For the Inspection Mode

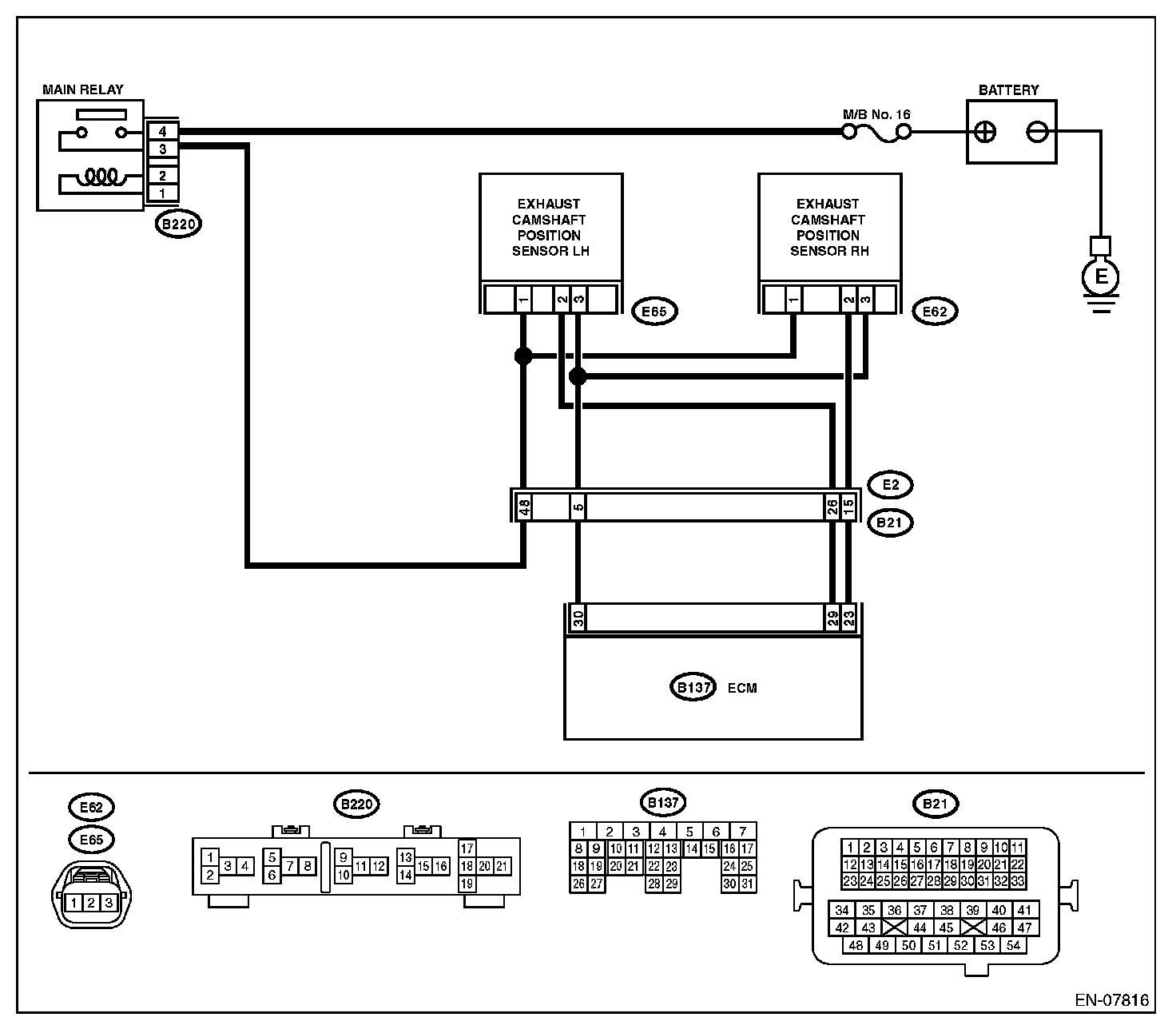

WIRING DIAGRAM:






Step 1-6:
