P0138
DTC P0138 02 SENSOR CIRCUIT HIGH VOLTAGE (BANK 1 SENSOR 2)DTC DETECTING CONDITION:
- Detected when two consecutive driving cycles with fault occur.
- GENERAL DESCRIPTION P0138
CAUTION: After servicing or replacing faulty parts,perform Clear Memory Mode Clear Memory Mode, and Inspection Mode. Preparation For the Inspection Mode

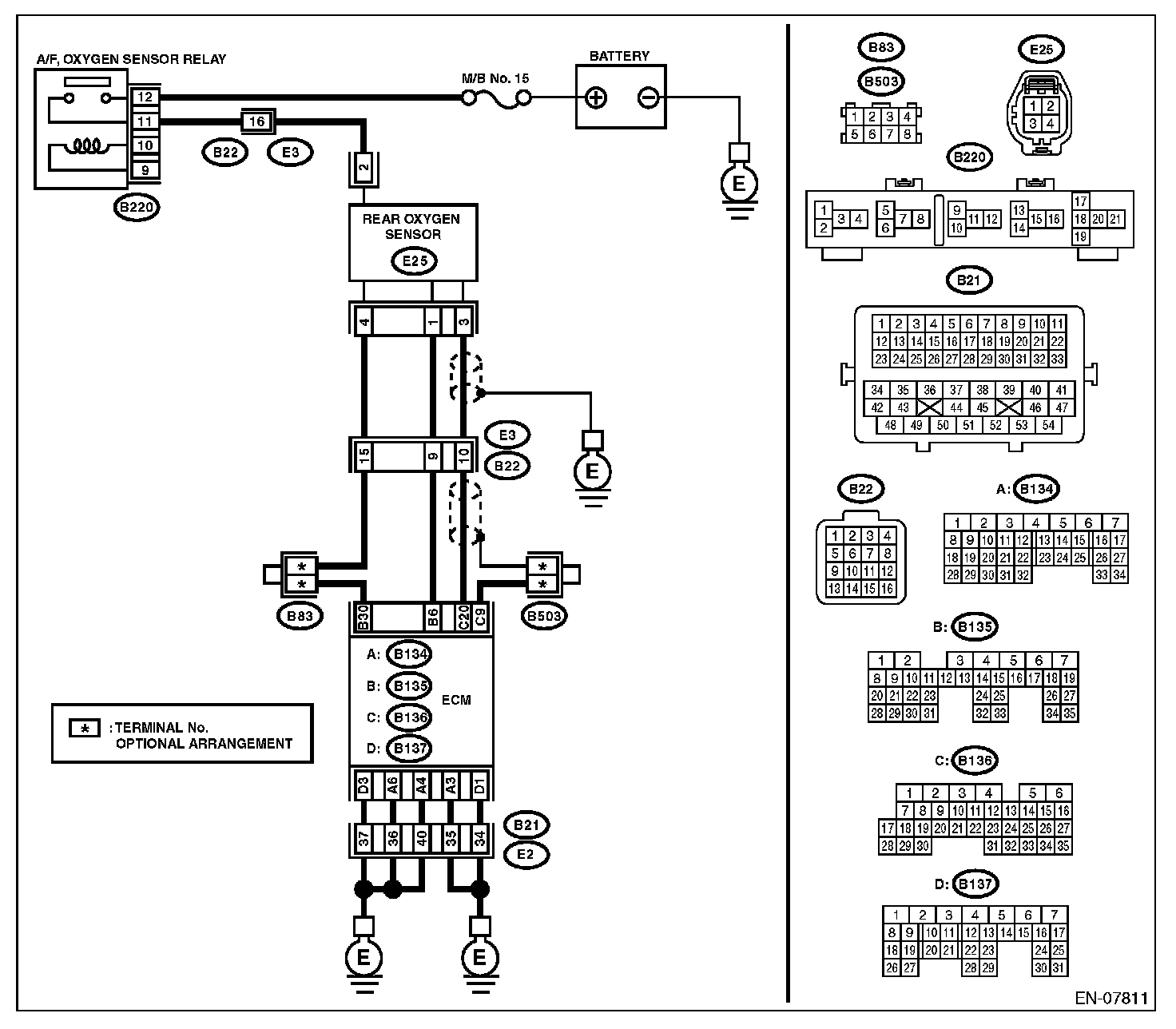

WIRING DIAGRAM:
