P0032

DTC P0032 H02S HEATER CONTROL CIRCUIT HIGH (BANK 1 SENSOR 1)

DTC DETECTING CONDITION:
- Immediately at fault recognition
- GENERAL DESCRIPTION P0032


CAUTION: After servicing or replacing faulty parts,perform Clear Memory Mode Clear Memory Mode, and Inspection Mode. Preparation For the Inspection Mode

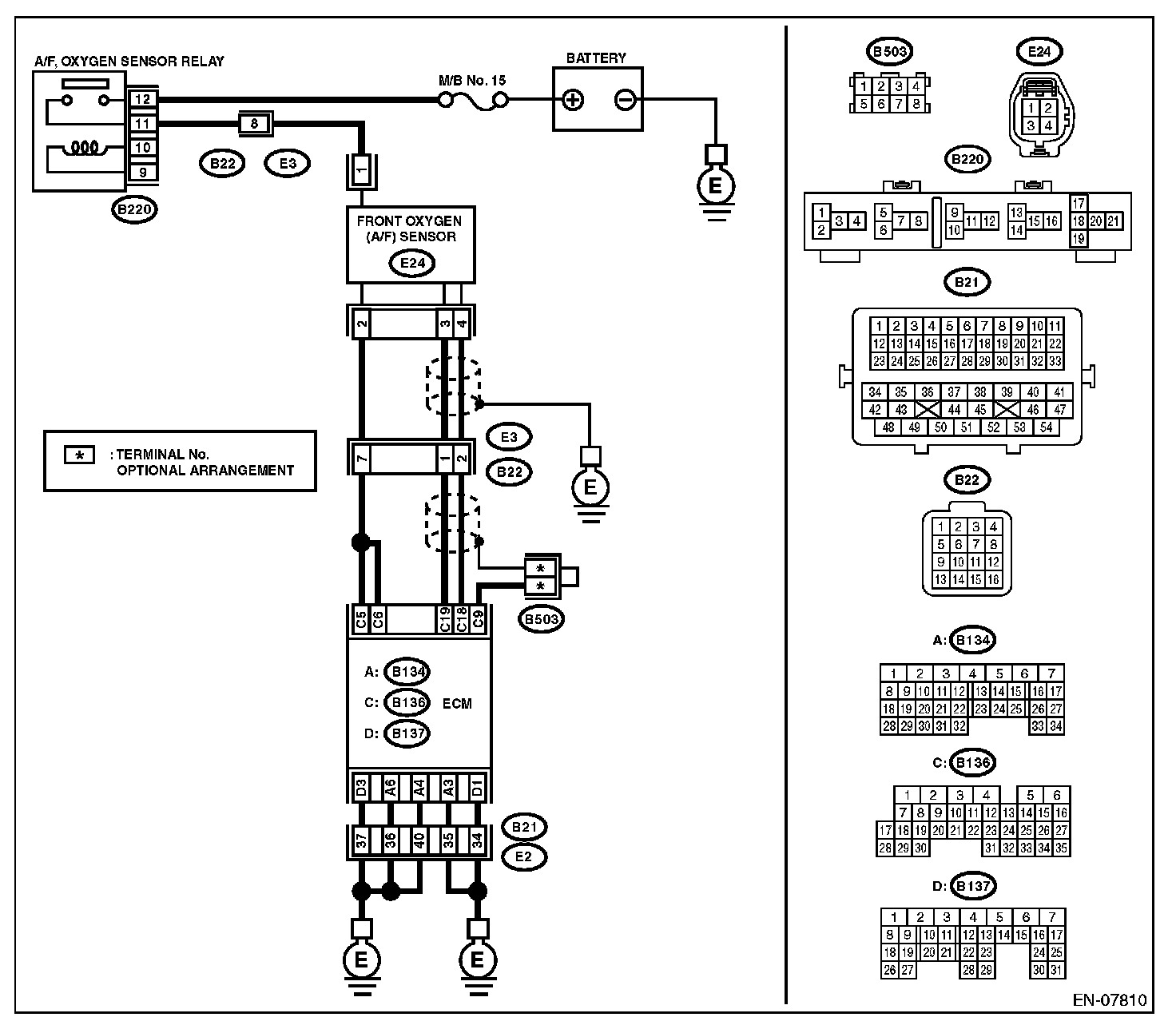

WIRING DIAGRAM:

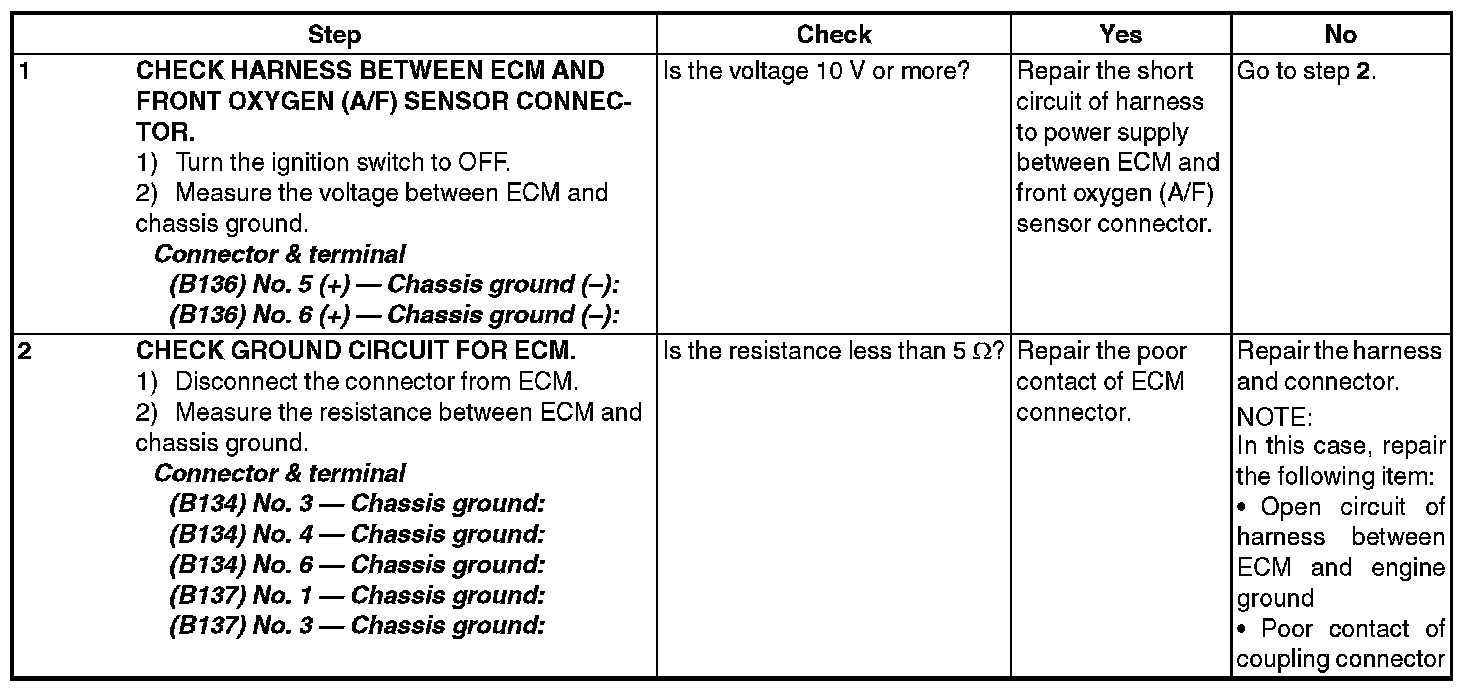

Step 1-2:
