DTC 14
>>
Cruise Control
Cruise Control
DTC 14
Detected when select lever is set in the neutral position, or when malfunction related to neutral position switch occurs.
TROUBLE SYMPTOM:
Cruise control cannot be set.

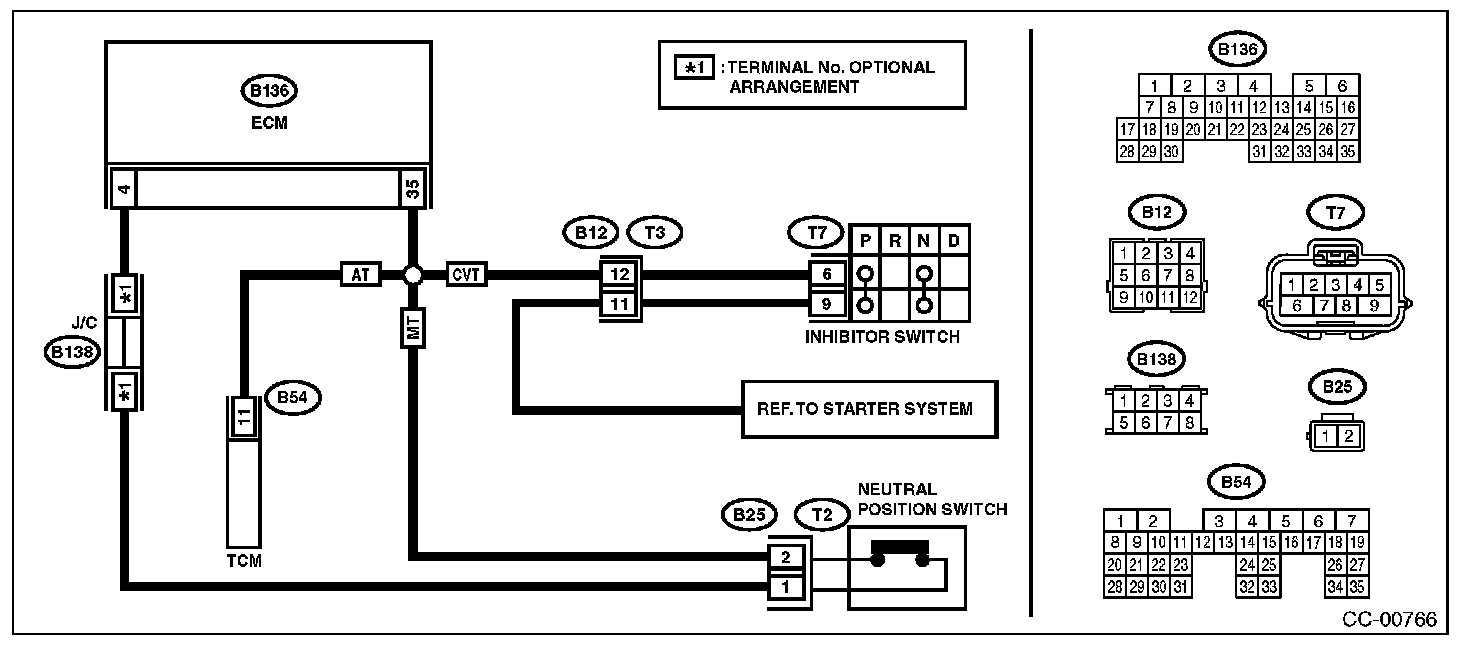

WIRING DIAGRAM:

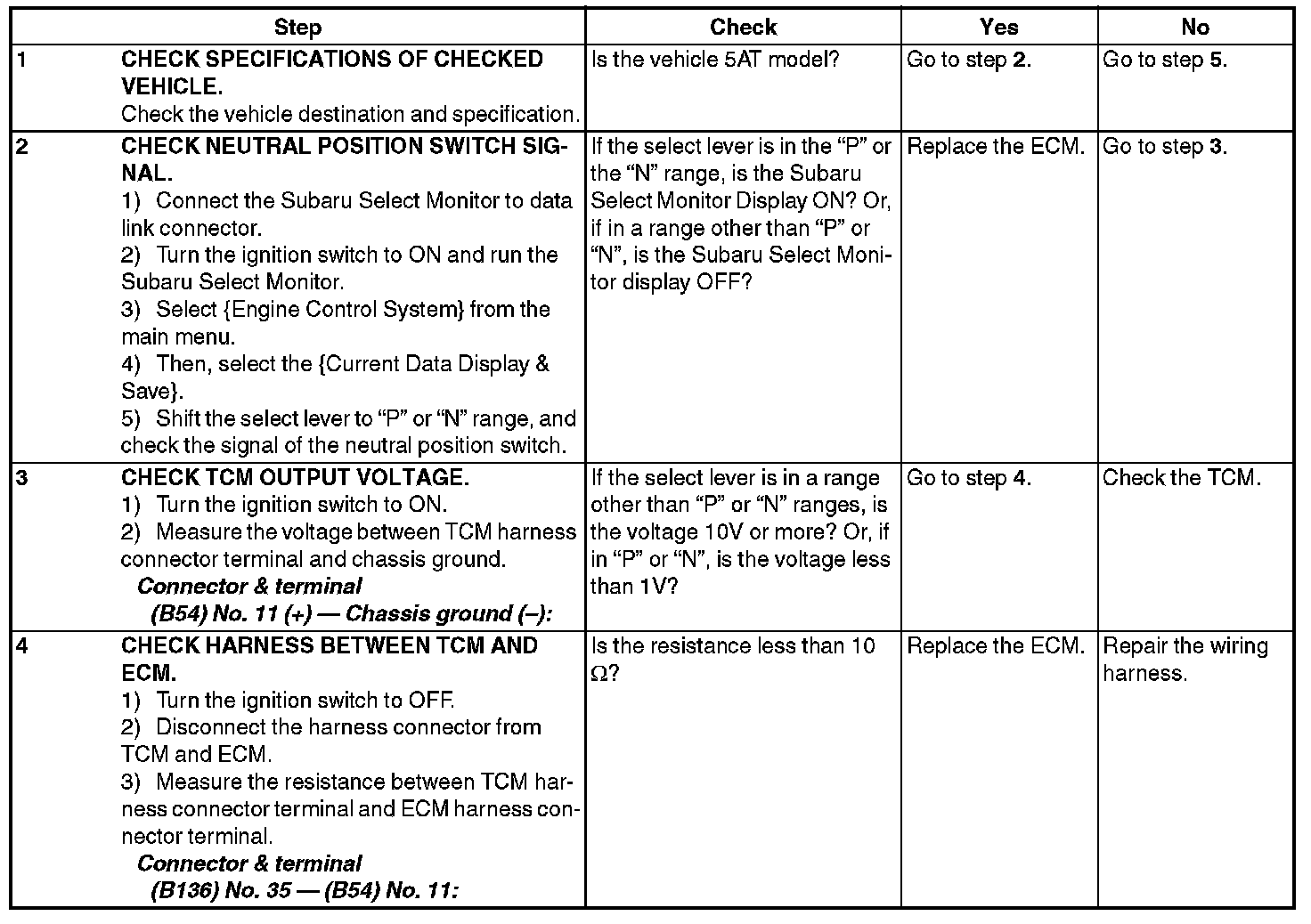

Step 1-4:

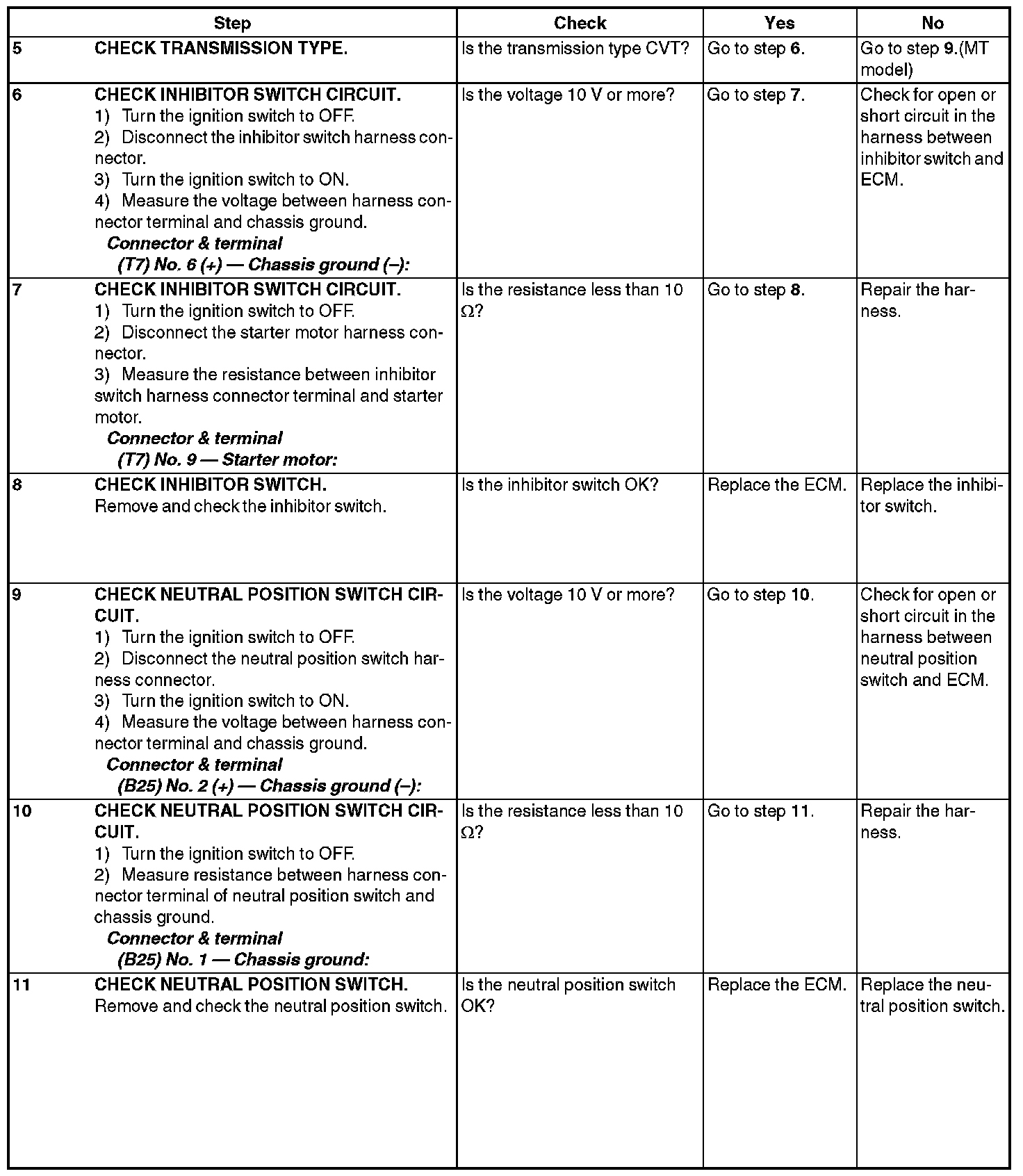

Step 5-11:
