Hydraulic Hose: Service and Repair
Clutch Pipe and HoseREMOVAL
1. Remove the air intake chamber. (Non-turbo model)
2. Remove the intercooler. (Turbo model)
3. Drain the clutch fluid.
4. Disconnect the clutch pipe from the clutch hose and master cylinder.

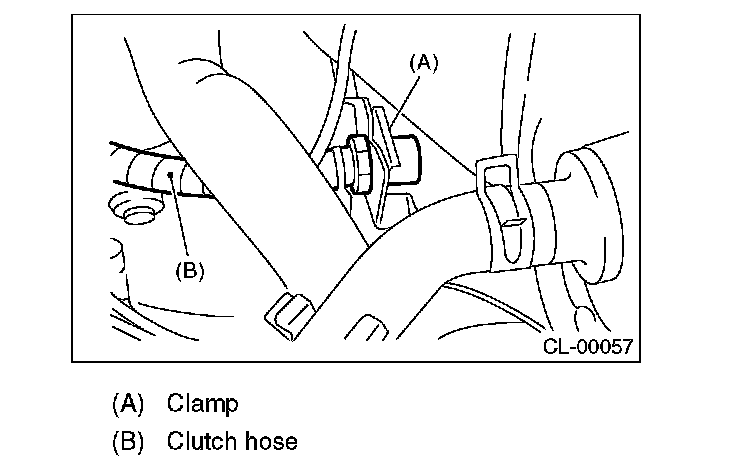

5. Pull out the clamp, then remove the clutch hose from the bracket.
6. Disconnect the hose from the operating cylinder.
7. Remove the bracket.
INSTALLATION
Install in the reverse order of removal.
NOTE: Bleed air from the clutch fluid.

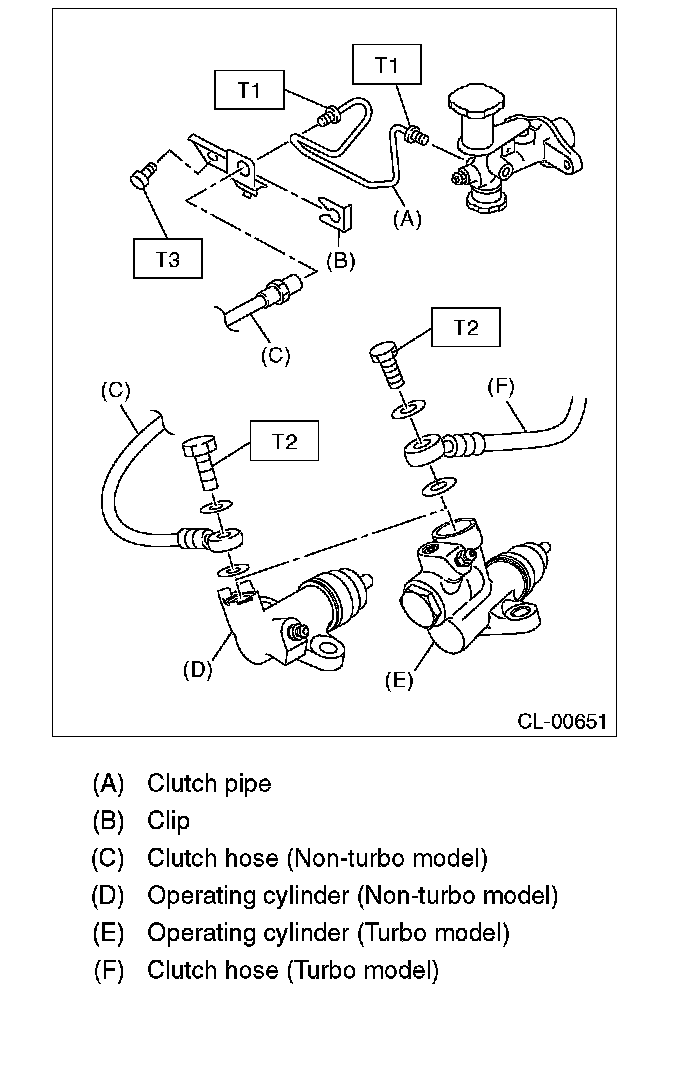

- 5MT model
Tightening torque:
T1: 15 N-m (1.5 kgf-m, 11.1 ft-lb)
T2: 18 N-m (1.8 kgf-m, 13.3 ft-lb)
T3: 25 N-m (2.5 kgf-m, 18.4 ft-lb)

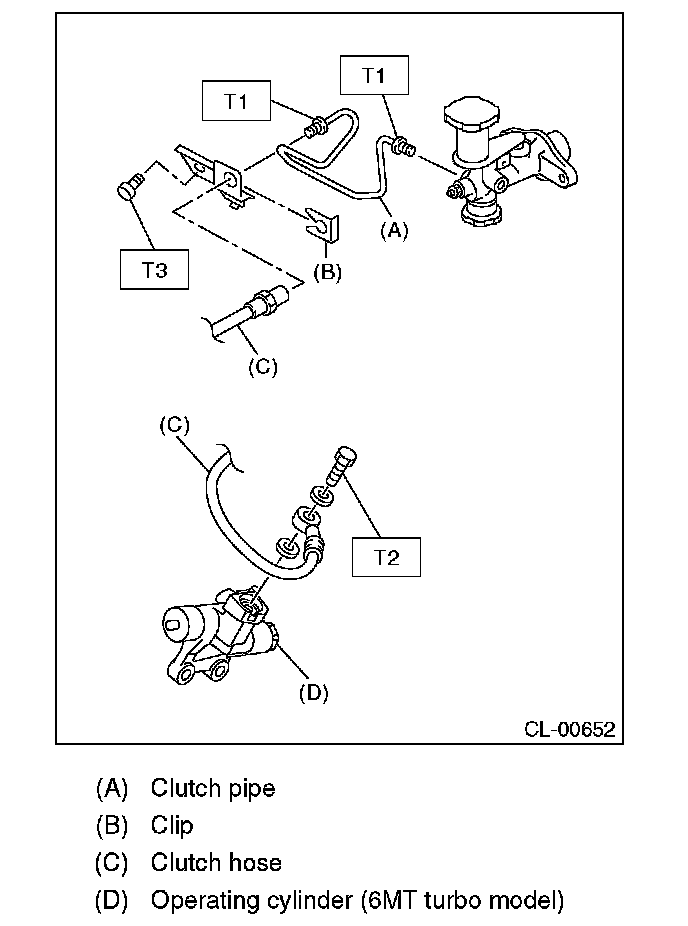

- 6MT model
Tightening torque:
T1: 15 N-m (1.5 kgf-m, 11.1 ft-lb)
T2: 18 N-m (1.8 kgf-m, 13.3 ft-lb)
T3: 25 N-m (2.5 kgf-m, 18.4 ft-lb)
INSPECTION
Check pipes and hoses for cracks, breakage or damage. Check joints for fluid leakage. If any cracks, breakage, damage or leakage is found, repair or replace the defective pipe or hose.
