Overhaul

DISASSEMBLY
1. Shift the select lever to "N" range.

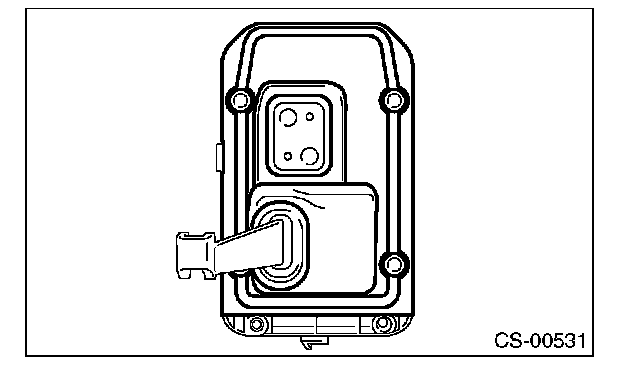

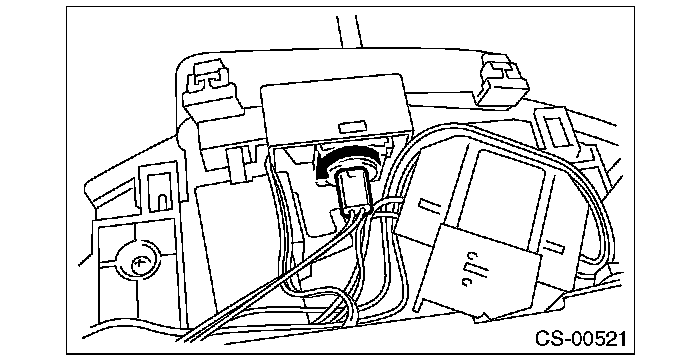

2. Remove the indicator bulb.





3. Remove the grip.
4. Remove the indicator assembly.

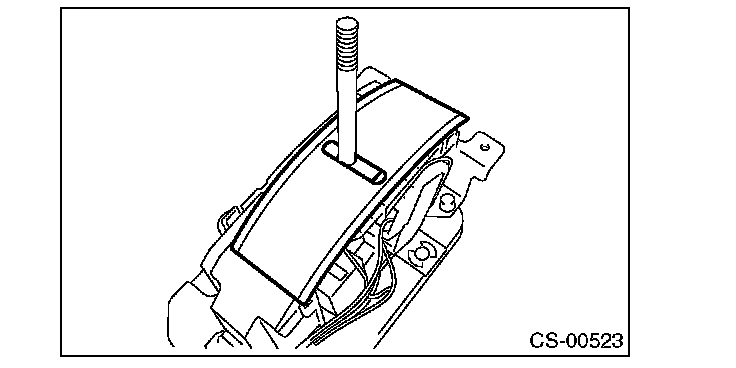

5. Remove the blind.

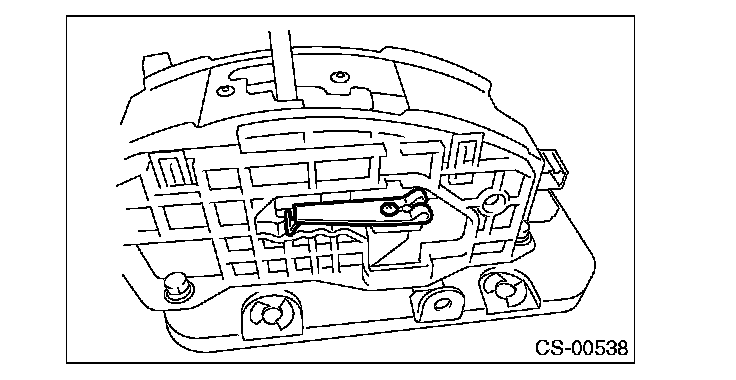

6. Shift the select lever to the "N" range, and then remove the detent spring.

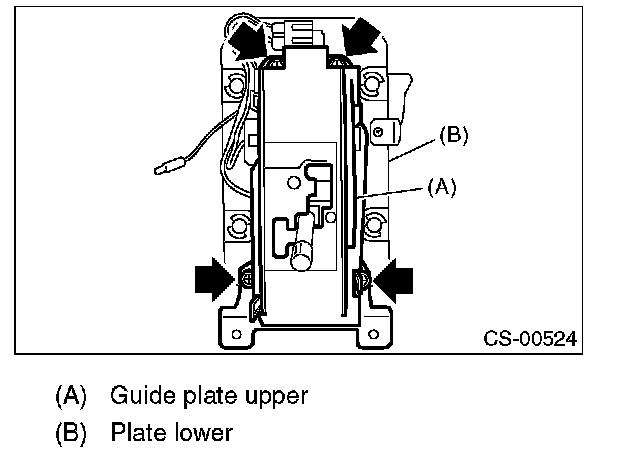

7. Remove the bolt, and separate the guide plate upper from plate lower.

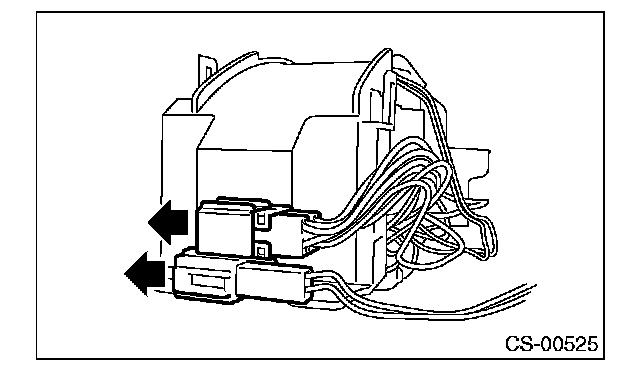

8. Remove the connector from the guide plate upper.

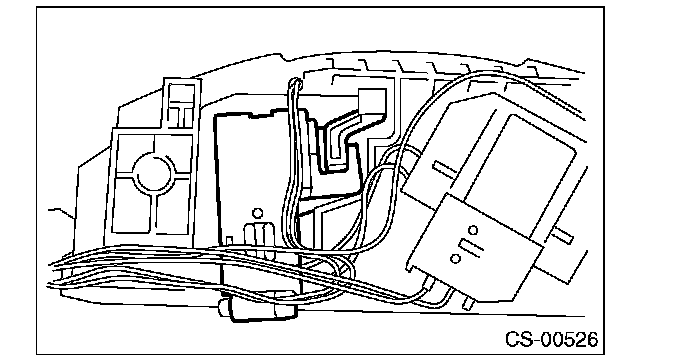

9. Remove the sheet, and remove the shift lock solenoid assembly.

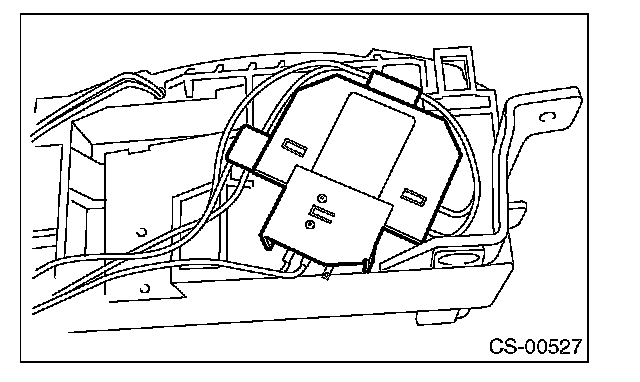

10. Remove the switch assembly.

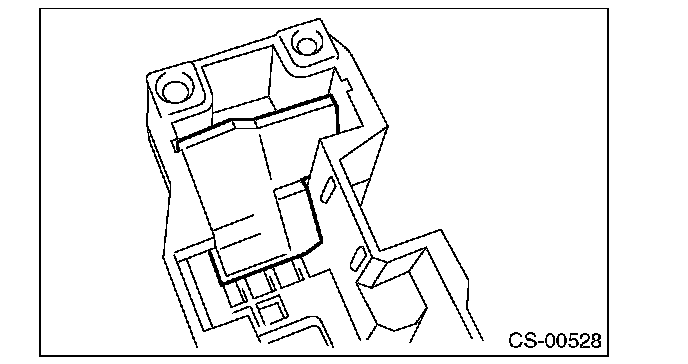

11. Remove the check plate.

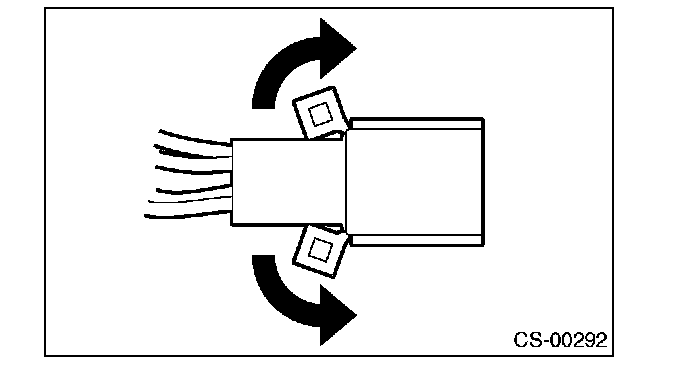

12. Raise the claw of connector.

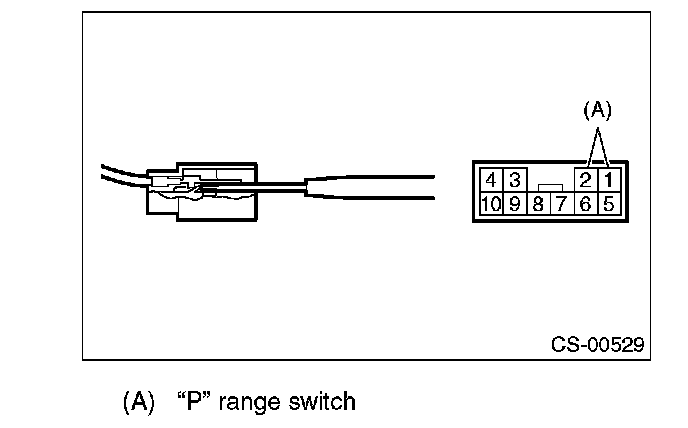

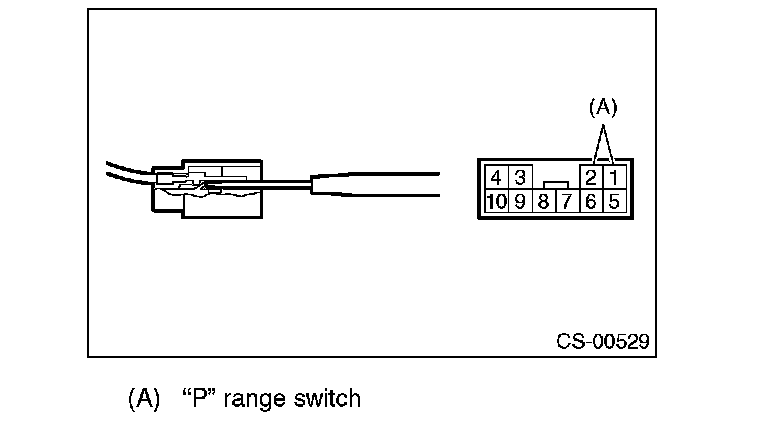

13. Disconnect the terminals of the SPORT mode switch and shift lock solenoid assembly from the connector, using a flat tip screwdriver with a thin tip.

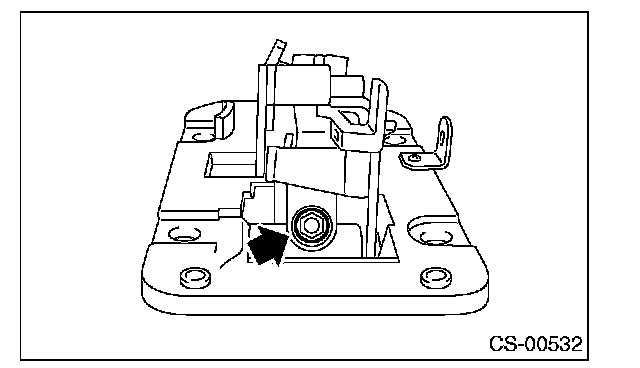

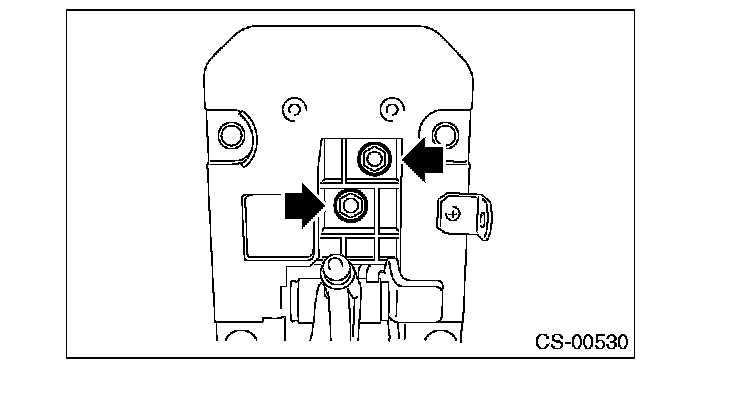

14. Remove the cable bracket.





15. Remove the gasket.





16. Remove the select lever assembly.

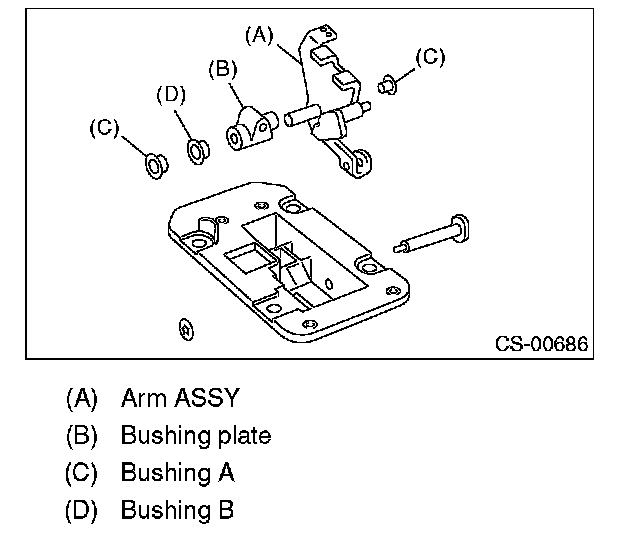

17. Remove the clamp, and remove the arm assembly and bushing plate.





ASSEMBLY
1. Clean all the parts before assembly.
2. Apply NIGTIGHT LYW No. 2 grease or the equivalent to each part.
3. Assemble in the reverse order of disassembly.

NOTE:
- Refer to "COMPONENT" for each tightening torque.
- Connect the switch terminal to the connector.





4. After completing installation, shift the select lever from "P" range to "D" range, then check whether the indicator and select lever matches, whether the pointer and position mark matches and what the operating force is.

INSPECTION
1. Inspect the removed parts by comparing with new parts for deformation, damage and wear. Repair or replace if defective.
2. Confirm the select lever operating condition before assembly. Normal if it operates smoothly.
