Home >> Subaru >> 2009 >> Outback F6-3.0L DOHC >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Shift Interlock >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Key Interlock Cannot Be Locked or Released

Key Interlock Cannot Be Locked or Released

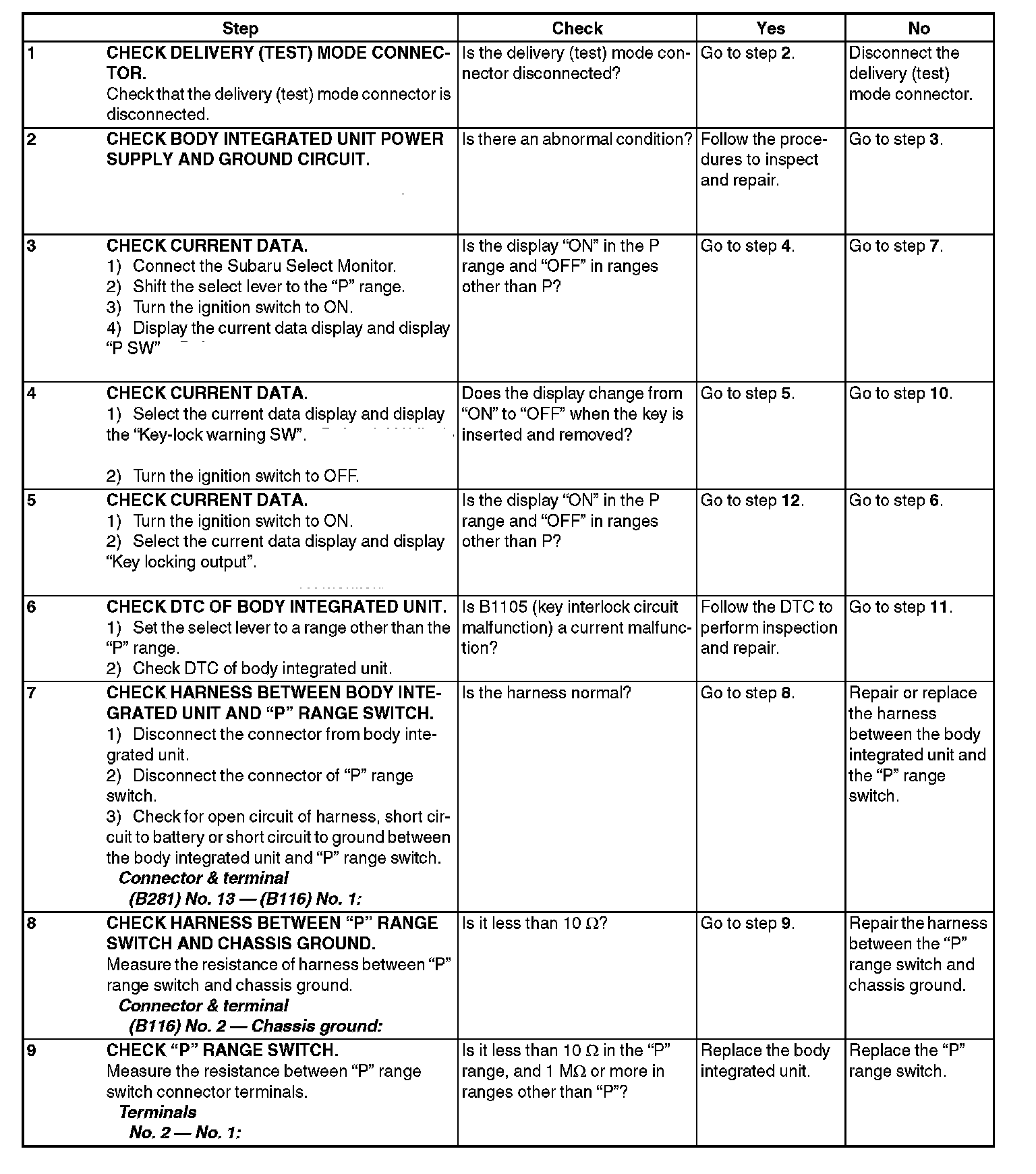

Step 1-Step 9:

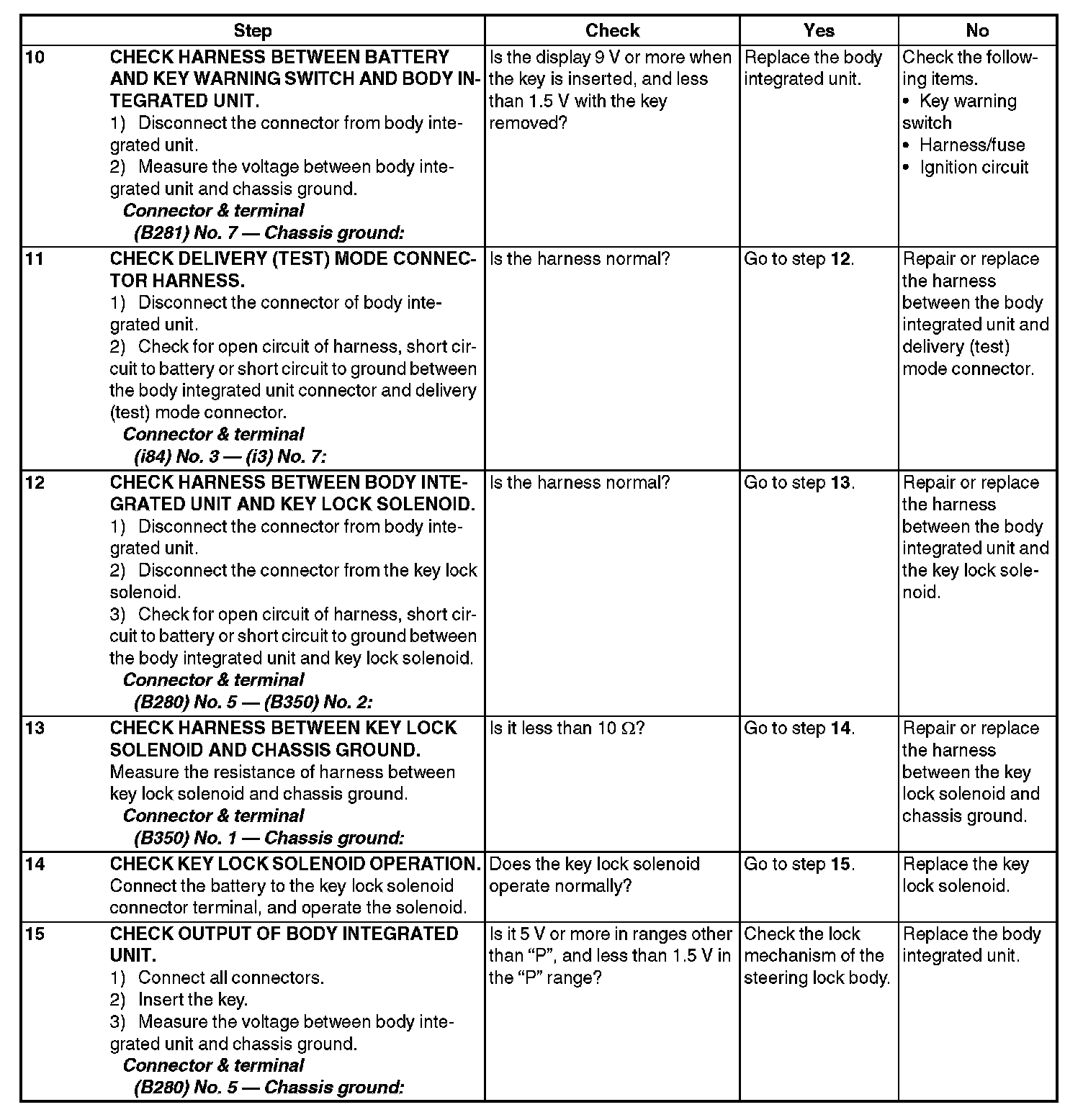

Step 10-Step 15:
