Torque Converter Turbine Speed Sensor

Turbine Speed Sensor 1
REMOVAL
1. Remove the intercooler. (Turbo model.
2. Remove the air intake chamber. (Non-turbo model.
3. Lift up the vehicle.

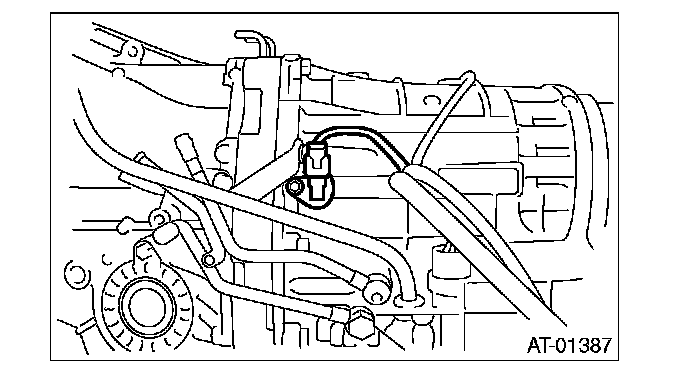

4. Disconnect the turbine speed sensor 1 connector.





5. Remove the turbine speed sensor 1

INSTALLATION

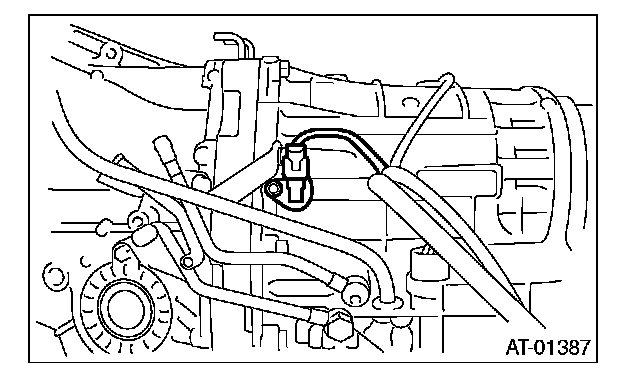

1. Install the turbine speed sensor 1.
Tightening torque: 7 N-m (0.7 kgf-m, 5.2 ft-lb)
2. Connect the turbine speed sensor 1 connector.





3. Lower the vehicle.
4. Install the intercooler. (Turbo model.
5. Install the air intake chamber. (Non-turbo model.
