Automatic Transmission Dipstick - Dipstick Tube: Service and Repair

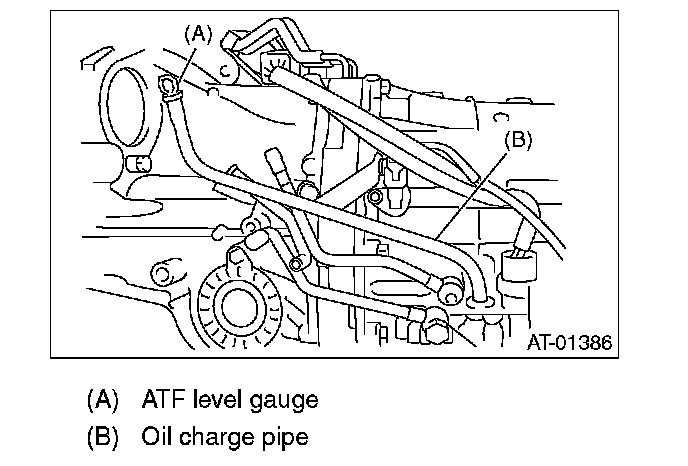

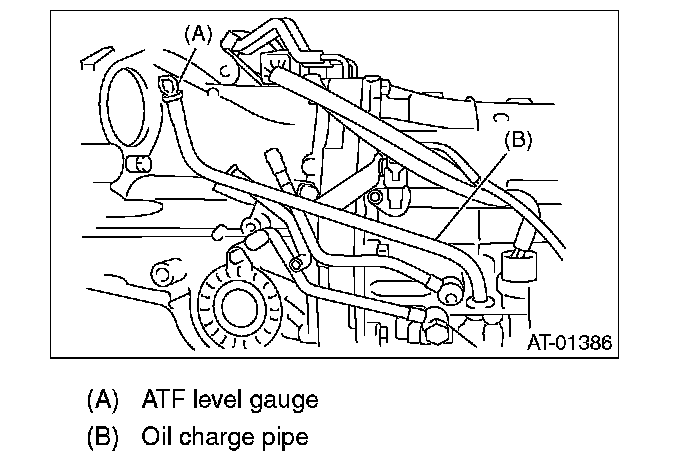

Oil Charge Pipe
REMOVAL
1. Remove the intercooler. (Turbo model.
2. Remove the air intake chamber. (Non-turbo model.
3. Remove the oil charge pipe, and then remove the O-ring from flange side.





INSTALLATION
1. Install the oil charge pipe with a new O-ring.

NOTE: Use new bolts.

Tightening torque: 38 N-m (3.9 kgf-m, 28.0 ft-lb)





2. Install the intercooler. (Turbo model.
3. Install the air intake chamber. (Non-turbo model.

INSPECTION
Make sure the oil charge pipe is not deformed or damaged.
