Rear Suspension

Rear Shock Absorber
REMOVAL
1. Remove the luggage floor mat. (Wagon model)
2. Roll up the trunk side trim. (Sedan model)
3. Lift up the vehicle, and then remove the rear wheels.

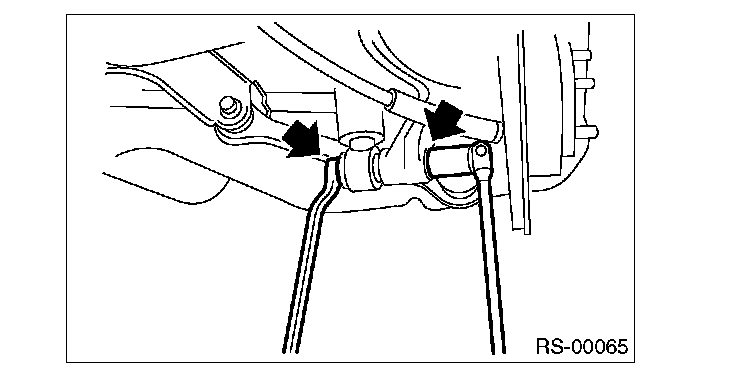

4. Remove the bolts which secure the shock absorber to rear arm.





5. Support the shock absorber using a jack.

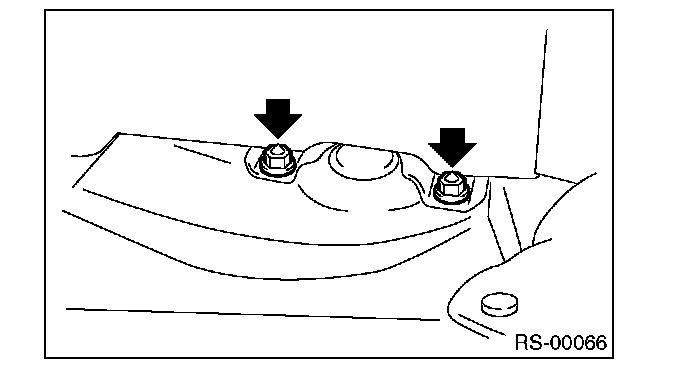

6. Remove the nuts which secure the shock absorber mount to vehicle.





7. Remove the shock absorber.

INSTALLATION
1. Support the shock absorber using a jack.
2. Using new self-locking nuts, secure the shock absorber to vehicle.
Tightening torque: 30 N-m (3.1 kgf-m, 22.4 ft-lb)

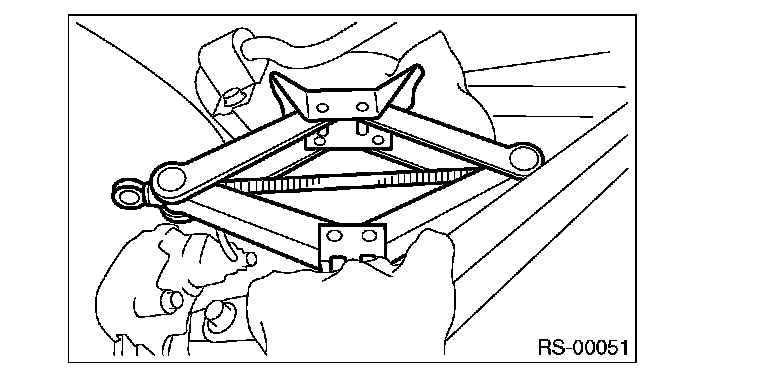

3. Set the vehicle equipped jack upside down, between the rear link and sub frame. Adjust the position of the jack, and align the attachment position of the rear shock absorber and rear arm. Using new self-locking nuts, temporary tighten the bolt.

CAUTION: Protect the rear link and sub frame from being damaged by putting a waste cloth between the contact surface with the jack.





4. Support the rear arm horizontally using a transmission jack.
5. Using new self-locking nuts, tighten the bolt and nut which secures the shock absorber.





Tightening torque: 62 N-m (6.3 kgf-m, 46 ft-lb)
6. Install the luggage floor mat. (Wagon model.
7. Set the trunk side trim. (Sedan model)
8. Check the wheel alignment and adjust it if necessary.
