Subaru Select Monitor
Subaru Select MonitorOPERATION
1. READ DIAGNOSTIC TROUBLE CODE (DTC)
When malfunction of airbag system occurs, the DTC stored in airbag control module will be read out.
1. Prepare the Subaru Select Monitor kit.
2. Connect the diagnosis cable to Subaru Select Monitor.
3. Connect the Subaru Select Monitor to data link connector.

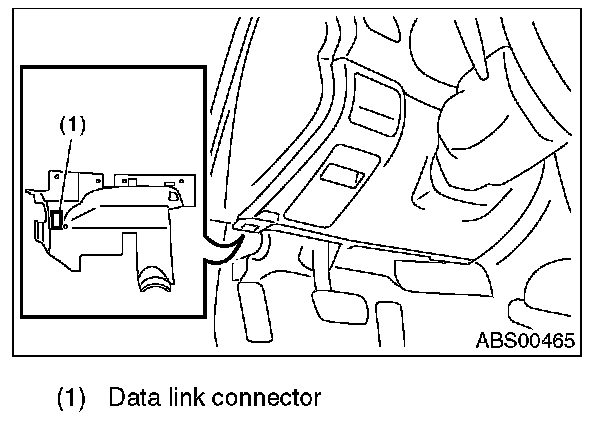

1. Data link connector is located in the lower portion of instrument panel (on the driver's side).
2. Connect the diagnosis cable to data link connector.
CAUTION: Do not connect scan tools other than the Subaru Select Monitor.
4. Turn the ignition switch to ON (engine OFF) and run the Subaru Select Monitor.
5. On the [[Main Menu]] display, select the {Each System Check}.
6. On the [[ System Selection Menu ]] display, select the {Airbag System}.
7. After {Airbag System} is displayed, select [OK].
8. Select the {Diagnostic Code(s) Display} in [[Air-bag System]].
NOTE:
- For detailed operation procedure, refer to the "PC application help for Subaru Select Monitor".
- For details concerning DTCs, refer to List of Diagnostic Trouble Code (DTC). Airbag System (Diagnostics)
2. DISPLAY OF STATUS INFORMATION
Check the operating condition of each sensor in the event of malfunction in the seat belt buckle switch, or when the seat belt buckle switch has been replaced.
1. On the [[Main Menu]] display, select the {Each System Check}.
2. On the [[System Selection Menu]] display, select the {Airbag System}.
3. On the [[Airbag System]] display, select the {Status Data}.

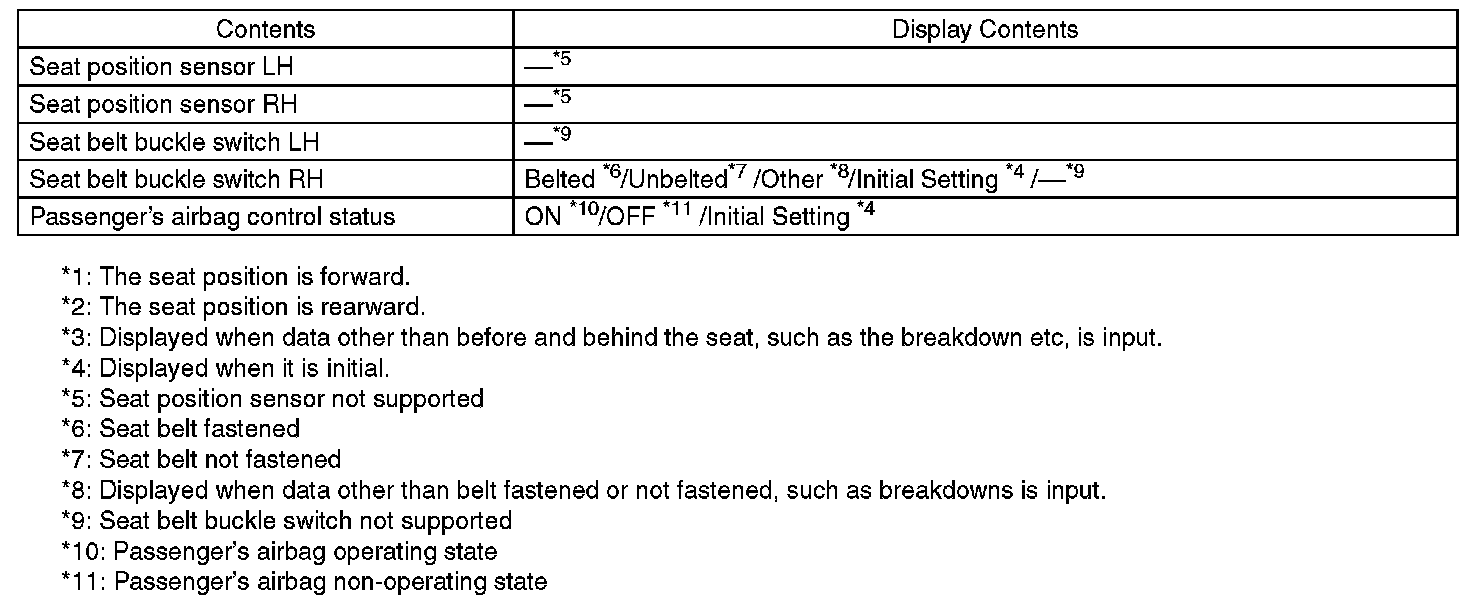

The following table is for support data.
NOTE: For detailed operation procedure, refer to the "PC application help for Subaru Select Monitor".
3. CLEAR MEMORY MODE
Clear the DTC stored in the airbag control module after repairing the airbag system. (After the breakdown is recovered, the breakdown code for completed recoveries are read out when the next breakdown occurs if the memory clear work is not performed.)
1. On the [[Main Menu]] display, select the {Each System Check}.
2. On the [[System Selection Menu]] display, select the {Airbag System}.
3. Select the {Clearing Memory} in [[Airbag System]].
4. When the "Clear Memory?" is shown on the screen, click the [OK] button.
5. When "Done" is displayed, end the Subaru Select Monitor.
NOTE: For detailed operation procedure, refer to the "PC application help for Subaru Select Monitor".
INSPECTION
1. COMMUNICATION FOR INITIALIZING IMPOSSIBLE
DETECTING CONDITION:
Defective harness connector
TROUBLE SYMPTOM:
Communication is impossible between the airbag control module and the Subaru Select Monitor.
WIRING DIAGRAM

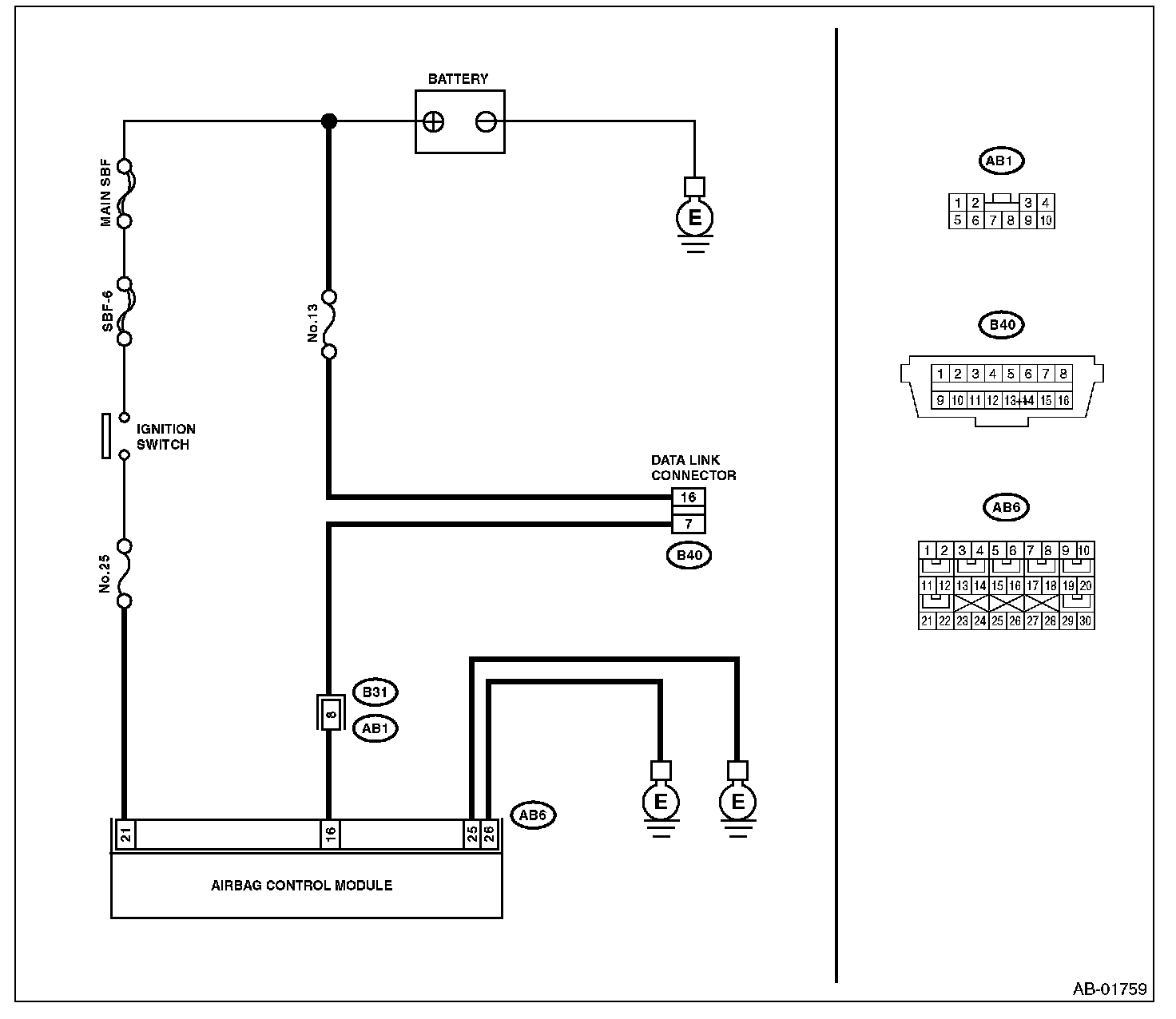

Wiring Diagram:

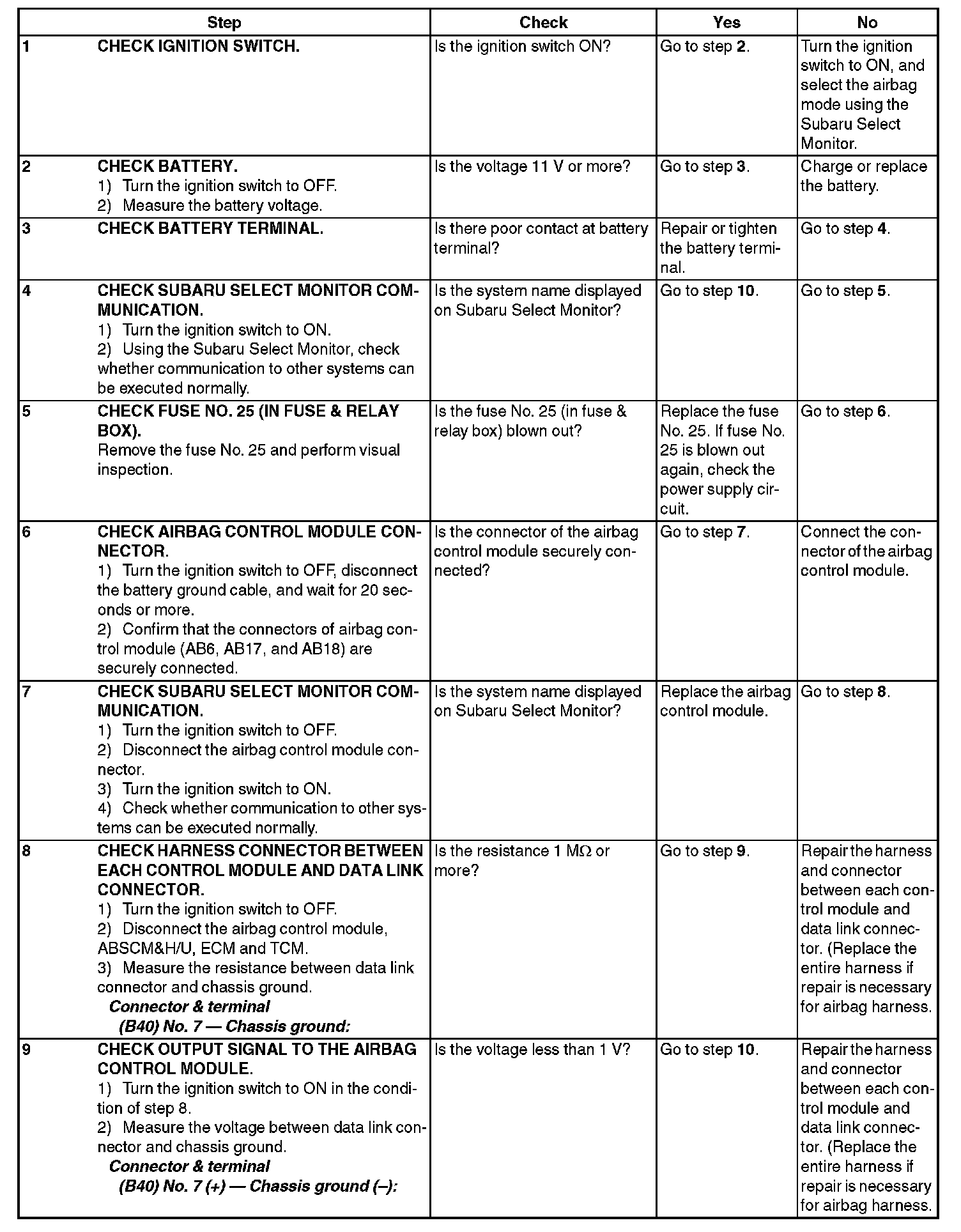

Step 1-9:

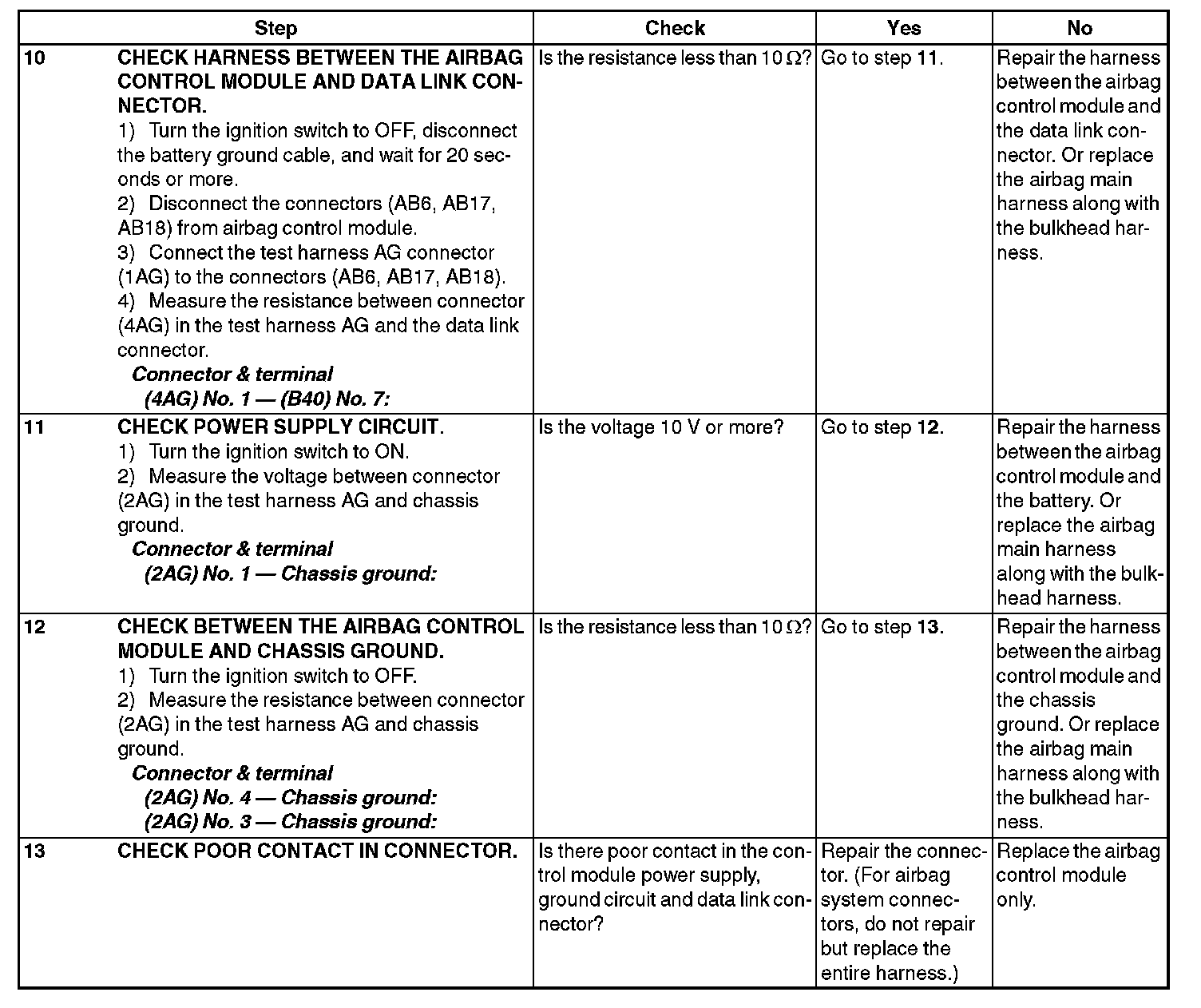

Step 10-13:
2. WITHOUT DTC
DETECTING CONDITION:
- Defective combination meter
- Open circuit in harness
TROUBLE SYMPTOM:
- Airbag warning light remains ON.
- "No diagnostic Code Present" will be displayed on the Subaru Select Monitor.
NOTE:
- For detailed operation procedures, refer to "Airbag Warning Light Failure". Symptom Related Diagnostic Procedures
- "No diagnostic Code Present" will be displayed on the Subaru Select Monitor, is displayed on Subaru Select Monitor, the system is operating properly.
