Check Manual Mode Switch
CHECK MANUAL MODE SWITCHDIAGNOSIS: Input signal circuit of SPORT/manual mode switch is open or shorted.
TROUBLE SYMPTOM: Does not shift on manual mode.

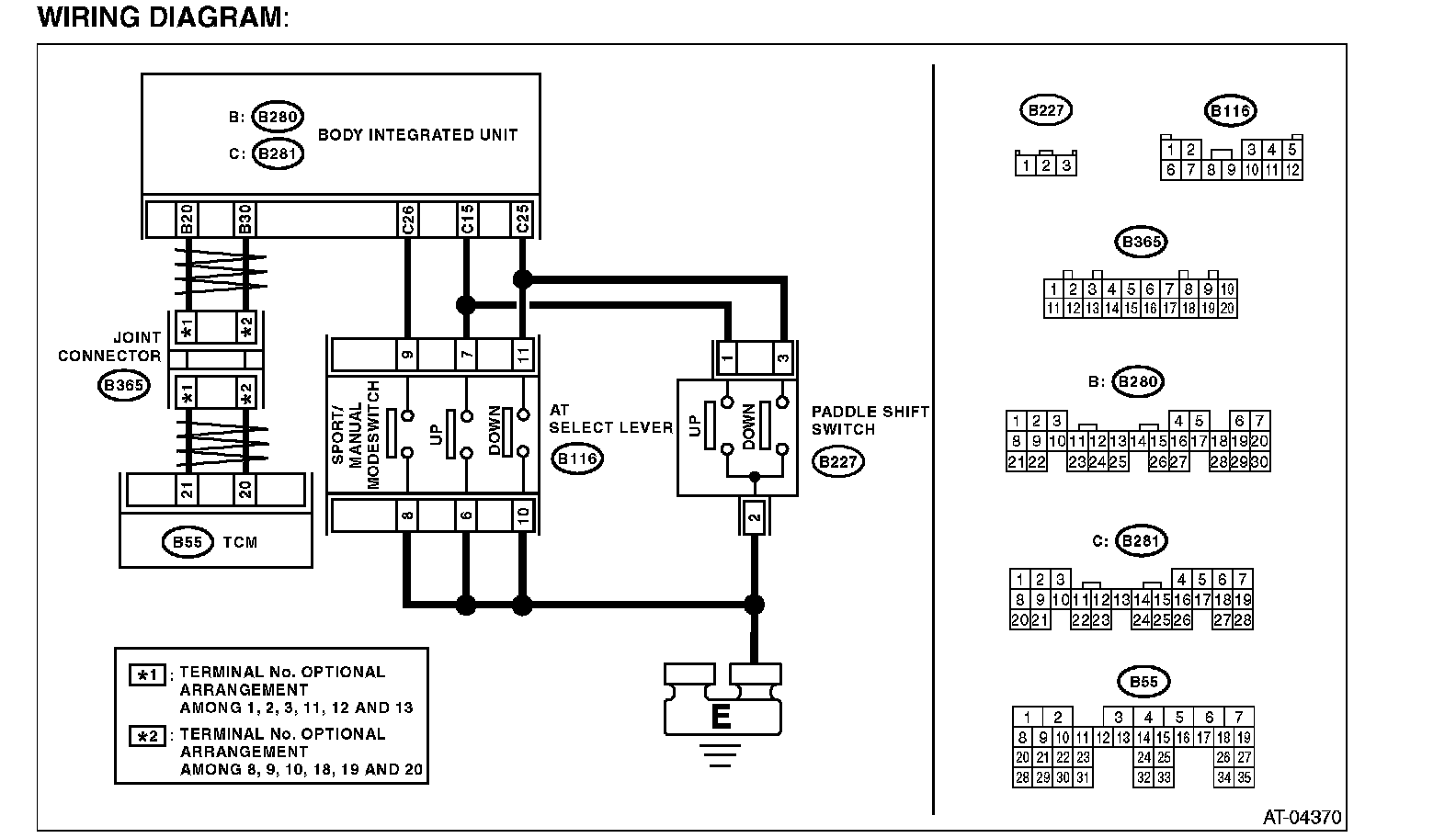

WIRING DIAGRAM:

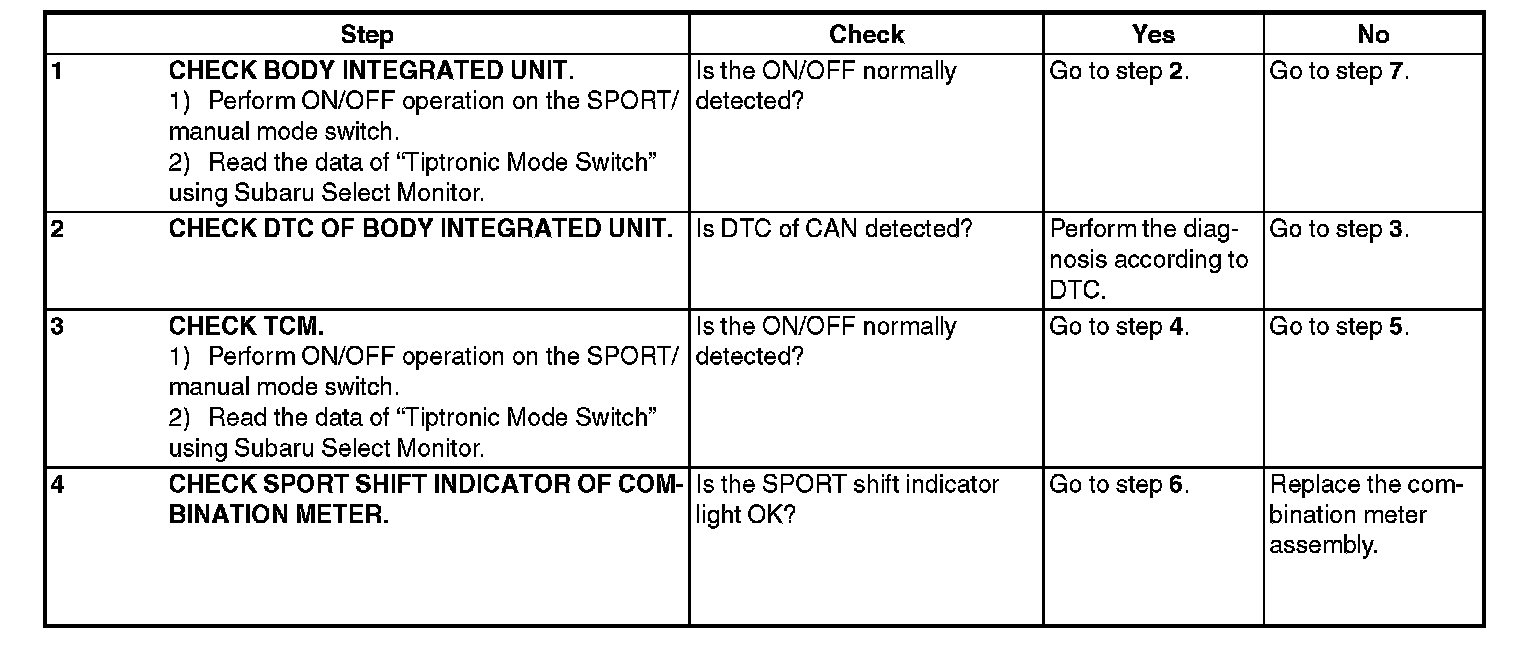

Step 1-Step 4:

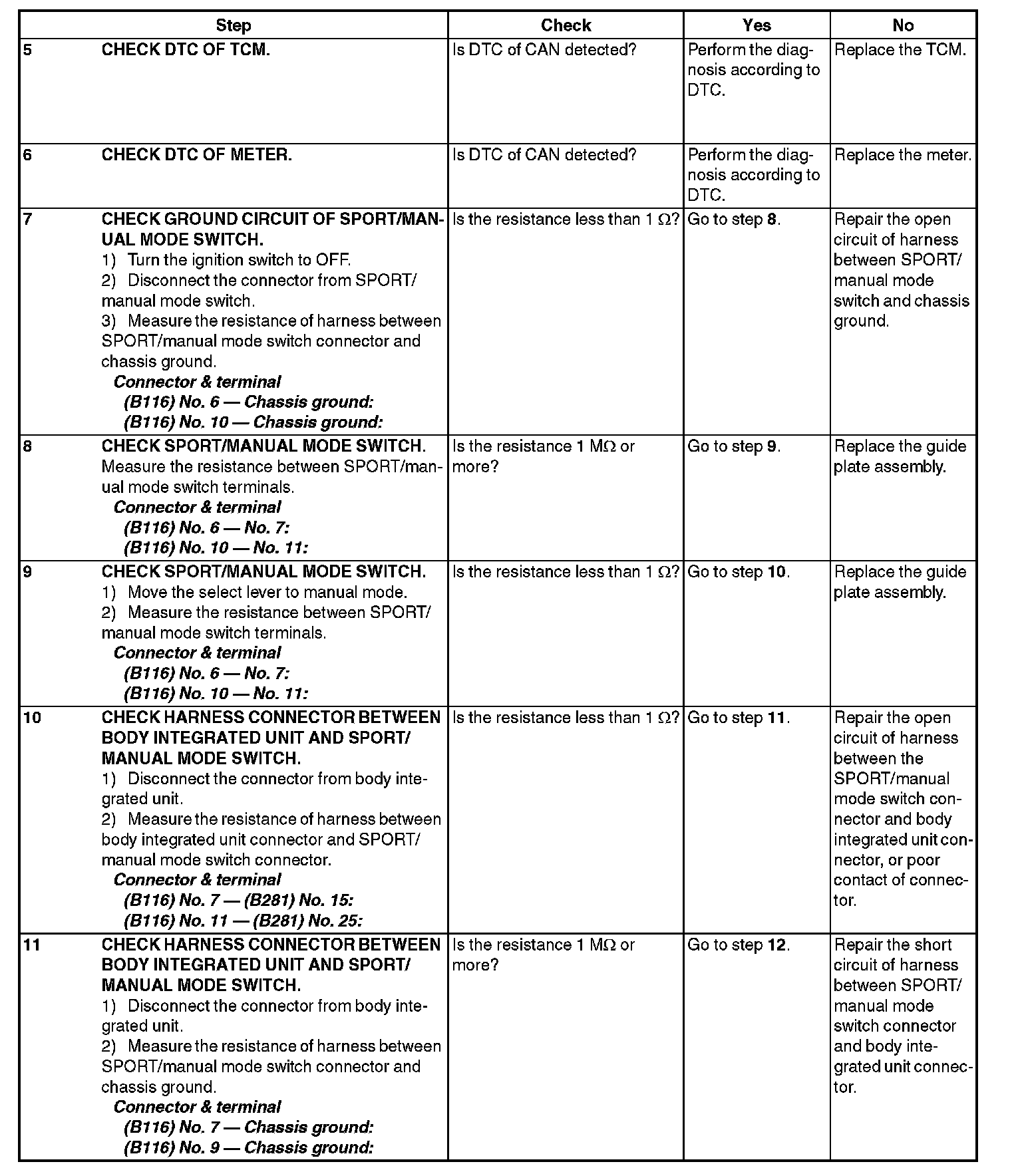

Step 5-Step 11:

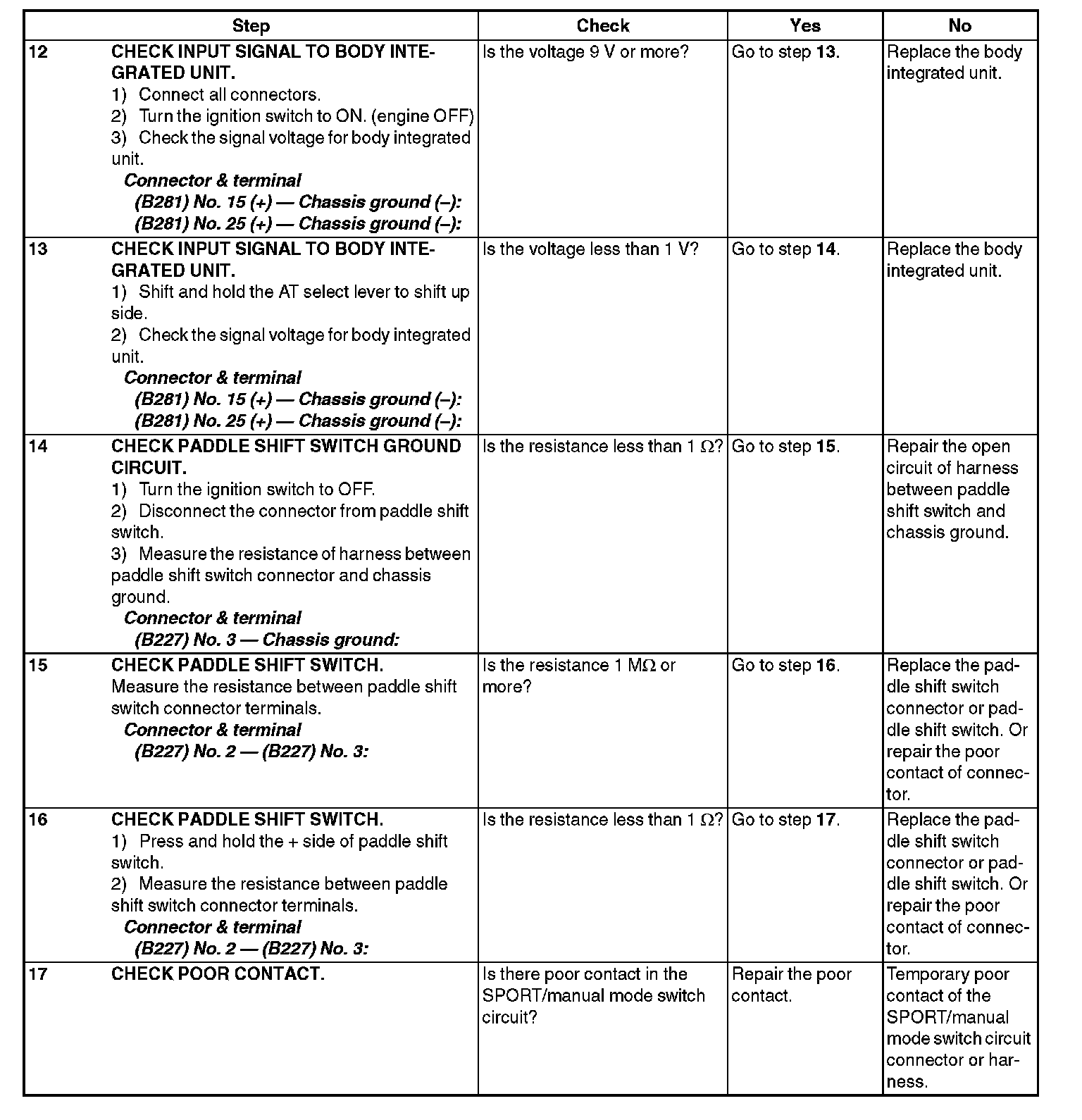

Step 12-Step 17:
DIAGNOSIS: Input signal circuit of SPORT/manual mode switch is open or shorted.
TROUBLE SYMPTOM: Does not shift on manual mode.
WIRING DIAGRAM:
