Rear Oxygen Sensor

Rear Oxygen Sensor

REMOVAL

1. Set the vehicle on a lift.

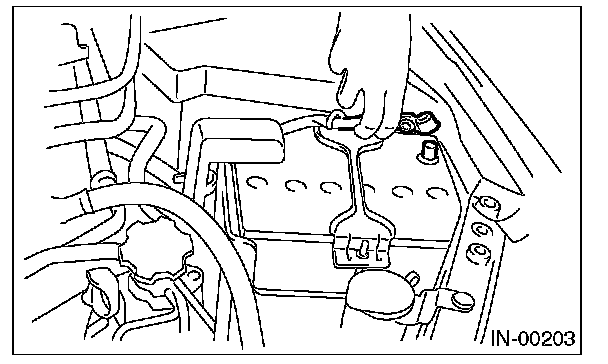

2. Disconnect the ground cable from the battery.






3. Lift up the vehicle.

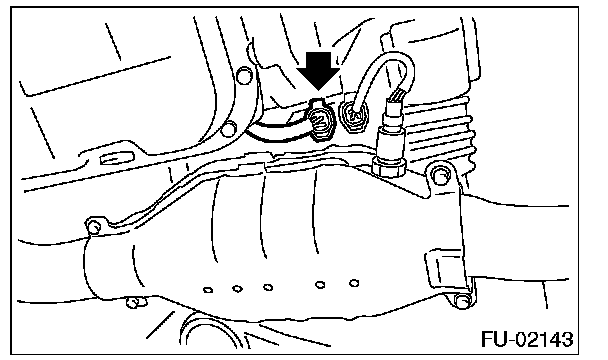

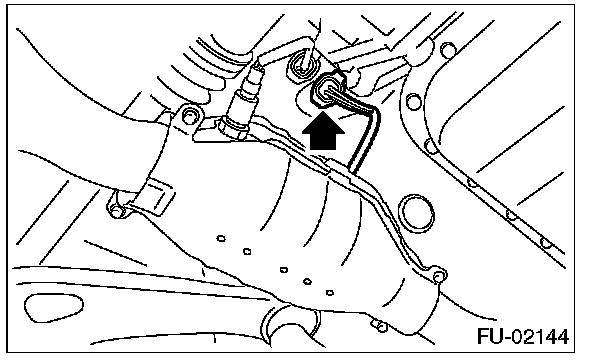

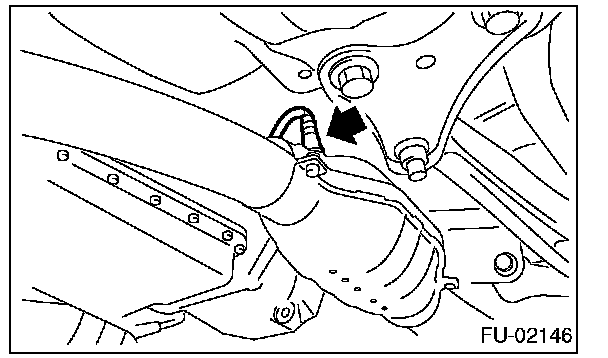

4. Disconnect the connector from rear oxygen sensor.

- LH side






- RH side






5. Remove the clip holding the harness.
6. Apply spray-type lubricant to the threaded portion of rear oxygen sensor, and leave it for one minute or more.

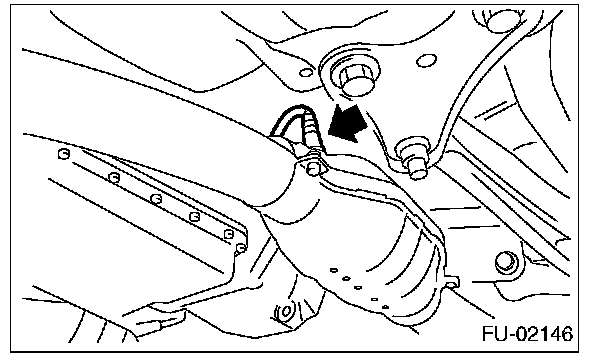

7. Remove the rear oxygen sensor.

CAUTION: When removing the rear oxygen sensor, wait until exhaust pipe cools, otherwise it will damage the exhaust pipe.

- LH side






- RH side






INSTALLATION

CAUTION: If lubricant is spilt onto the exhaust pipe, wipe it off with cloth to avoid emission of smoke or causing a fire.

1. Before installing rear oxygen sensor, apply the anti-seize compound only to the threaded portion of rear oxygen sensor to make the next removal easier.

CAUTION: Never apply anti-seize compound to the protector of rear oxygen sensor.

Anti-seize compound: NEVER-SEEZ NSN, JET LUBE SS-30 or equivalent

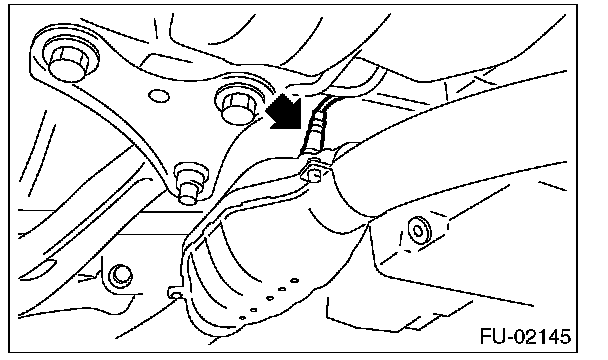

2. Install the rear oxygen sensor.

- LH side






- RH side






3. Hold the harness with clip.

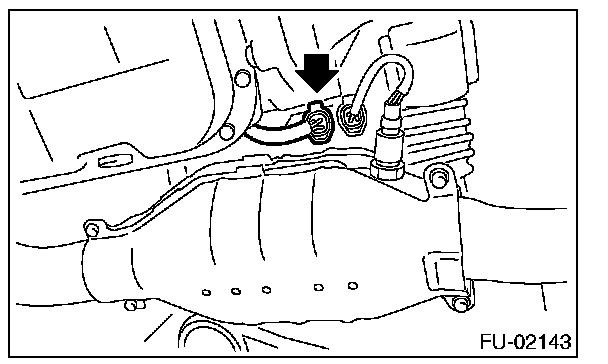

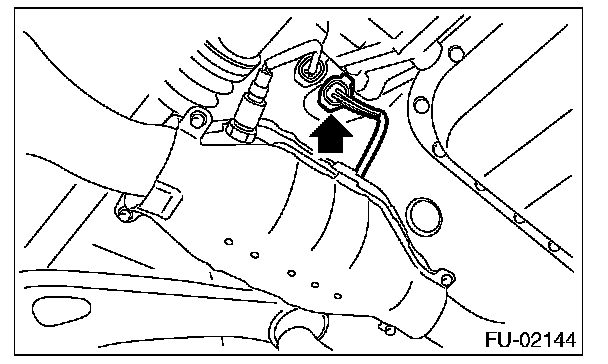

4. Connect the connector to rear oxygen sensor.

- LH side






- RH side






5. Lower the vehicle.

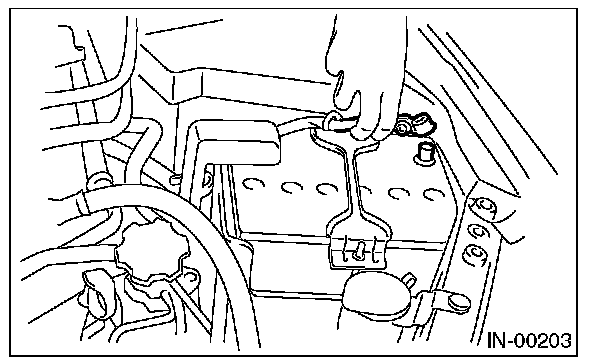

6. Connect the ground cable to battery.
