Coolant Temperature Sensor/Switch (For Computer): Service and Repair

Engine Coolant Temperature Sensor

REMOVAL

1. Remove the collector cover.

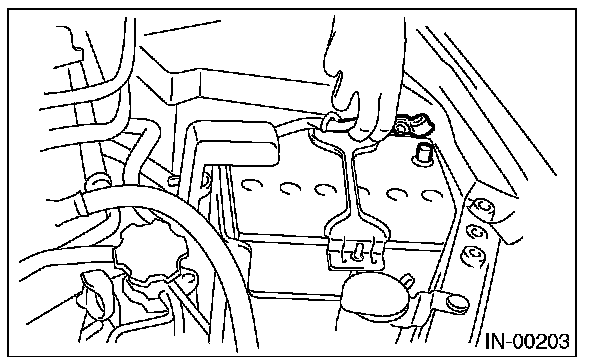

2. Disconnect the ground cable from battery.






3. Drain engine coolant.

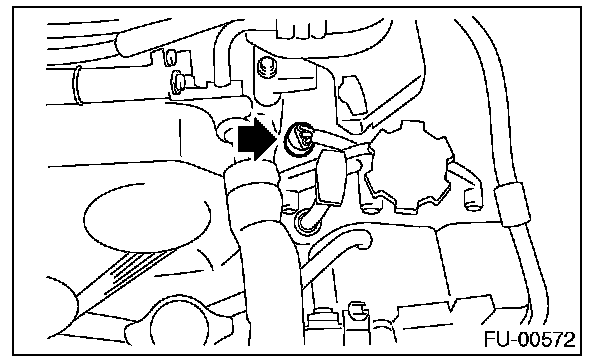

4. Disconnect the connectors from the engine coolant temperature sensor.

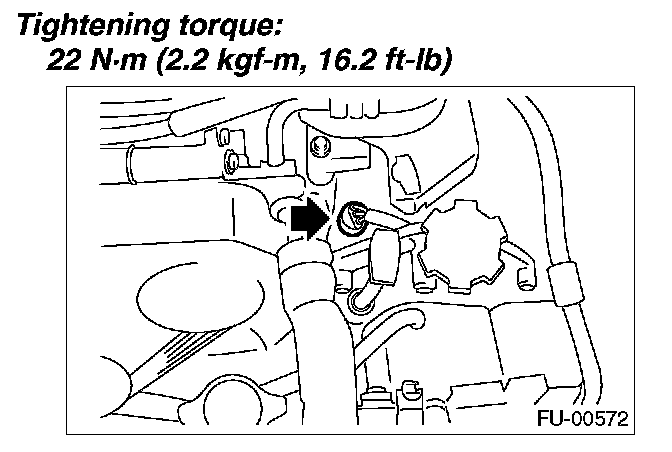

5. Remove the engine coolant temperature sensor.

INSTALLATION

Install in the reverse order of removal.
