Fuel Tank Shield: Service and Repair

FUEL TANK PROTECTOR

REMOVAL
1. Lift up the vehicle.

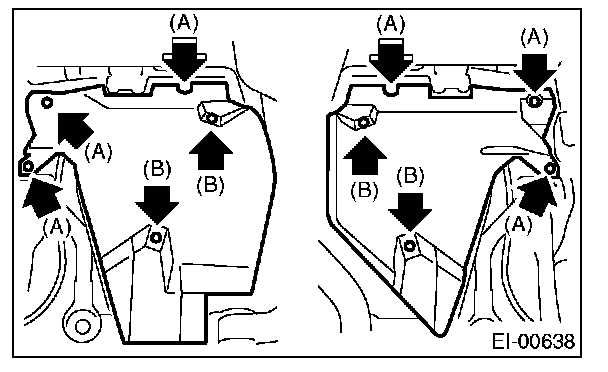

2. Remove the bolts (A) and nuts (B), and then remove the fuel tank protector.







INSTALLATION

Install in the reverse order of removal.

Tightening torque: Refer to "COMPONENT" of "General Description". [Ref. to UNDER PROTECTOR, COMPONENT, General Description.]
