Fuel Pressure Pulsation Damper: Service and Repair

Fuel Damper

REMOVAL

WARNING: Place "NO OPEN FLAMES" signs near the working area.

CAUTION:
- Be careful not to spill fuel.
- Catch the fuel from hoses using a container or cloth.

1. Release the fuel pressure.

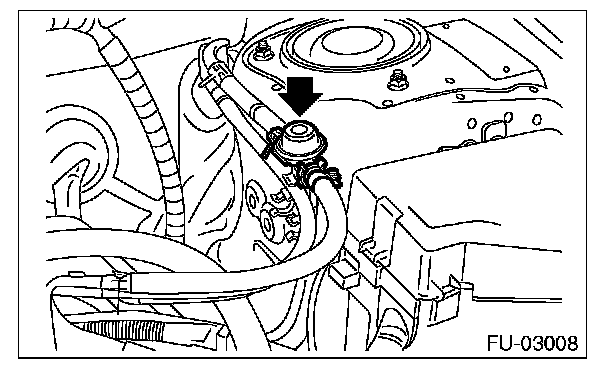

2. Remove the fuel damper from the fuel delivery line.






INSTALLATION

CAUTION: If fuel hoses or clamps are damaged, replace them with new parts.

Install in the reverse order of removal.

Tightening torque: 1.25 N.m (0.1 kgf.m, 0.9 ft.lb)
