Fuel Injector: Service and Repair

Fuel Injector

REMOVAL

1. RH SIDE
1. Remove the collector cover.
2. Release the fuel pressure.
3. Open the fuel filler lid, and remove the fuel filler cap.

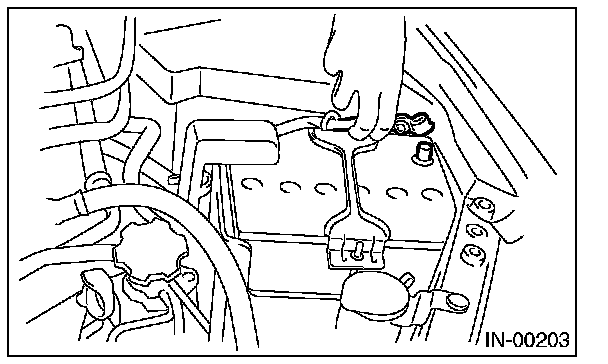

4. Disconnect the ground cable from battery.






5. Remove the air cleaner case.

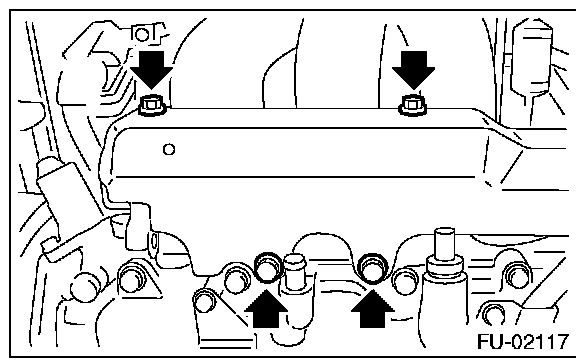

6. Remove the fuel pipe protector RH.

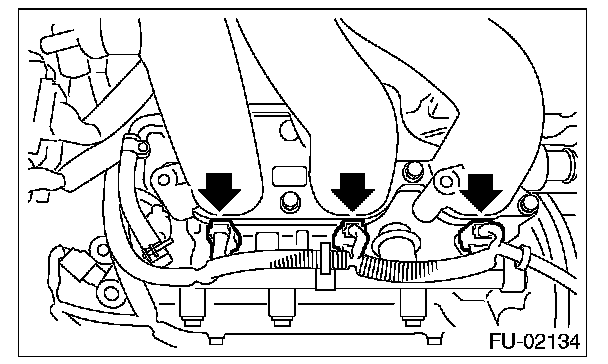

7. Disconnect the connector from fuel injector.






8. Remove the engine harness from the fuel injector pipe RH.

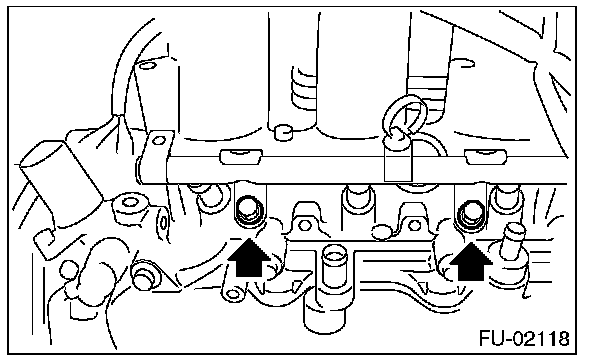

9. Remove the bolt which holds fuel injector pipe onto cylinder head.






10. Remove the fuel injector while lifting up the fuel injector pipe.

2. LH SIDE
1. Remove the collector cover.
2. Release the fuel pressure.
3. Open the fuel filler lid, and remove the fuel filler cap.
4. Remove the battery.

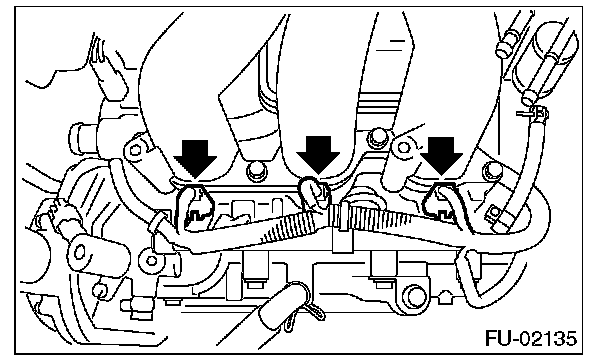

5. Remove the generator harness from the fuel pipe protector LH.

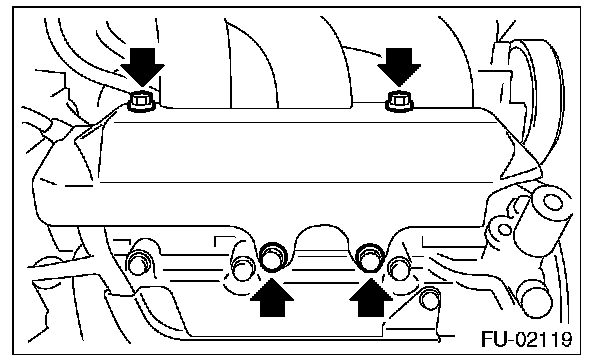

6. Remove the fuel pipe protector LH.






7. Disconnect the connector from fuel injector.






8. Remove the engine harness from the fuel injector pipe LH.

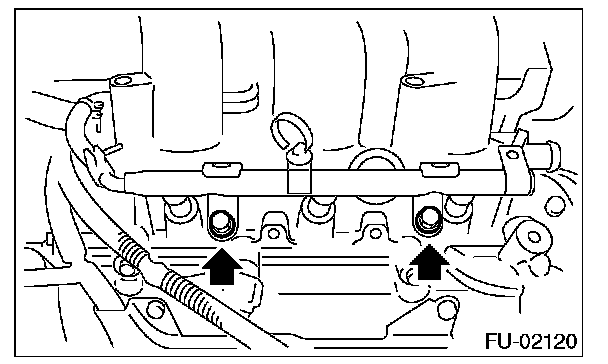

9. Remove the bolt which holds fuel injector pipe onto cylinder head.






10. Remove the fuel injector while lifting up the fuel injector pipe.

INSTALLATION

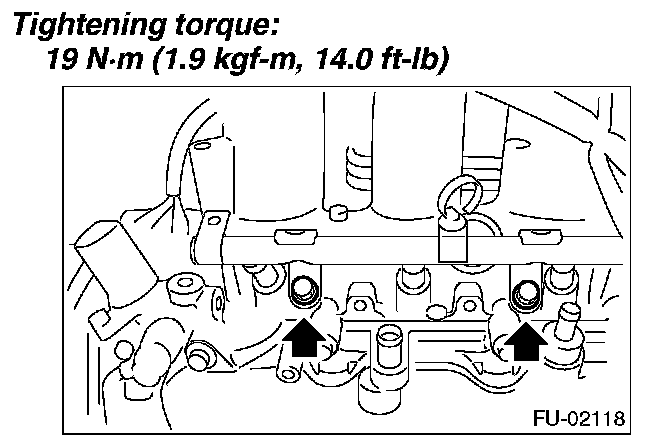

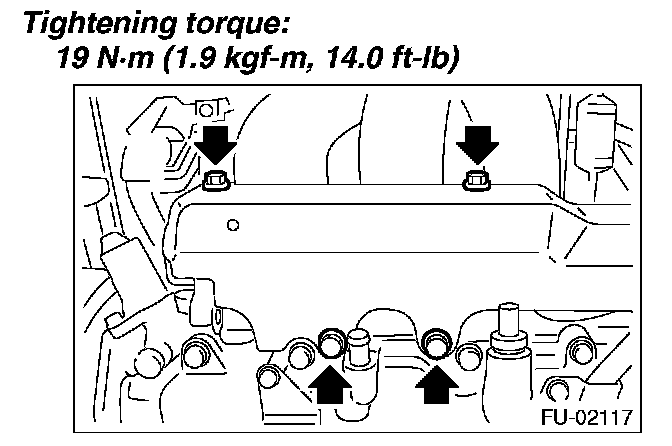

1. RH SIDE

Install in the reverse order of removal.

NOTE: Use new O-rings.









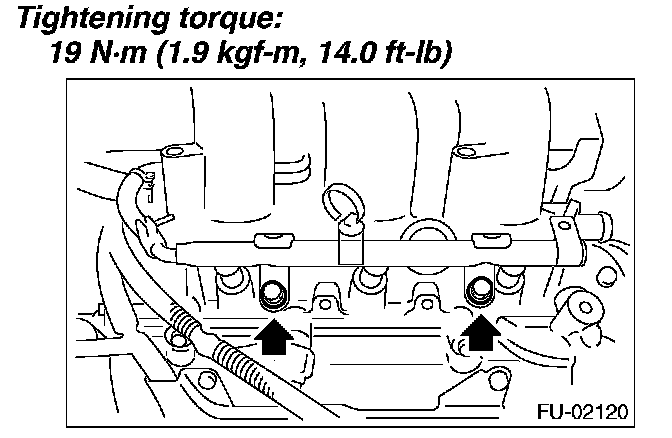

2. LH SIDE

Install in the reverse order of removal.

NOTE: Use new O-rings.
