Positive Crankcase Ventilation Valve: Service and Repair

PCV Valve

REMOVAL

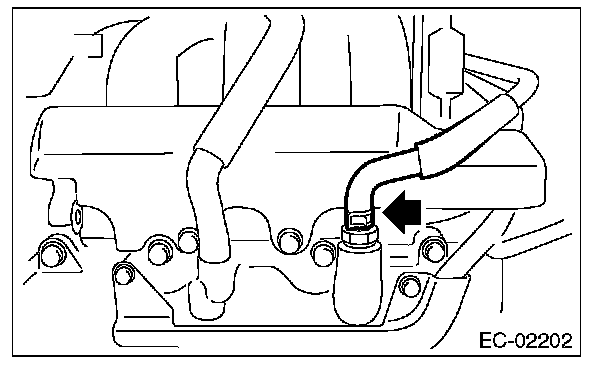

1. Disconnect the PCV hose.

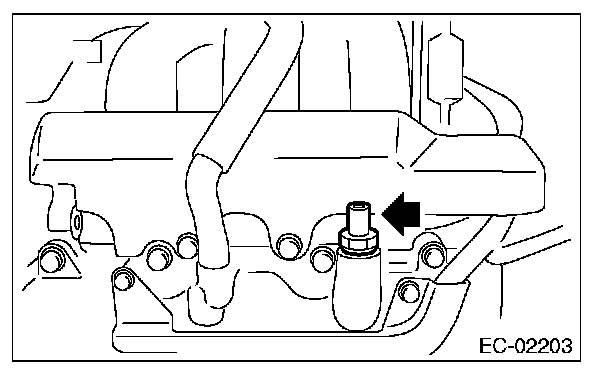

2. Remove the PCV valve from rocker cover.






INSTALLATION

Install in the reverse order of removal.

NOTE: Apply liquid gasket to the bolt threads of PCV valve.

Liquid gasket: THREE BOND 1141 (Part No. 004403006) or equivalent

Tightening torque: 25 N.m (2.5 kgf.m, 18.4 ft.lb)
