EGR Valve: Service and Repair

EGR Valve

REMOVAL

1. Remove the collector cover.

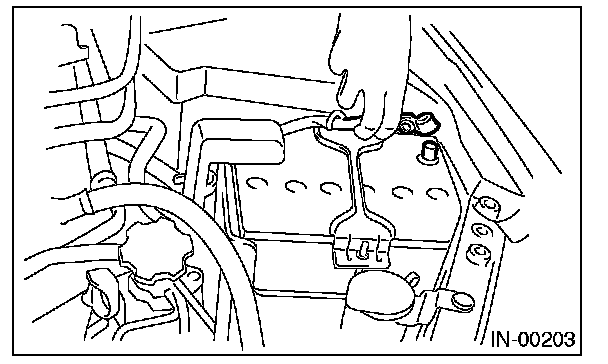

2. Disconnect the ground cable from battery.






3. Remove the air intake chamber.
4. Remove the starter.

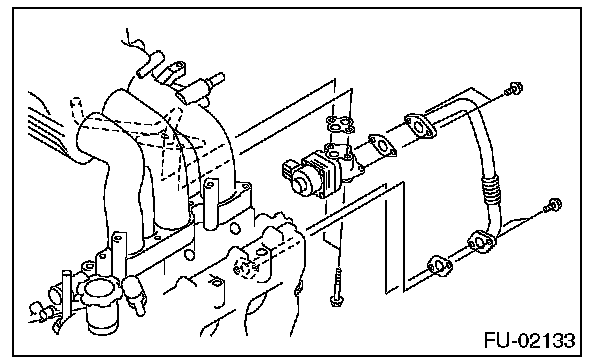

5. Remove the EGR pipe from EGR valve and cylinder head.
6. Remove the EGR valve from intake manifold.






7. Disconnect the connector from the EGR valve.

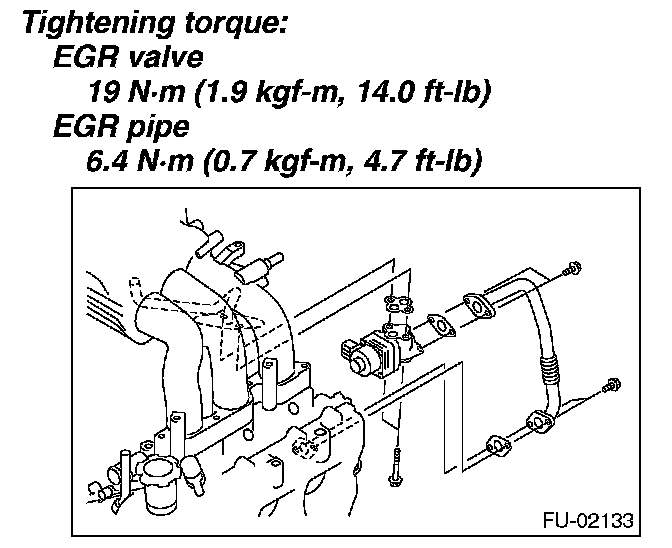

INSTALLATION

Install in the reverse order of removal.

NOTE: Use a new gasket.
