Engine Mode Switch: Testing and Inspection
INSPECTION

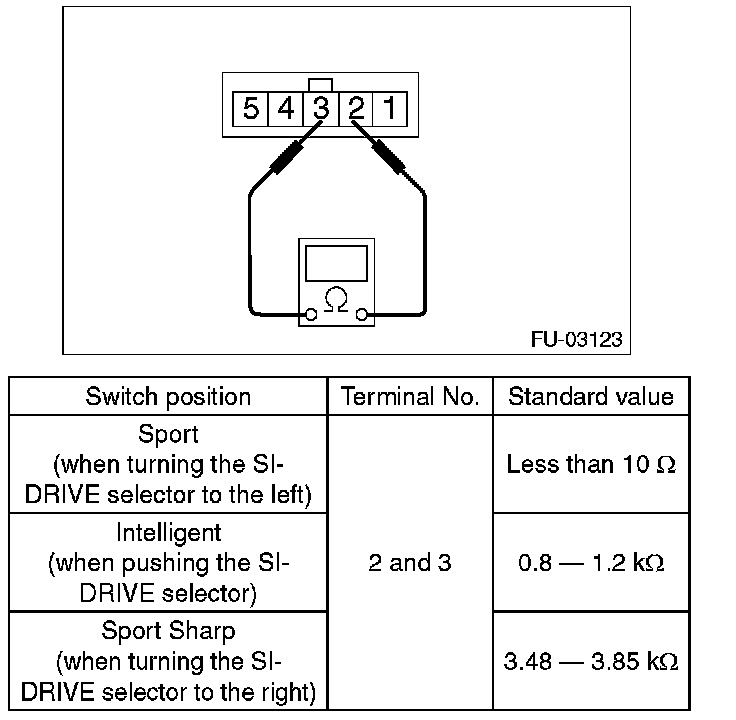

Measure the resistance between SI-DRIVE selector terminals.
