Front Turn Signal Light Bulb

Front Turn Signal Light Bulb

REMOVAL

1. Disconnect the ground cable from the battery.

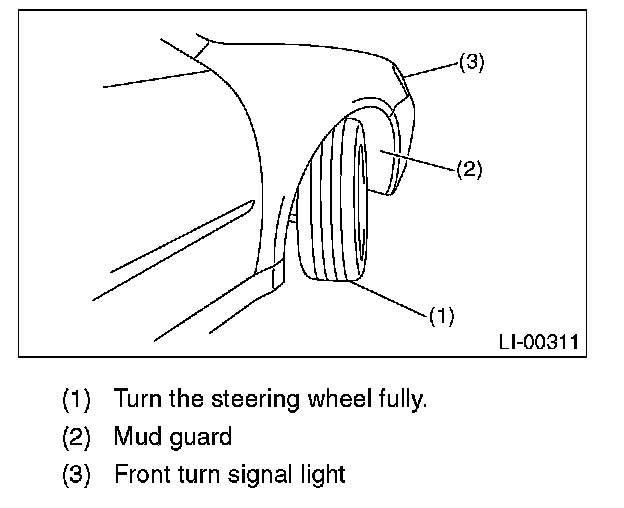

2. When removing the turn signal light bulb, fully turn the steering wheels to opposite direction from the turn signal light bulb to remove.






3. Turn the mud guard inward.

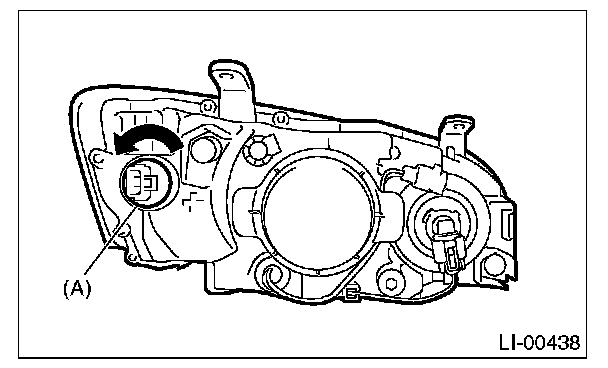

4. Turn socket (A) from the wheel arch, and remove the front turn signal light bulb.

CAUTION: For 5AT model, the turn signal light bulb LH cannot be removed from the wheel arch. Remove the bulb by removing the battery from the engine compartment side.






INSTALLATION

Install in the reverse order of removal.
