Luggage Room Light

Luggage Room Light

INSPECTION

1. LUGGAGE ROOM LIGHT BULB
1. Visually check the bulb for blow out.
2. Check the bulb specification. Specifications
3. If NG, replace the bulb with a new part.

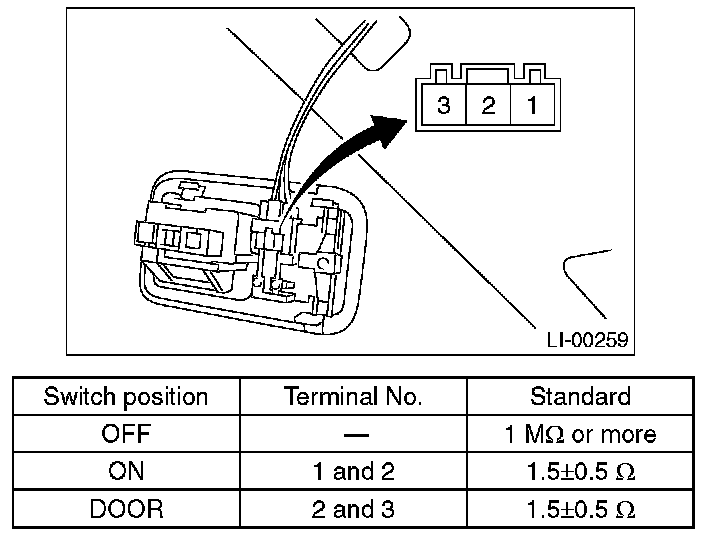

2. LUGGAGE ROOM LIGHT SWITCH
Measure the resistance between luggage room light switch terminals.
