Marker Lamp Bulb: Service and Repair

Rear Side Marker Light Bulb

REMOVAL

1. SEDAN MODEL
The rear side marker light bulb is integrated into the tail/stop light bulb as a single unit.

2. WAGON MODEL
1. Remove the rear combination light assembly.

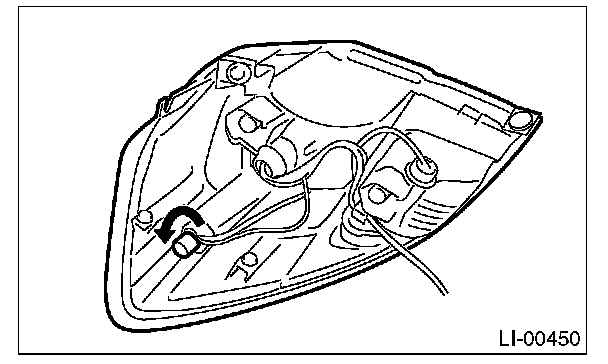

2. Turn the socket and remove the bulb.






INSTALLATION

Install in the reverse order of removal.
