Fog/Driving Lamp Bulb: Service and Repair

Front Fog Light Bulb

REMOVAL

1. EXCEPT FOR OUTBACK MODEL
1. Disconnect the ground cable from battery.

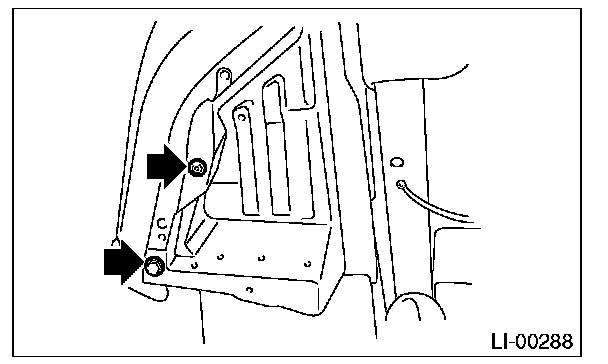

2. Disengage the two clips, and then turn over the lower mud guard.






3. Disconnect the harness connector.

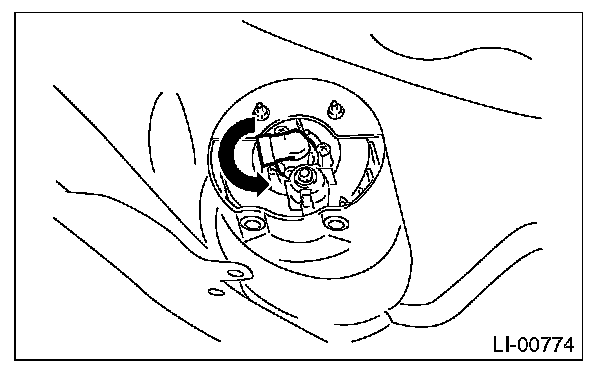

4. Retain the bulb then detach the fog light bulb.






2. OUTBACK MODEL
1. Disconnect the ground cable from the battery.

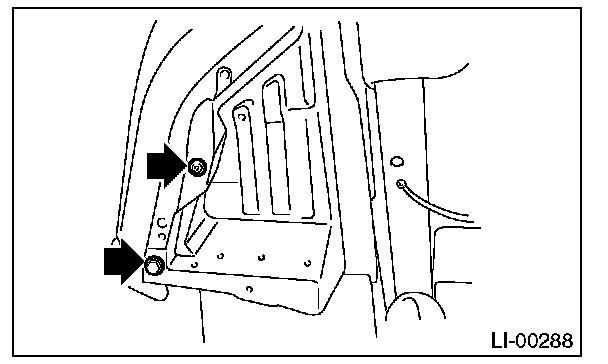

2. Disengage the two clips, and then turn over the lower mud guard.






3. Disconnect the harness connector.
4. Remove the back cover.






5. Remove the spring retainer then detach the fog light bulb.

INSTALLATION

Install in the reverse order of removal.
