Backup Light Bulb: Service and Repair

Back-up Light Bulb

REMOVAL

1. SEDAN MODEL
1. Disconnect the ground cable from the battery.
2. Remove the trunk side trim cover.

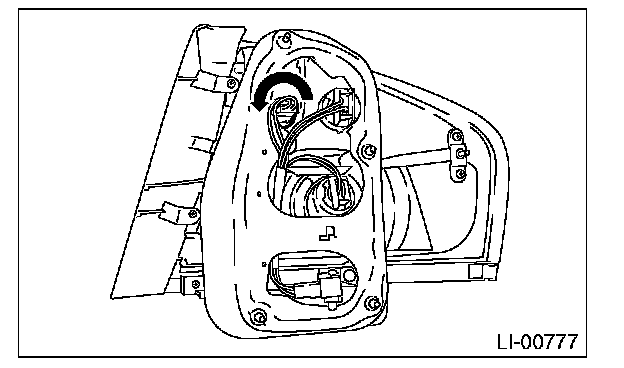

3. Turn the socket and remove the bulb.






2. WAGON MODEL
1. Disconnect the ground cable from the battery.
2. Remove the bulb inspection cover of the rear gate trim.

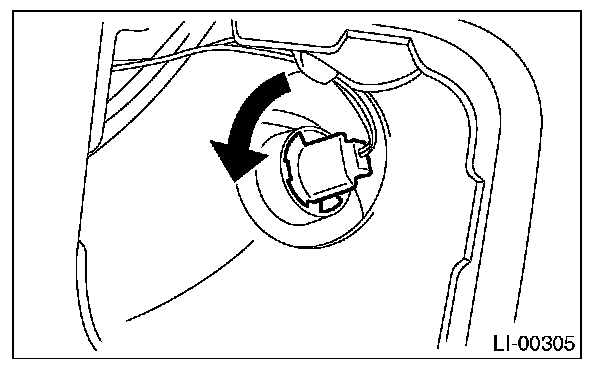

3. Turn the socket and remove the bulb.






INSTALLATION

Install in the reverse order of removal.
