Home >> Subaru >> 2009 >> Outback F6-3.0L DOHC >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> HVAC System (Auto A/C) (Diagnostics) >> Diagnostics With Phenomenon

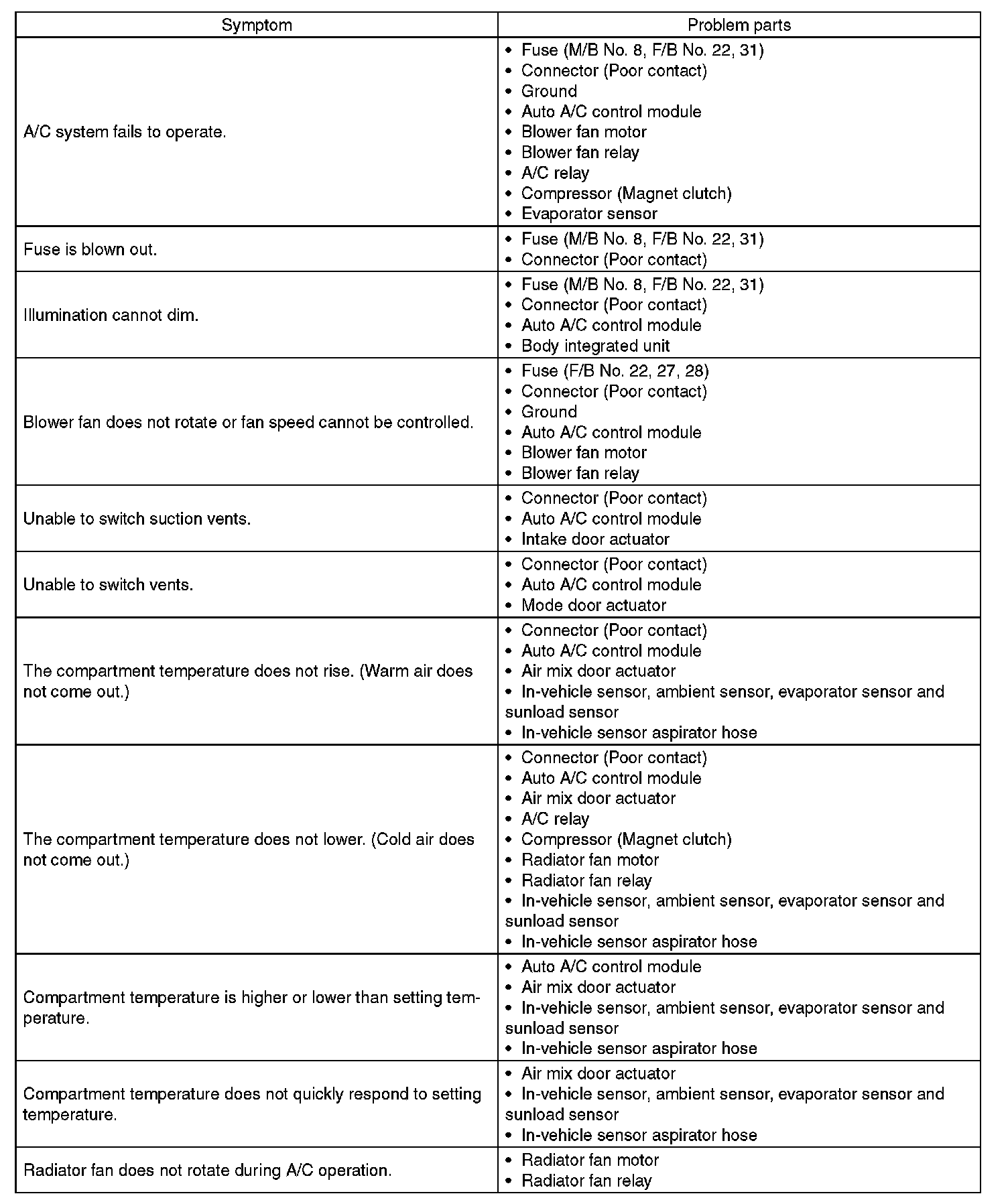

Diagnostics With Phenomenon

Diagnostics with Phenomenon

INSPECTION
