Blower Motor Does Not Rotate

BLOWER MOTOR Does NOT ROTATE

TROUBLE SYMPTOM:
- Blower motor does not rotate.
- Blower motor does not rotate in "HI".

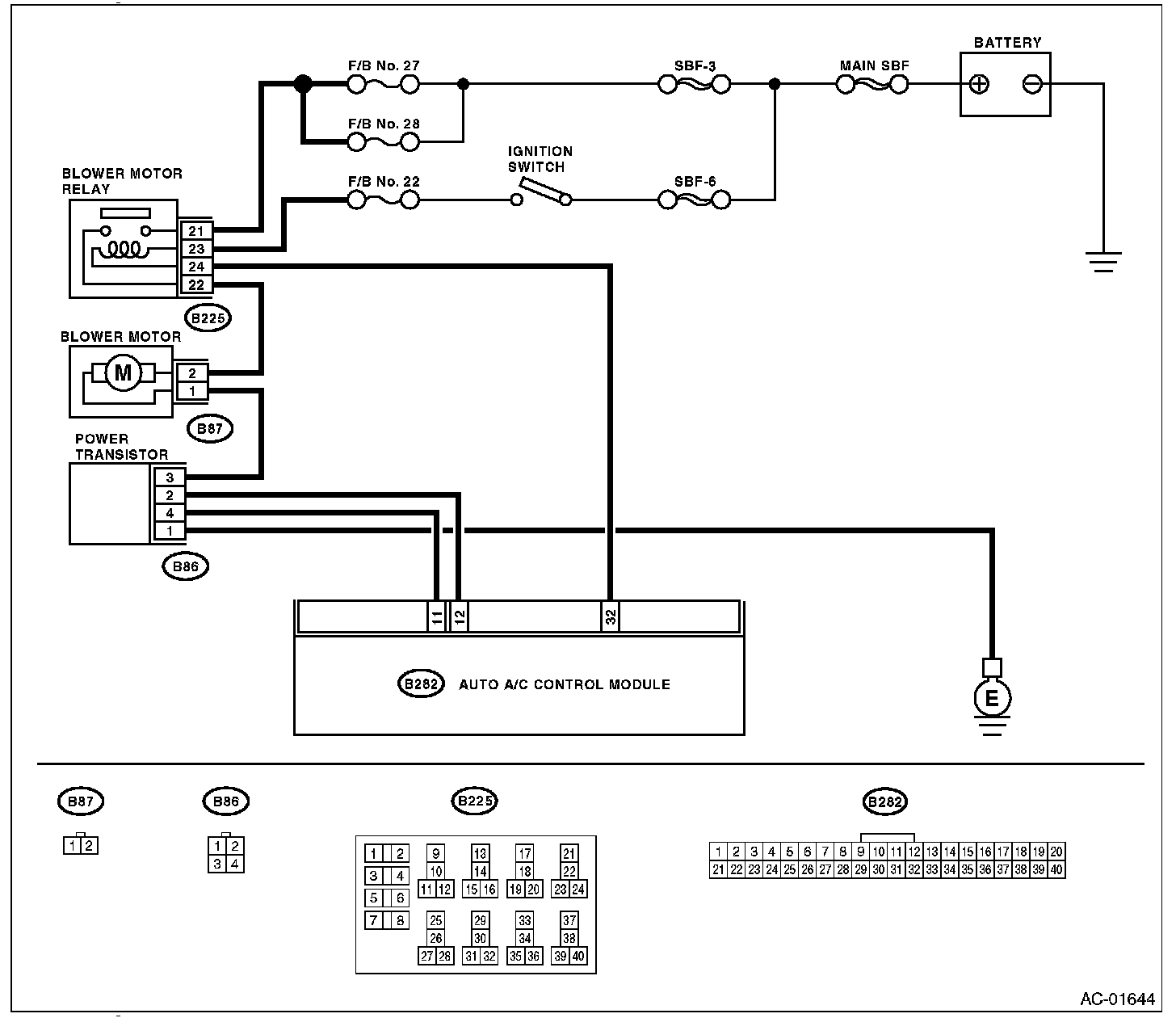

WIRING DIAGRAM

Wiring Diagram:

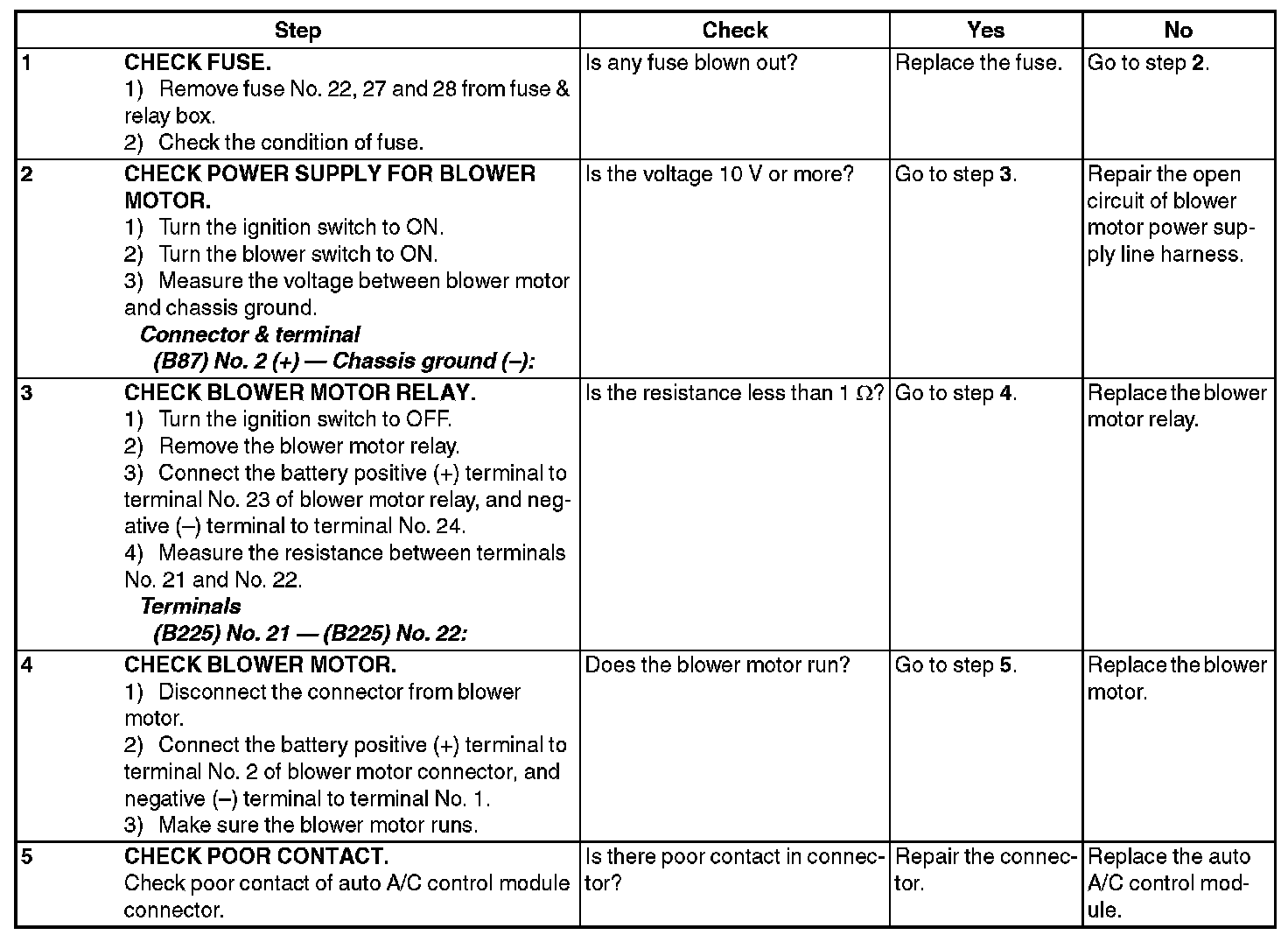

Step 1-5:
