Control Unit (Manual A/C Model)

Control Unit (Manual A/C Model)

REMOVAL

1. Disconnect the ground cable from the battery.
2. Remove the instrument panel lower cover.

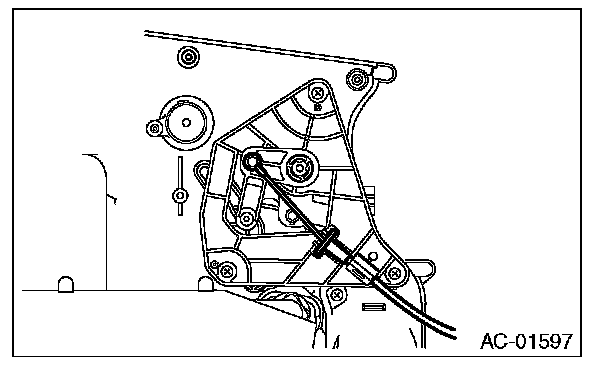

3. Remove the control wires.






4. Remove the audio assembly.
5. Loosen the screw to remove the control unit from the bracket.

INSTALLATION

Install in the reverse order of removal.
