Air Door Actuator / Motor: Service and Repair

Actuator

REMOVAL

1. MODE DOOR ACTUATOR

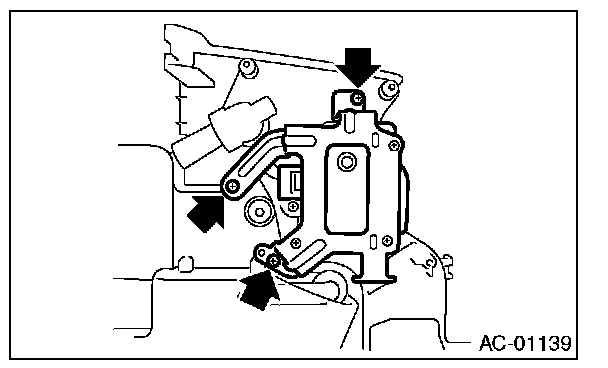

Disconnect the connector, remove the screw, and then remove the mode door actuator from the heater and cooling unit.






2. INTAKE DOOR ACTUATOR

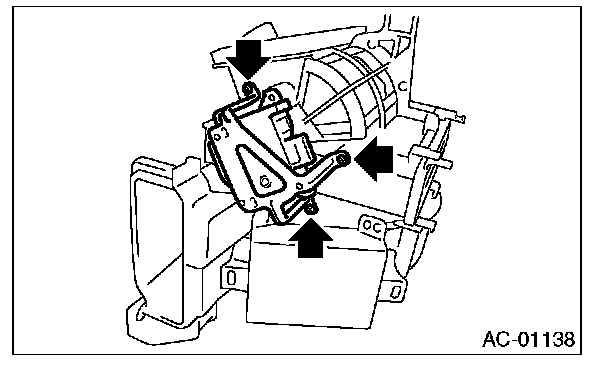

Disconnect the connector, remove the screw, and then remove the intake door actuator from the blower motor unit.






3. AIR MIX DOOR ACTUATOR (AUTO A/C MODEL)

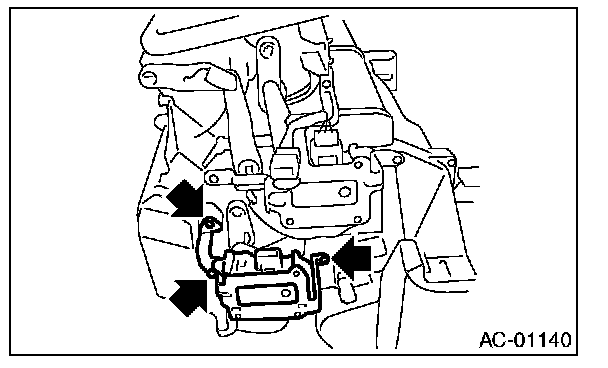

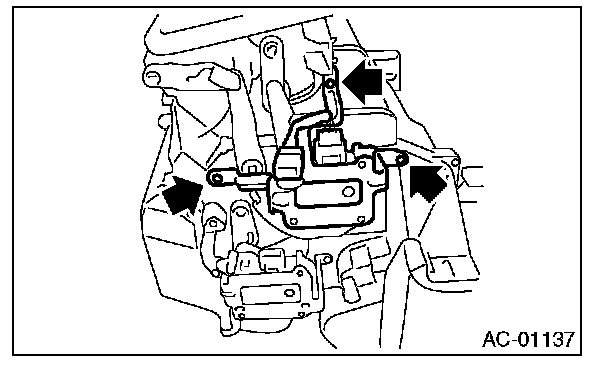

Disconnect the connector, remove the screw, and then remove the air mix door actuator from the heater and cooling unit.
- Driver's side






- Passenger's side






INSTALLATION

Install in the reverse order of removal.
