Heat Shield: Service and Repair

HEAT SHIELD COVER

REMOVAL

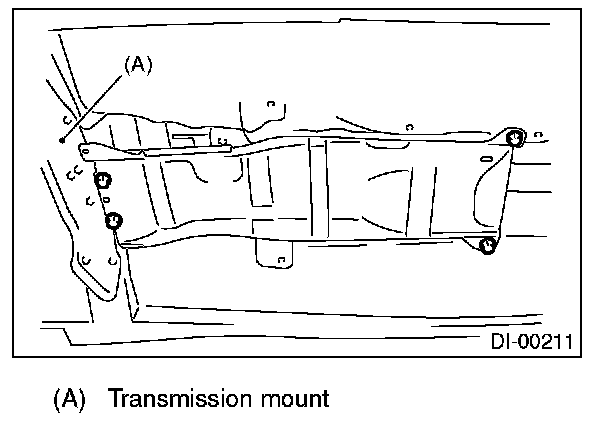

1. FRONT HEAT SHIELD COVER
Remove the four bolts to remove the front heat shield cover.

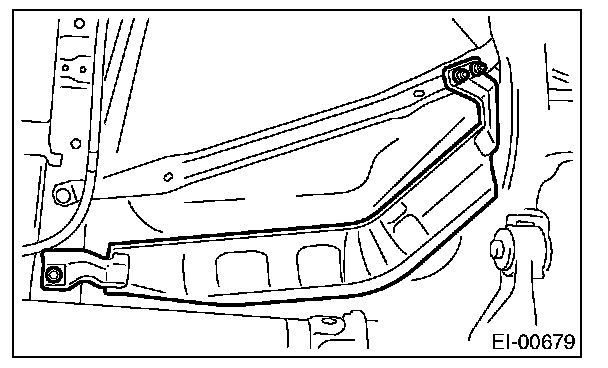

2. CENTER HEAT SHIELD COVER
Remove the nut and bolt to remove center heat shield cover.

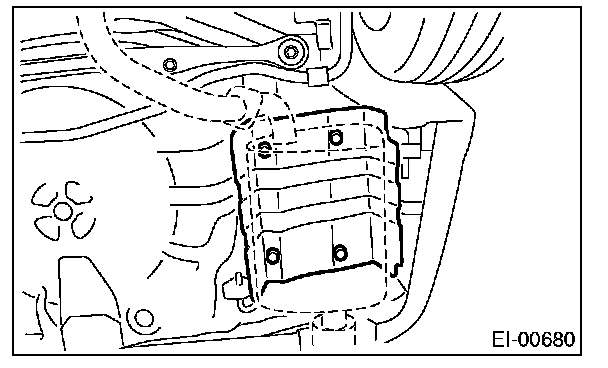

3. REAR HEAT SHIELD COVER
1. Remove the muffler.
2. Remove the four bolts to remove the rear heat shield cover.







INSTALLATION

Install in the reverse order of removal.
