Outback F6-3.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
F3-F115
F3-F115
Front Wiring Harness

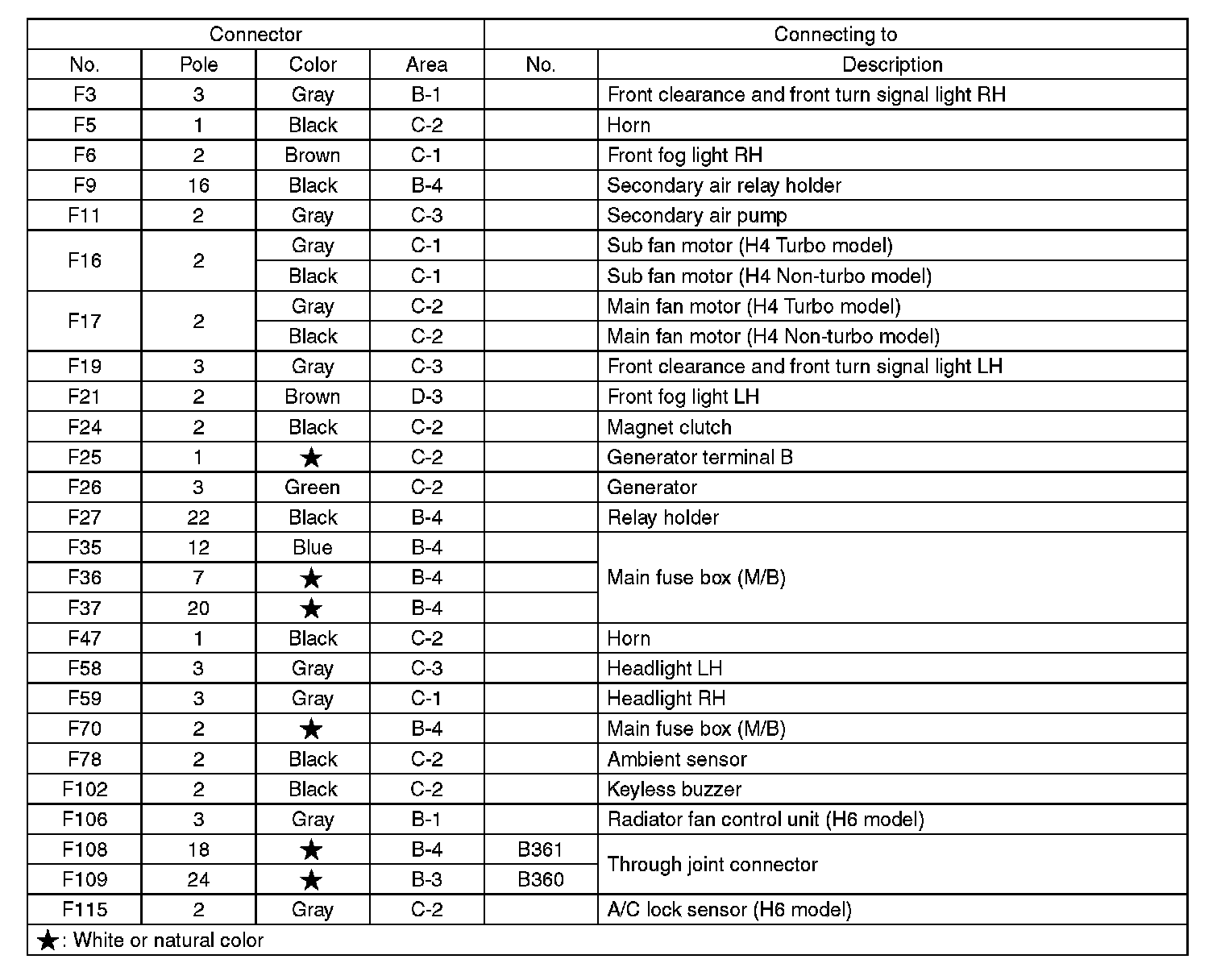

F3-F115:

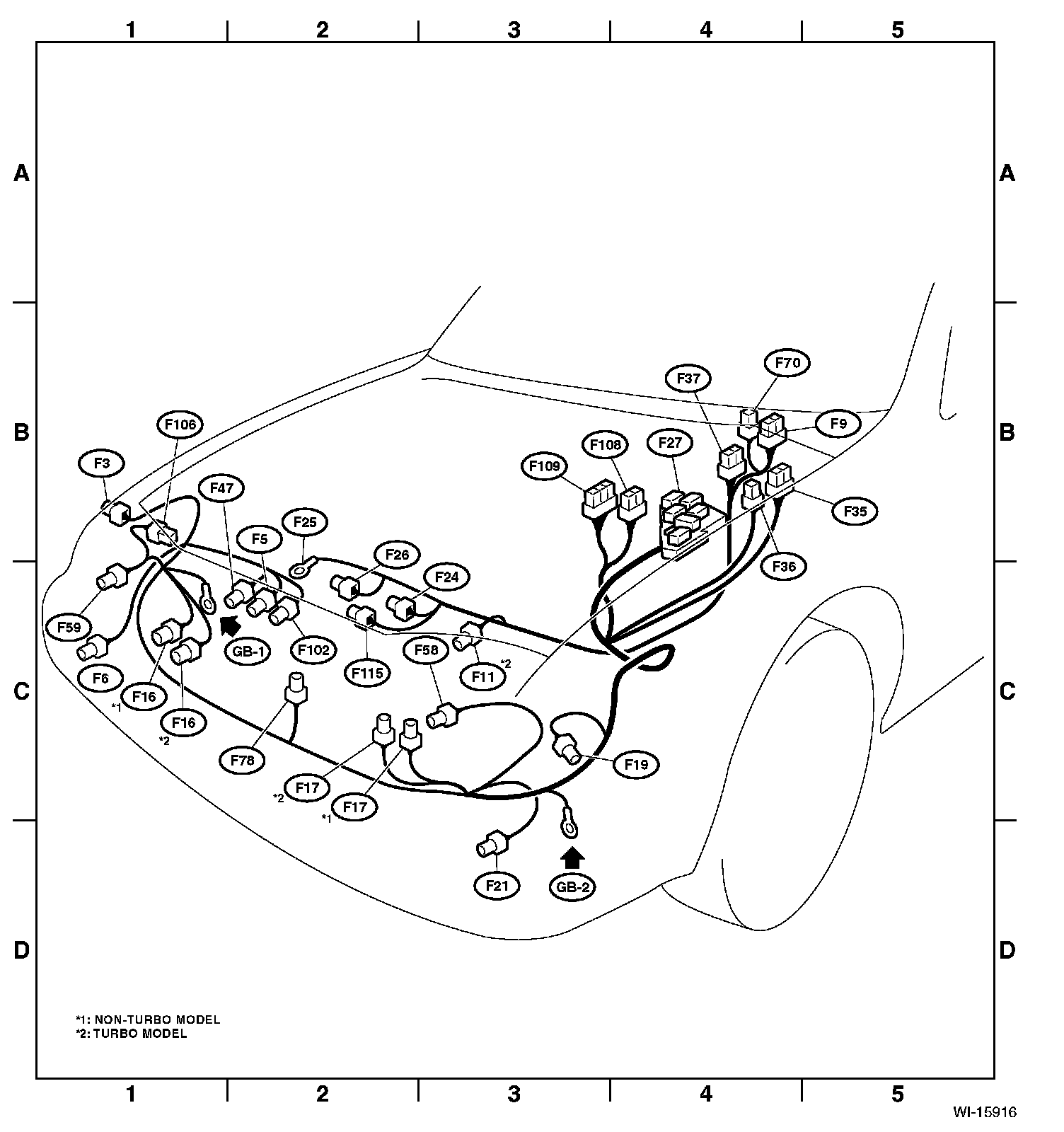

Area View:
