Subaru Select Monitor
Subaru Select MonitorOPERATION
HOW TO USE SUBARU SELECT MONITOR
1. Prepare the Subaru Select Monitor kit.
2. Prepare PC with Subaru Select Monitor installed.
3. Connect the USB cable between SDI (Subaru Diagnosis Interface) and USB port on the personal computer (dedicated port for the Subaru Select Monitor).
NOTE: The dedicated port for the Subaru Select Monitor means the USB port which was used to install the Subaru Select Monitor.
4. Connect the diagnosis cable to SDI.

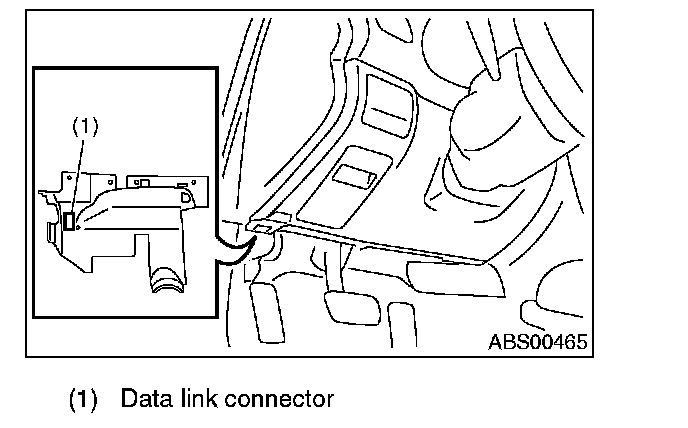

5. Connect SDI to data link connector located in the lower portion of the instrument panel (on the driver's side).
CAUTION: Do not connect scan tools other than the Subaru Select Monitor.
6. Start the PC.
7. Turn the ignition switch to ON (engine OFF.and run the "PC application for Subaru Select Monitor".
NOTE: For detailed operation procedures, refer to the "PC application help for Subaru Select Monitor".
8. If communication is not possible between the ABS and the Subaru Select Monitor, check the communication circuit.
READ CURRENT DATA
1. On the [Main Menu] display, select the (Each System Check).
2. On the [System Selection Menu] display, select the (Brake Control System}.
3. Click the [OK] button after the {ABS} is displayed.
4. On the [Brake Control Diagnosis] display, select the (Current Data Display & Save}.
5. On the [Data Display Menu] display, select the data display method.
6. Using the scroll key, scroll the display screen up or down until necessary data is shown.

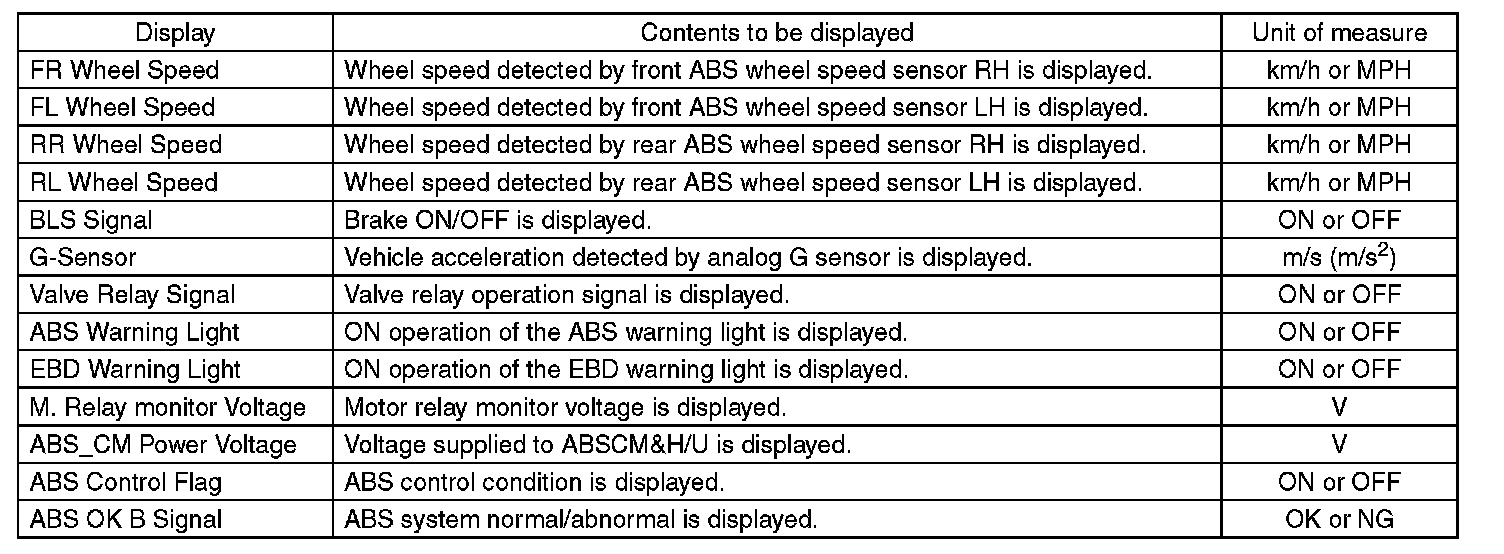

A list of the support data is shown in the following table.
NOTE: For detailed operation procedures, refer to the "PC application help for Subaru Select Monitor".

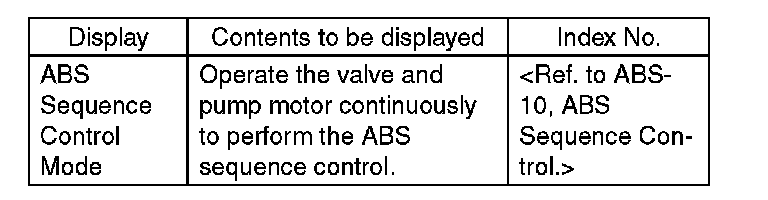

ABS SEQUENCE CONTROL

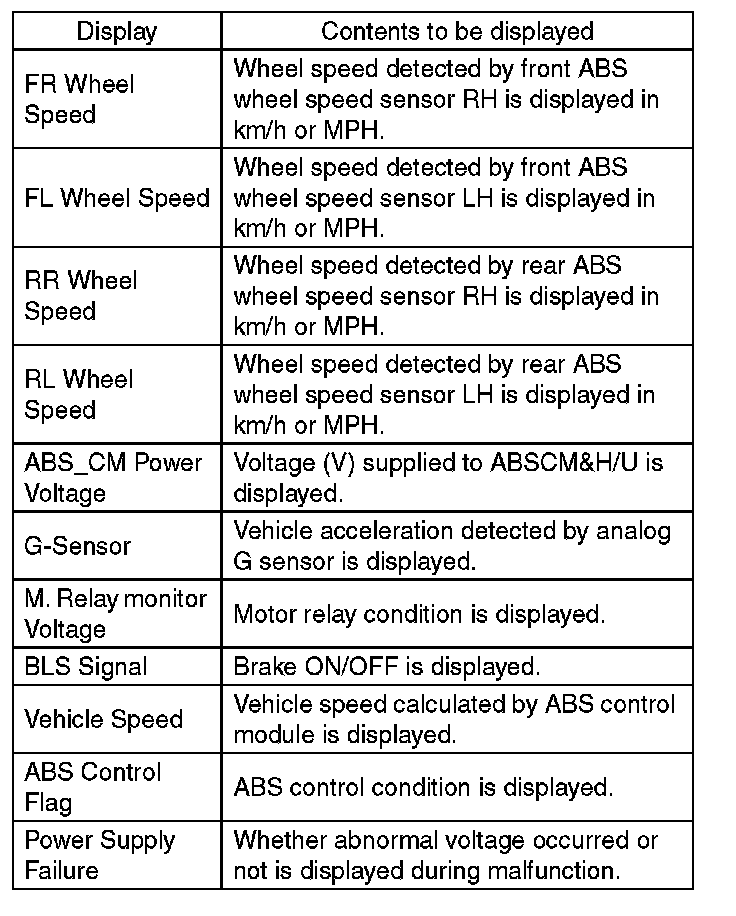

FREEZE FRAME DATA
NOTE:
^ Data stored at the time of trouble occurrence is shown on display.
^ Each time a trouble occurs, the latest information is stored in the freeze frame data in memory.
^ Up to 3 freeze frame data will be stored.
^ If freeze frame data is not stored in memory properly (due to a drop in ABS control module power supply etc.), a DTC suffixed with a question mark "?" is displayed on Subaru Select Monitor display screen. This shows it may be an unreliable reading.
