With VDC

Read Diagnostic Trouble Code(DTC)
OPERATION
1. On the [Main Menu] display, select the (Each System Check).
2. On the [System Selection Menu] display, select the (Brake Control System}.
3. Click the [OK] button after the (VDC) is displayed.
4. On the [Brake Control Diagnosis] display, select the (Diagnostic Code(s) Display}.
5. Record the DTC and data.

NOTE:
^ For detailed operation procedure, refer to the "PC application help for Subaru Select Monitor".
^ For details concerning DTCs, refer to "List of Diagnostic Trouble Code (DTC)".

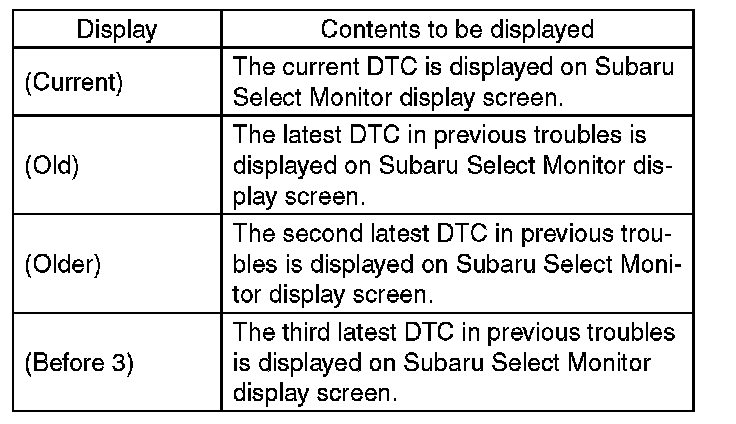

^ Up to 3 DTCs are displayed in the order of detection.
^ If a particular DTC is not stored in memory properly at the occurrence of problem (due to a drop in VDCCM&H/U power supply etc.), the DTC suffixed with a question mark "?" is displayed on Subaru Select Monitor display screen. This shows it may be an unreliable reading.





Inspection Mode
PROCEDURE
Reproduce the malfunction occurrence condition as much as possible.
Drive the vehicle at least ten minutes.

NOTE: Make sure the vehicle is not dragged to one side under usual driving condition.

Clear Memory Mode
OPERATION
1. On the [Main Menu] display, select the (Each System Check).
2. On the [System Selection Menu] display, select the (Brake Control System}.
3. Click the [OK] button after the (VDC) is displayed.
4. On the [Brake Control Diagnosis] display, select the (Clearing Memory}.
5. When the "Clear Memory?" is shown on the screen, click the [Yes] button.
6. When "Done" and "Turn off the ignition switch." are shown on the display screen, turn the ignition switch to OFF.

NOTE: For detailed operation procedure, refer to the "PC application help for Subaru Select Monitor".
