Glass Lid

GLASS LID

REMOVAL

1. SEDAN MODEL
1. Completely close the glass lid, and then open the sunshade

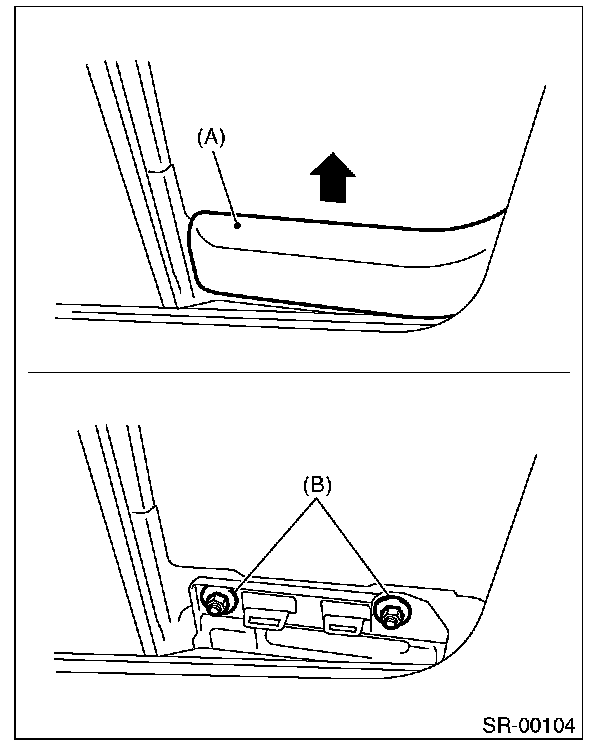

2. Remove the cover (A), and then remove the TORX(R) bolts (B).

CAUTION: The thread locker is applied to the TORX(R) bolts, so use the new parts once they are removed.







3. Remove the glass lid carefully.

2. WAGON MODEL (FRONT)
1. Open the sunshade.

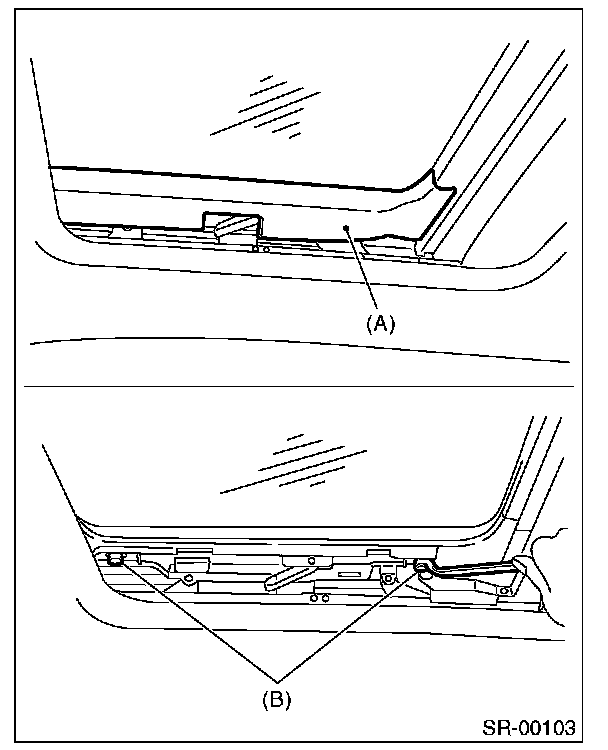

2. Pull out the cover (A) towards the arrow mark, and remove the nuts (B).







3. Remove the glass lid (front) carefully.

3. WAGON MODEL (REAR)
1. Tilt the glass lid (front) up, then open the sunshade.

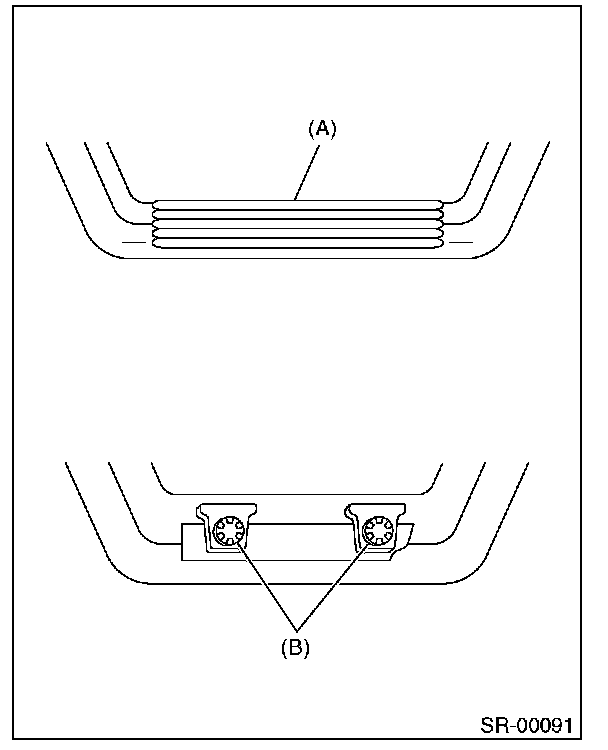

2. Remove the cover (A), then remove the nuts (B).







3. Remove the glass lid carefully.

INSTALLATION

Install in the reverse order of removal.
