GLASS LIDFORCED DRIVE
CAUTION: After a forced operation, make sure to perform an initialize operation. [Ref. to INSPECTION, Sunroof Control System.]
If the glass lid does not operate or is not supplied with power, move the glass lid using the hexagon wrench.
Sedan model: bolt width 4 mm (0.16 in)
Wagon model: bolt width 5 mm (0.20 in)
1. SEDAN MODEL
1. Remove the spot map light.

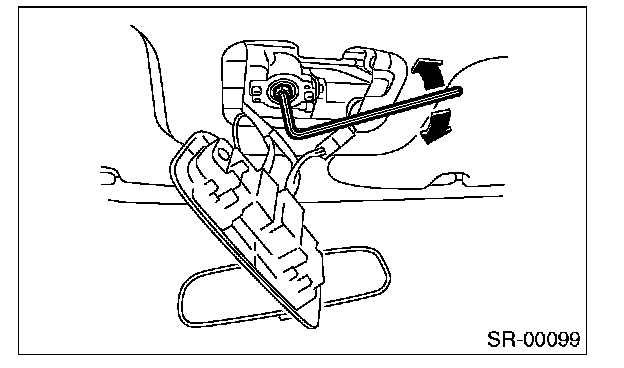

2. Insert the hexagon wrench securely until it touches the motor shaft end.

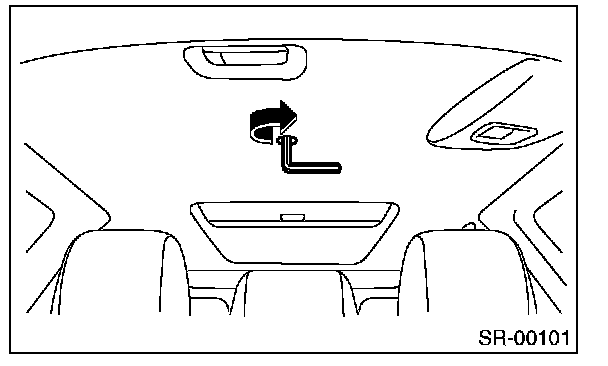

3. Turn the hexagon wrench, and move the glass lid.
- Turning right, the glass lid open.
- Turning left, the glass lid close.
CAUTION: Be careful not to damage the adjacent parts with the rod end when moving the glass lid with the hexagon wrench.
2. WAGON MODEL

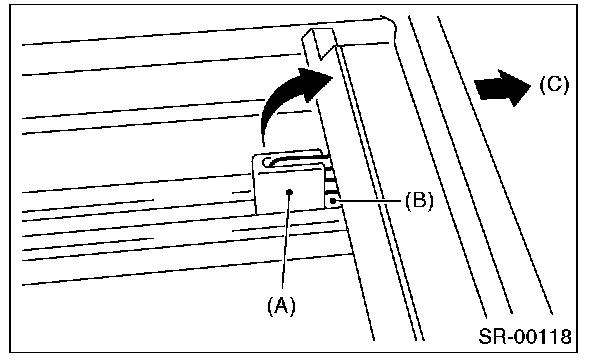

1. Slide the slider (A) towards the rear of the vehicle (C), and remove the sun shade from the slider by raising the rod (B).
2. Slide the sunshade forward.
3. Remove the plug to the rear of the roof trim.
4. Insert the hexagon wrench securely until it touches the motor shaft end.
5. Turn the wrench to right, and close the glass lid (front and rear).
CAUTION: Be careful not to damage the adjacent parts with the rod end when moving the glass lid with the hexagon wrench.
