Sunroof / Moonroof Panel: Adjustments

GLASS LID

ADJUSTMENT

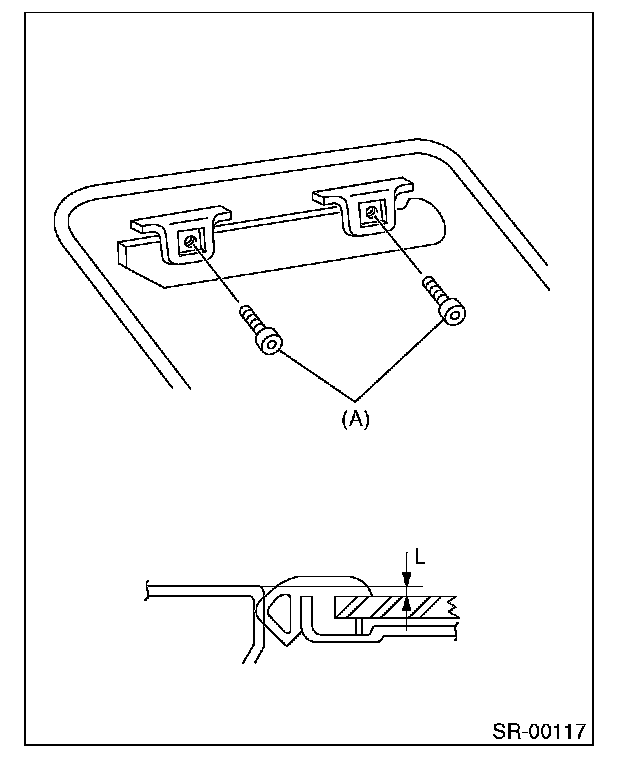

1. SEDAN MODEL
Loosen the glass lid mounting TORX(R) bolts (A), and then adjust the height with moving the lid.

Difference in height between glass lid and roof panel L:
2.0 ±1.0 mm (0.079 ± 0.039 in)

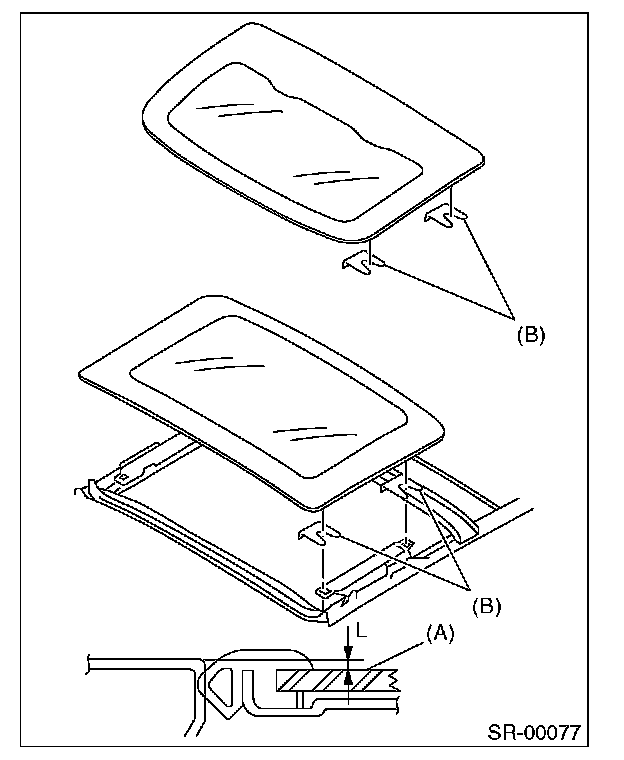

2. WAGON MODEL
Loosen the glass lid installation nuts, and adjust the height by adding (max: four pieces) or extracting (min: zero piece) shims (B) (standard: two pieces) between the glass lid (A) and body.

Difference in height between glass lid and roof panel L:
2.0 ±1.0 mm (0.079 ± 0.039 in)
